Components [08/2014 - ]: Illustration

Fig 1: Seat Belt Control ECU Replacement Components (1 Of 3)
GTY522532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Seat Belt Control ECU Replacement Components With Torque Specifications (2 Of 3)
GTY531450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

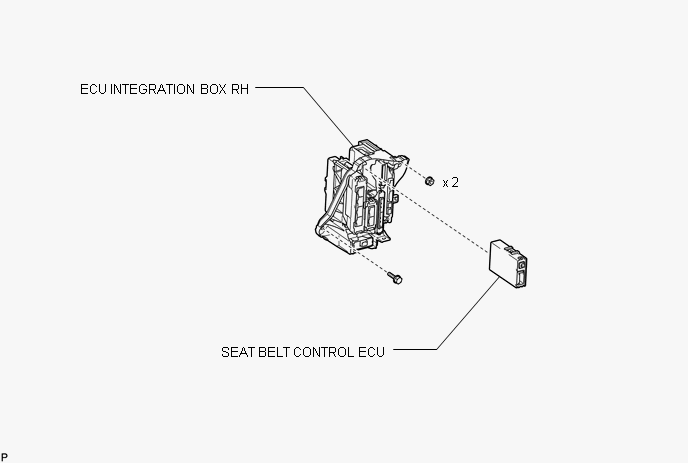

Fig 1: Seat Belt Control ECU Replacement Components (3 Of 3)
GTY527654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
