Components [09/2015 - ]: Illustration

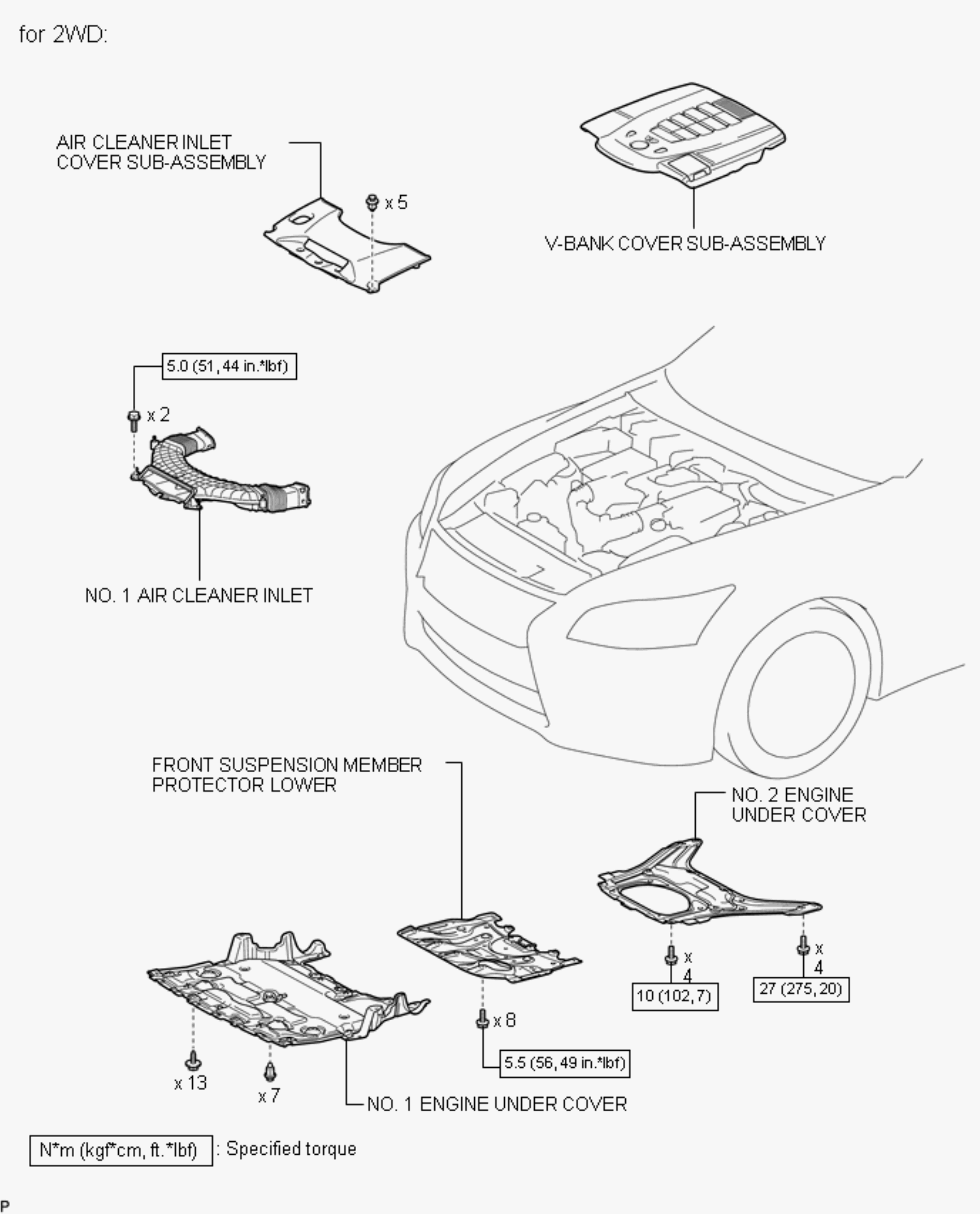

Fig 1: Charging System Component Location With Torque Specifications (1 Of 4)
GTY612070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

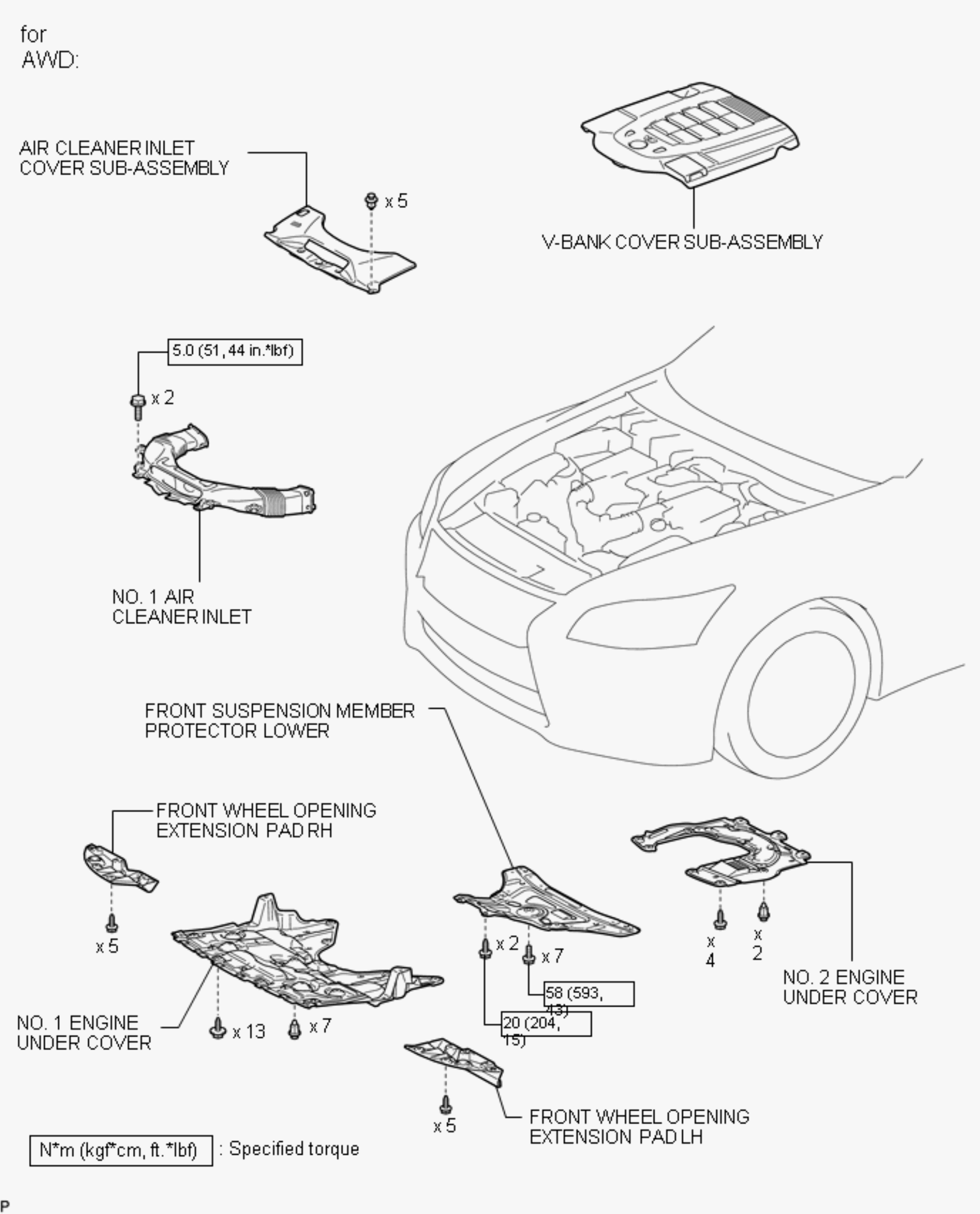

Fig 1: Charging System Component Location With Torque Specifications (2 Of 4)
GTY642086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

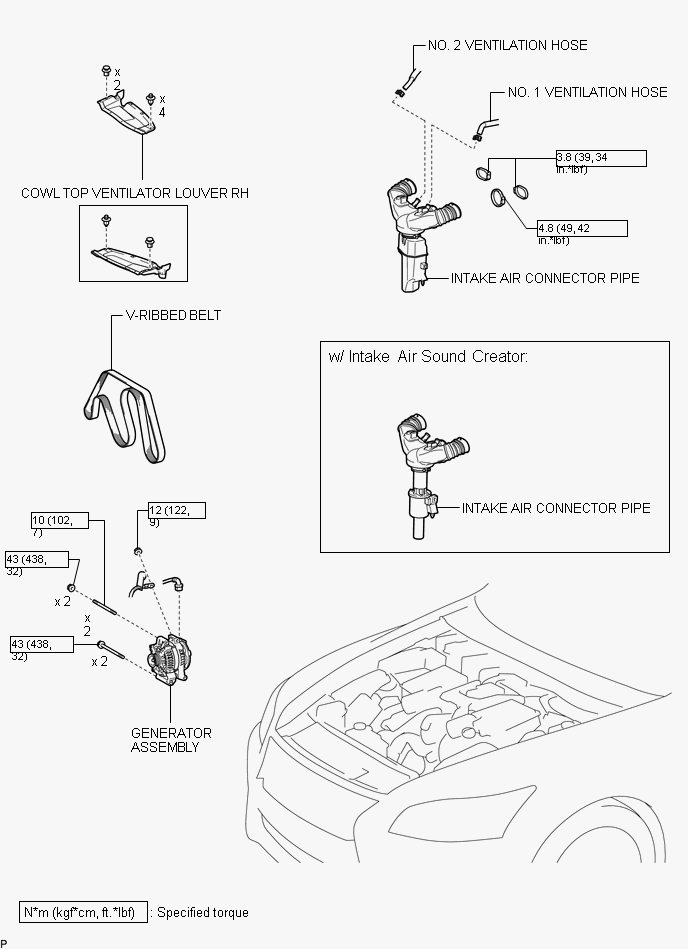

Fig 1: Charging System Component Location With Torque Specifications (3 Of 4)
GTY666396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

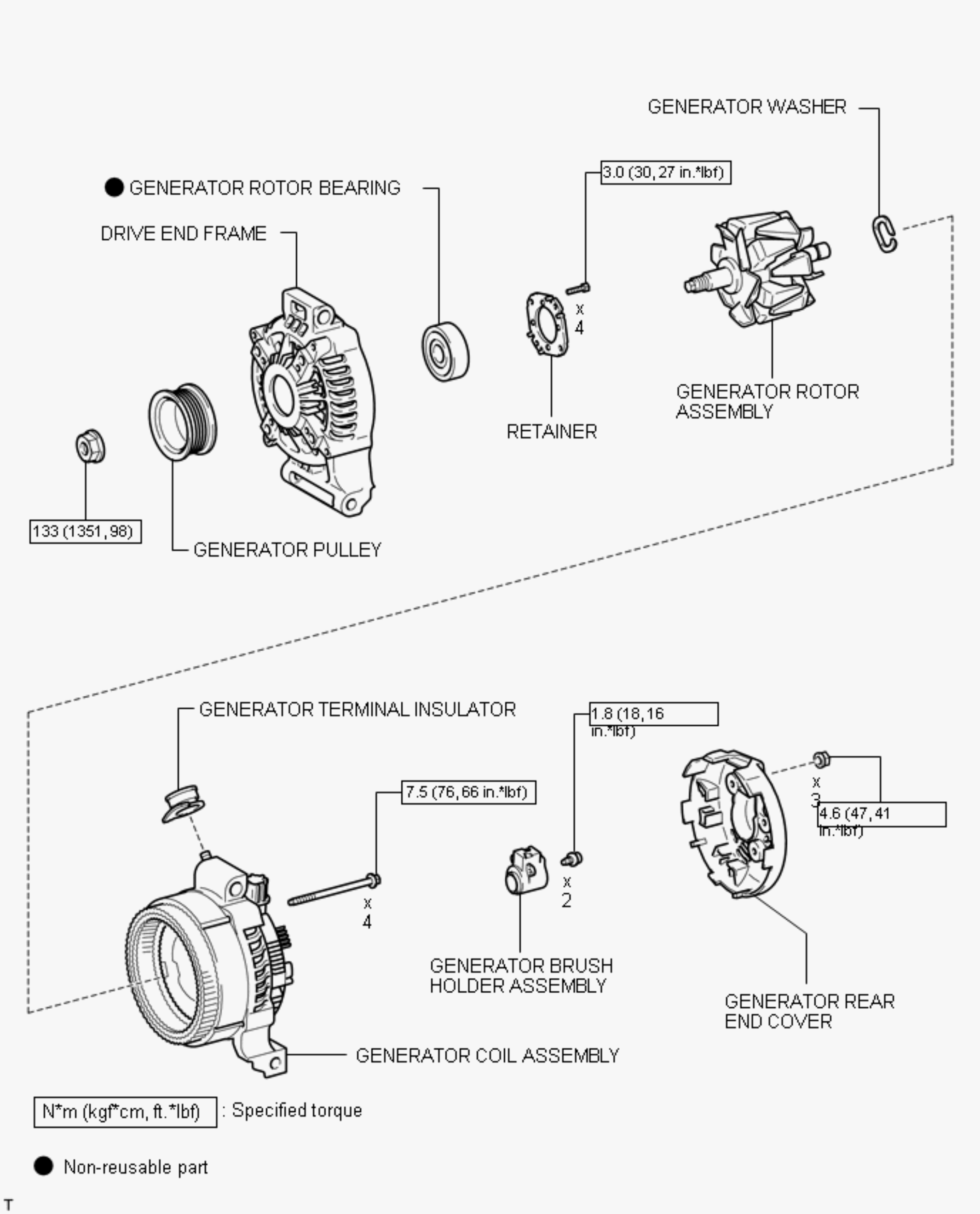

Fig 1: Charging System Component Location With Torque Specifications (4 Of 4)
GTY615034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
