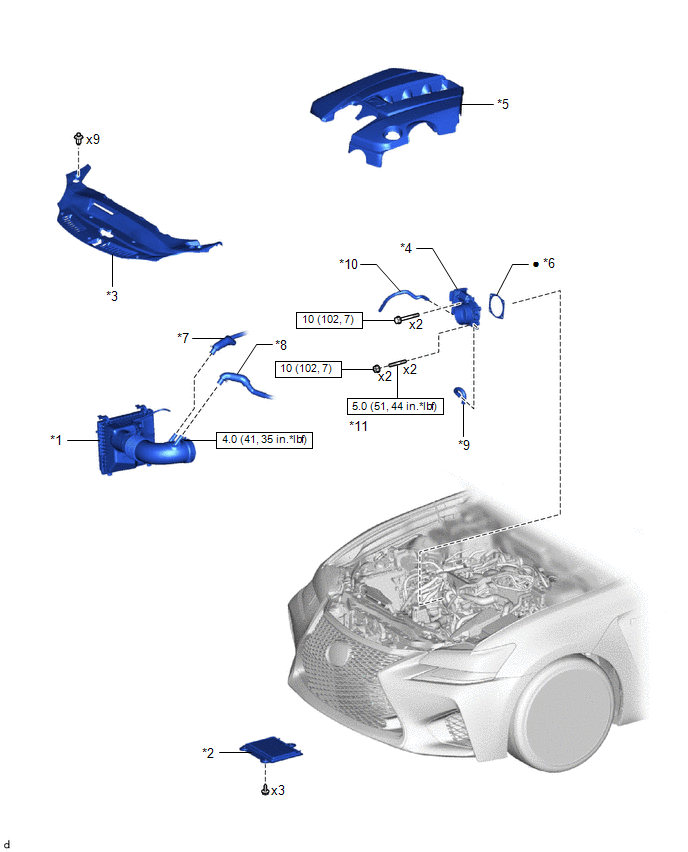

Components [10/2015 - ]: Illustration
| Callout | Description | Callout | Description |
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | CENTER NO. 4 ENGINE UNDER COVER |
| *3 | COOL AIR INTAKE DUCT SEAL | *4 | THROTTLE BODY WITH MOTOR ASSEMBLY |
| *5 | V-BANK COVER SUB-ASSEMBLY | *6 | THROTTLE BODY GASKET |
| *7 | NO. 2 VENTILATION HOSE | *8 | NO. 3 VENTILATION HOSE |
| *9 | NO. 4 WATER BY-PASS HOSE | *10 | NO. 5 WATER BY-PASS HOSE |
| *11 | STUD BOLT | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
