Removal [10/2015 - ]: Procedure

  1. REMOVE INSTRUMENT CENTER CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE ENGINE SWITCH

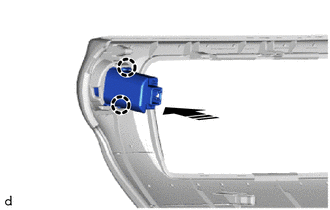

    1. Disengage the 2 claws and remove the engine switch from the instrument center cluster finish panel sub-assembly.
      GTY683717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
