Skid Control Buzzer Circuit: Procedure

1. Turn the engine switch off.
2. Connect the Techstream to the DLC3.
3. Turn the engine switch on (IG).
4. Turn the Techstream on.
5. Enter the following menus: Chassis / ABS/VSC/TRAC / Active Test.
   ABS/VSC/TRAC



   Tester Display	Test Part	Control Range	Diagnostic Note
   DSS Signal Buzzer	Skid control buzzer	Buzzer ON/OFF	The buzzer can be heard.

6. Check that the skid control buzzer sounds/stops when turning the skid control buzzer on/off by using the Techstream.
   RESULT



   Result	Proceed to
   Buzzer does not sound or sounds constantly	A
   Buzzer sounds/stops	B

B → See step   6

A: Go to next step

1. Turn the engine switch off.
2. Disconnect the skid control buzzer assembly connector.
3. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   E5-2 (IG1) - Body ground	Engine switch on (IG)	11 to 14 V

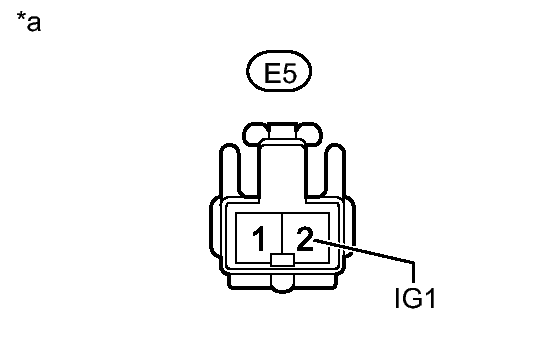

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Skid Control Buzzer Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the skid control buzzer assembly. Refer to REMOVAL [01/2012 - ] .
2. Apply battery voltage to the skid control buzzer, and check that the buzzer sounds.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   Measurement Condition	Specified Condition
   Battery positive (+) voltage - Terminal 2 (IG1)	Skid control buzzer sounds
   Battery negative (-) voltage - Terminal 1 (BZ)

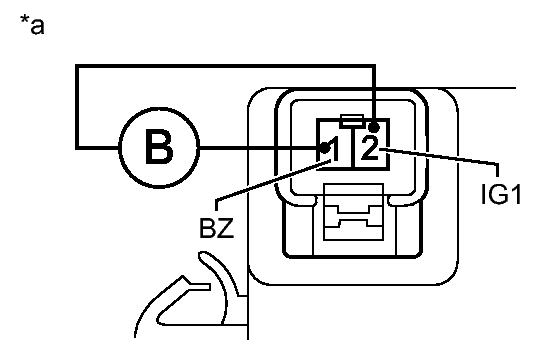

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Skid Control Buzzer Assembly)

NG → See step   7

OK: Go to next step

1. Turn the engine switch off.
2. Disconnect the A24 skid control ECU (master cylinder solenoid) connector.
3. Disconnect the E5 skid control buzzer assembly connector.
4. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A24-30 (BZ) - E5-1 (BZ)	Always	Below 1 Ω
   A24-30 (BZ) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   5
