Components [09/2012 - ]: Illustration

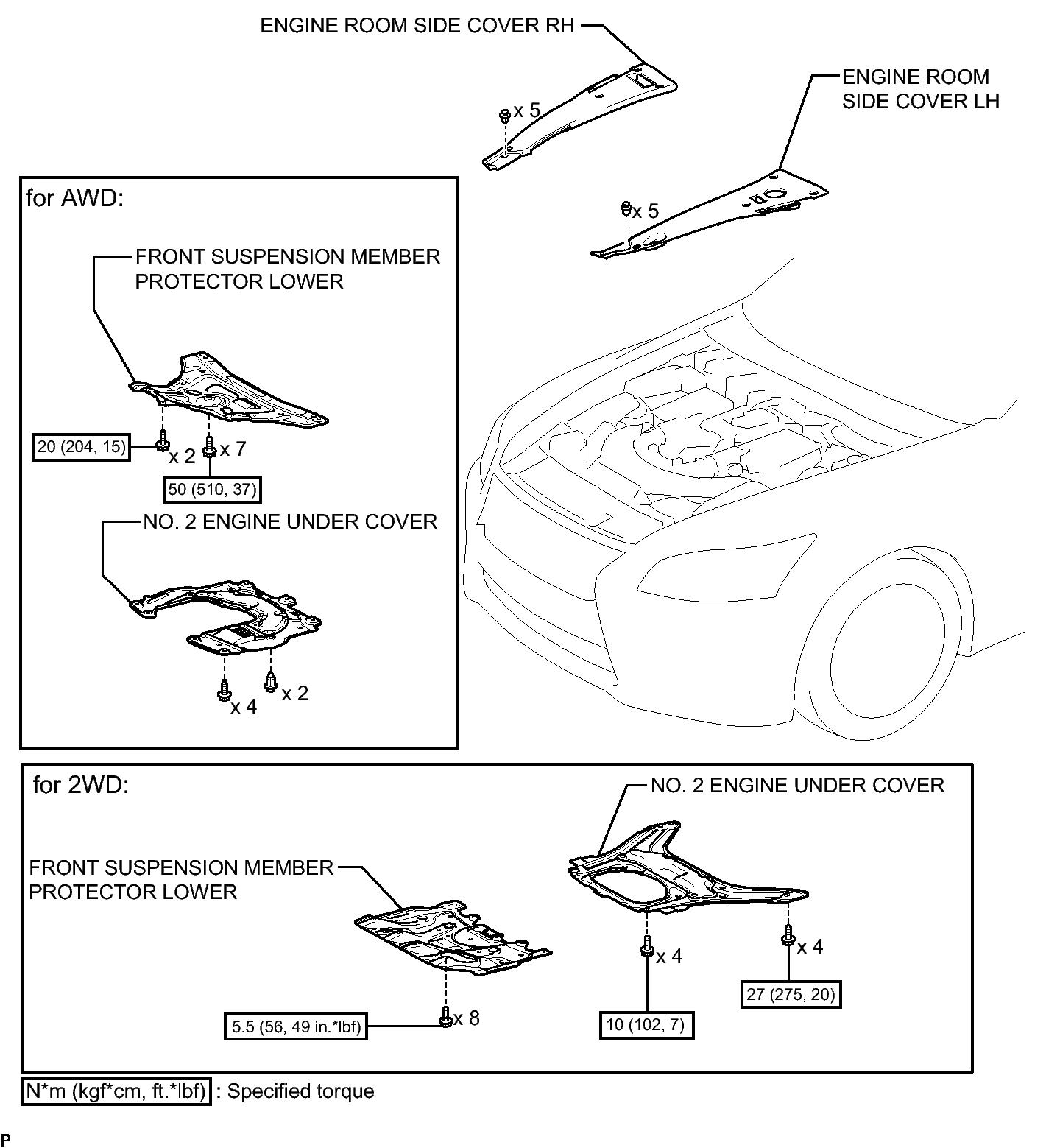

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (1 Of 3)
GTY413200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (2 Of 3)
GTY418192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

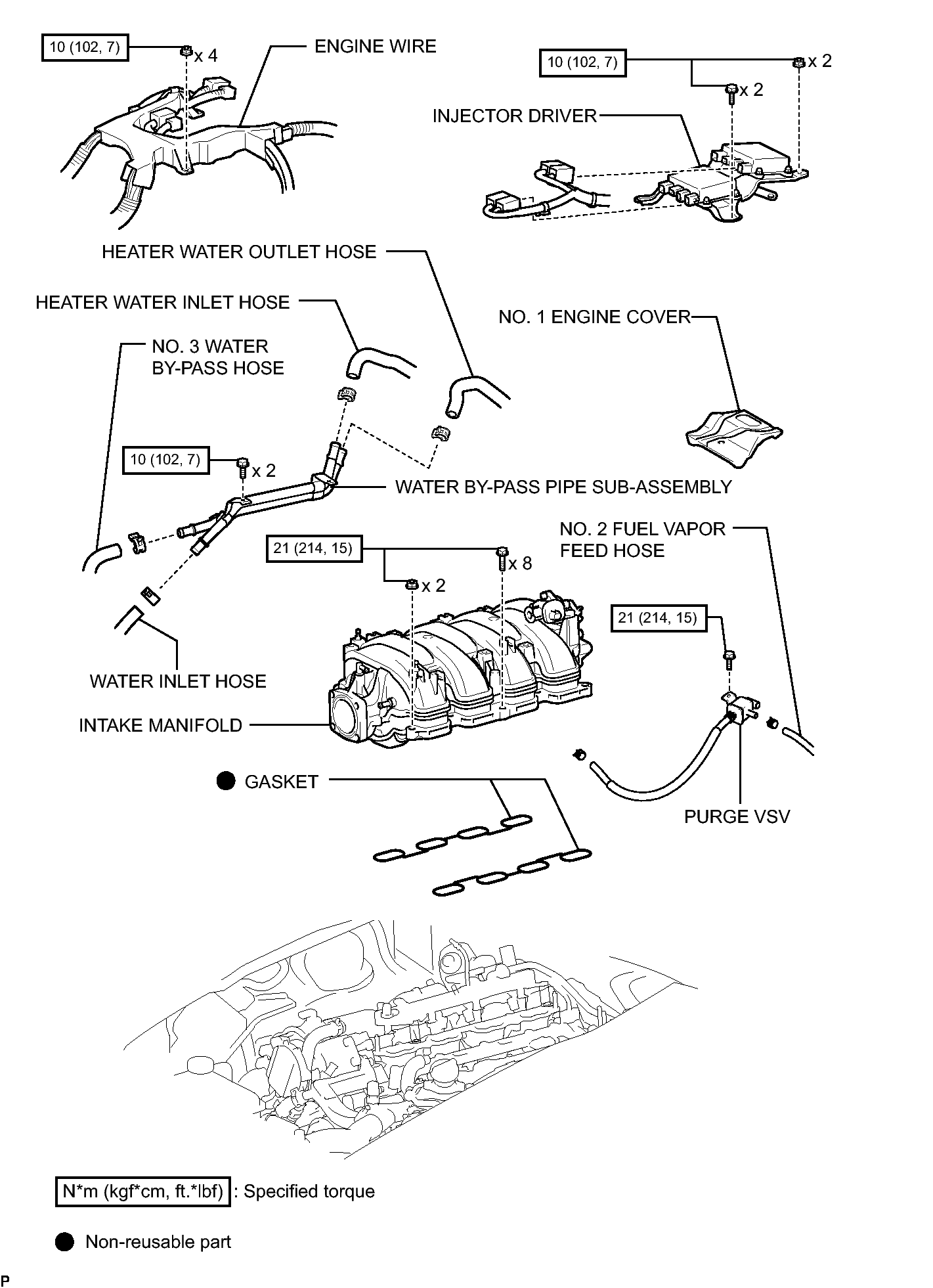

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (3 Of 3)
GTY416635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
