Seat Heater (Rear): Notes

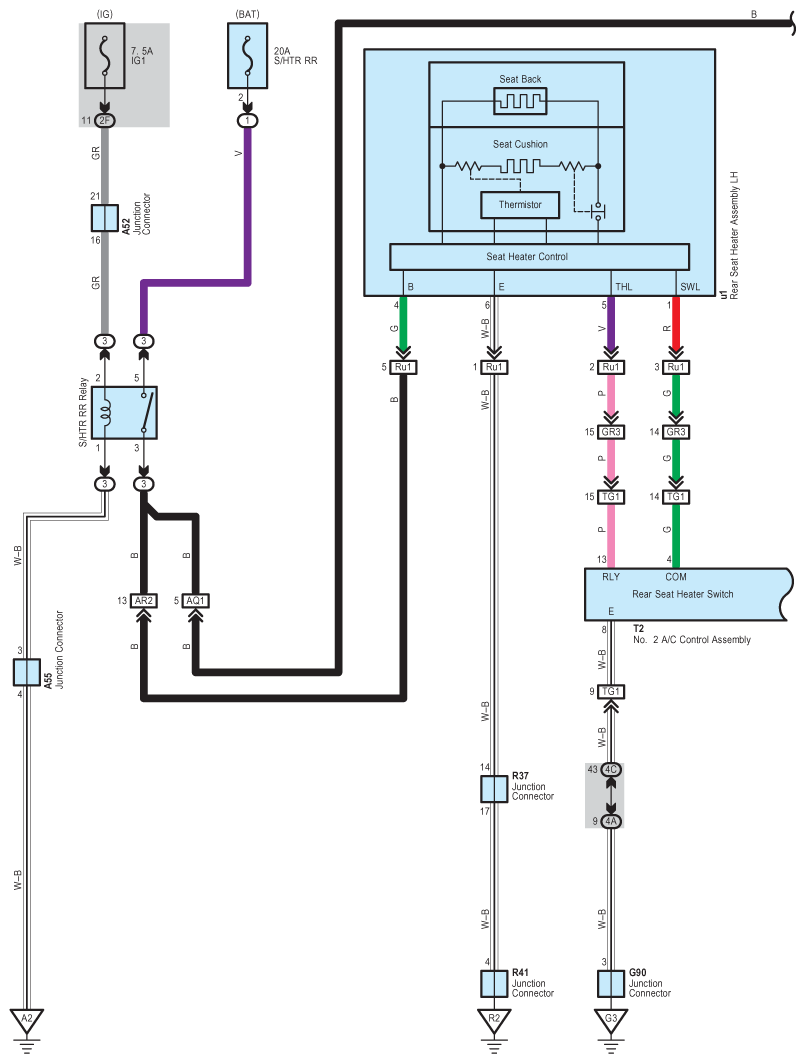

Fig 1: Rear Seat Heater - Wiring Diagram (1 Of 2)
G09114741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

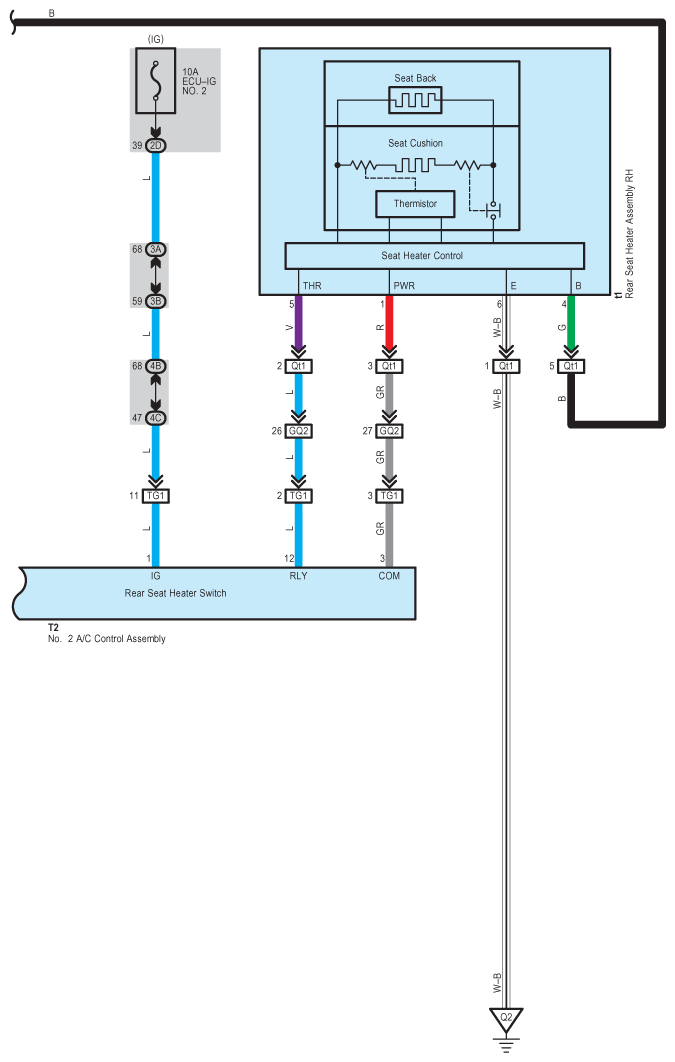

Fig 2: Rear Seat Heater - Wiring Diagram (2 Of 2)
G09114742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
