HV Relay Assembly: Components: Illustration

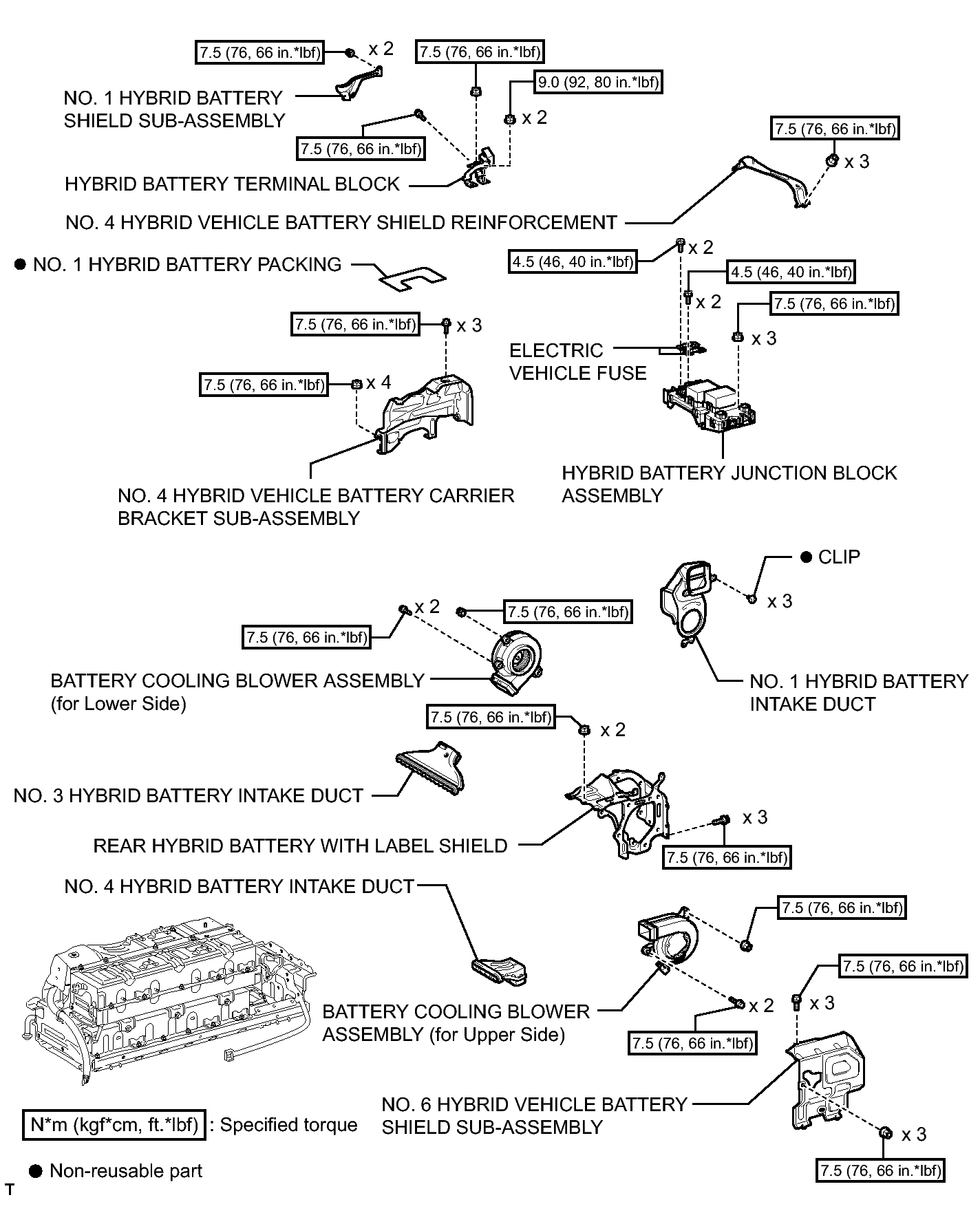

Fig 1: Identifying HV Relay Assembly Replacement Components With Torque Specifications

GTY260649

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
