Brake Actuator: Disposal: Disposal

  1. DISPOSE OF BRAKE ACCUMULATOR PUMP
    1. Using a drill, slowly make a hole at the circumference of the inner circle of the caution label and discharge the gas.

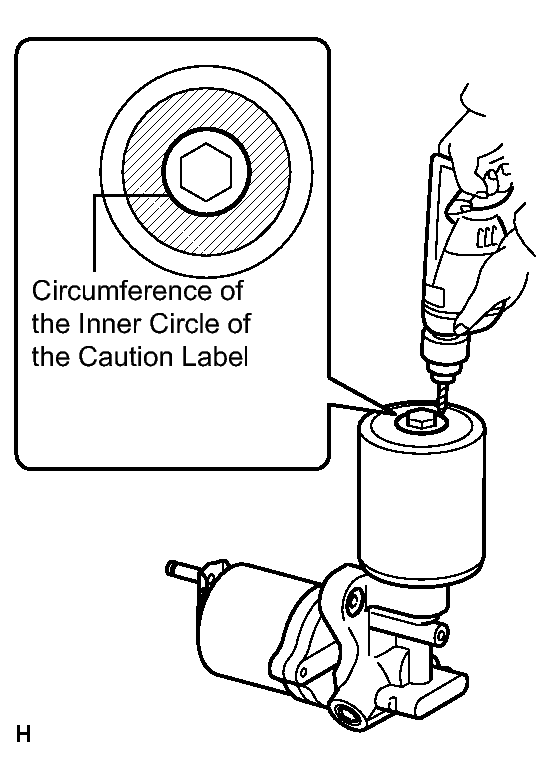

      Fig 1: Drilling Hole Of Brake Accumulator Pump
      GTY121076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WARNING:

      Be sure to wear protective glasses as fragments may fly out due to pressure.

      HINT:

      • Drill the hole approximately 10 mm (0.394 in.) deep.
      • The gas is nitrogen which is colorless, odorless, and harmless.
