Brake Pedal Stroke Sensor: Removal: Removal

NOTE: While the battery is connected, even if the power switch is off, the brake control system activates when the brake pedal is depressed or any door courtesy switch is turned on. Therefore, when servicing the brake system components, do not depress the brake pedal or open/close the doors while the battery is connected.

PRECAUTION
WARNING: Be sure to read Precaution thoroughly before servicing. Refer to PRECAUTION .
REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
HINT:

Refer to the procedure up to Remove Driver Side Knee Airbag Assembly. Refer to REMOVAL .
REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY
1. Disconnect the brake pedal stroke sensor assembly connector.

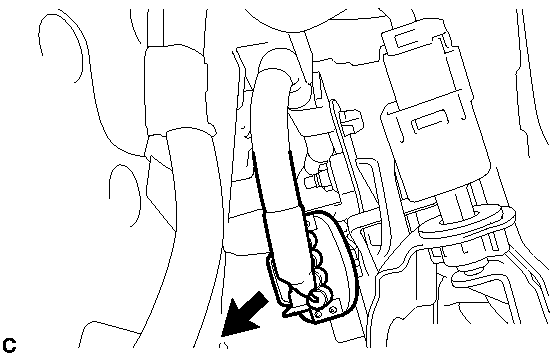

  Fig 1: Identifying Brake Pedal Stroke Sensor Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 nuts and brake pedal stroke sensor assembly.

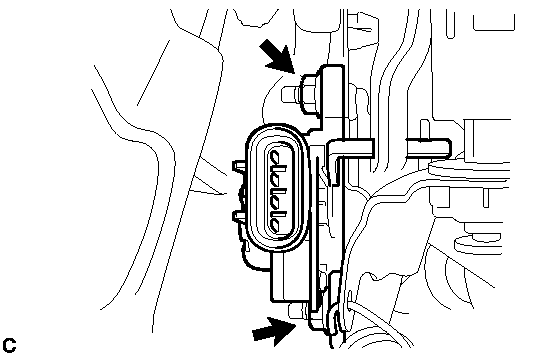

  Fig 2: Identifying Nuts And Brake Pedal Stroke Sensor Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not drop the brake pedal stroke sensor assembly. If the brake pedal stroke sensor assembly has been dropped, replace the brake pedal stroke sensor assembly with a new one.
