Front Console Box: Components: Illustration

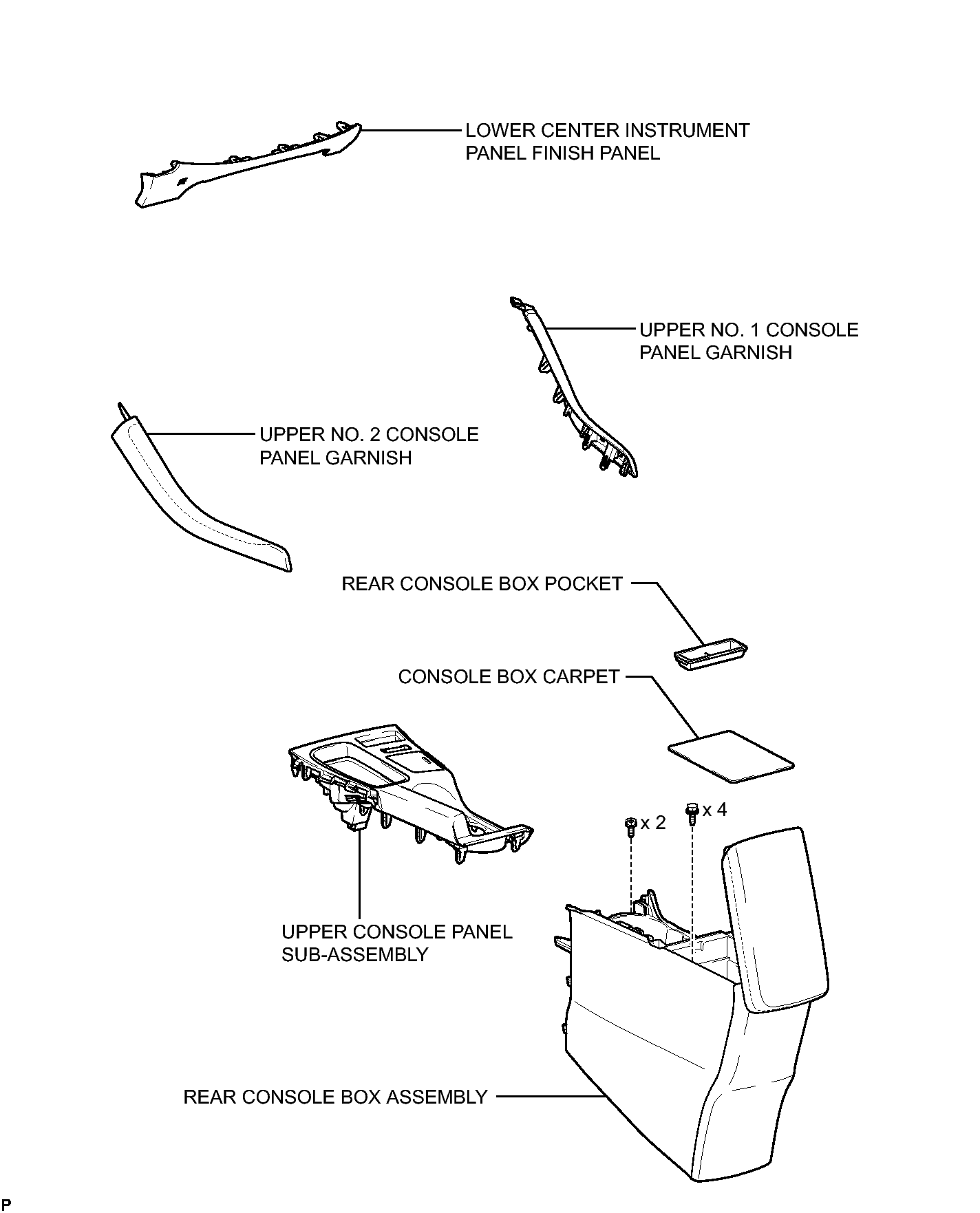

Fig 1: Identifying Front Console Box Replacement Components (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

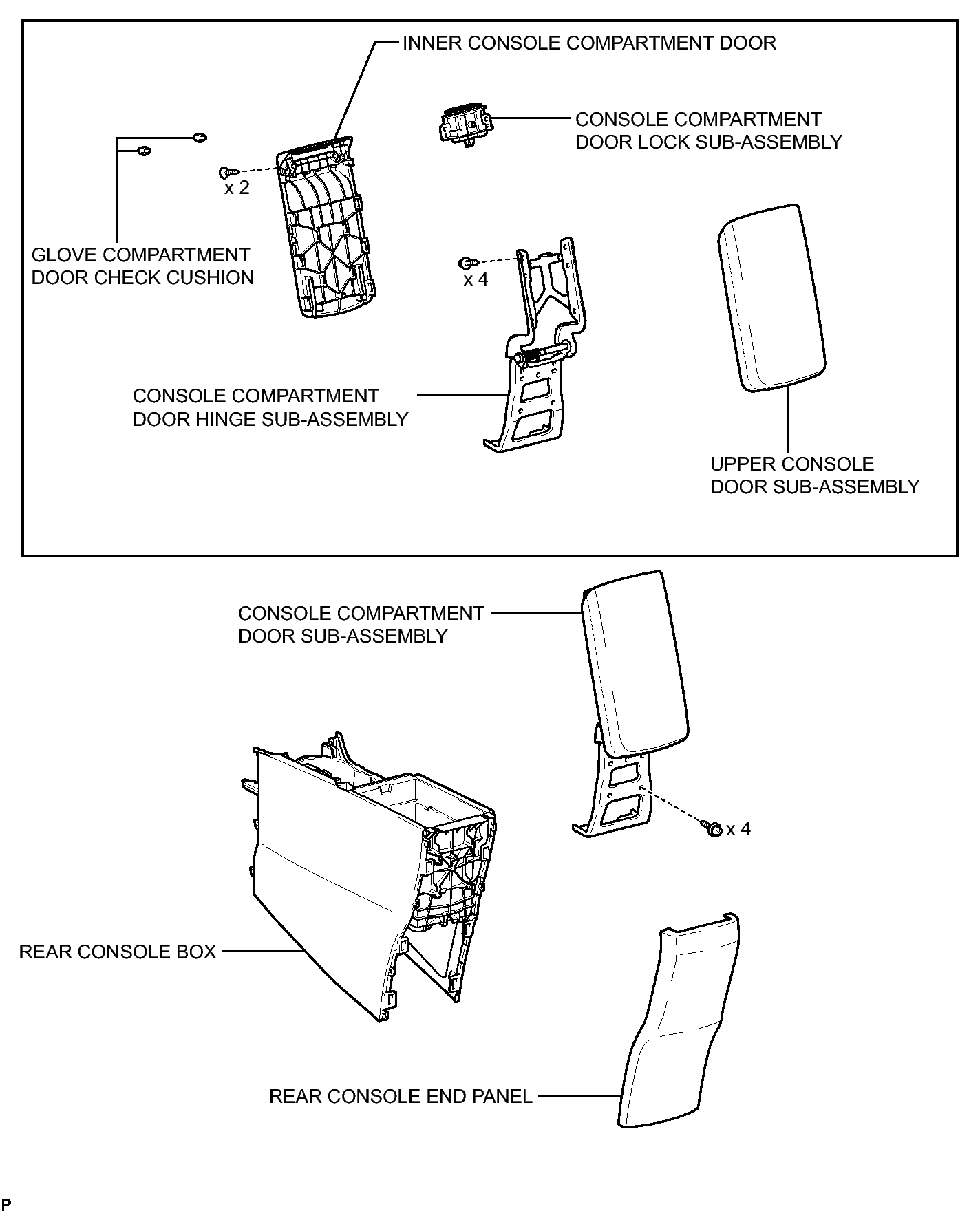

Fig 1: Identifying Front Console Box Replacement Components (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
