Electric Tension Reducer: Notes

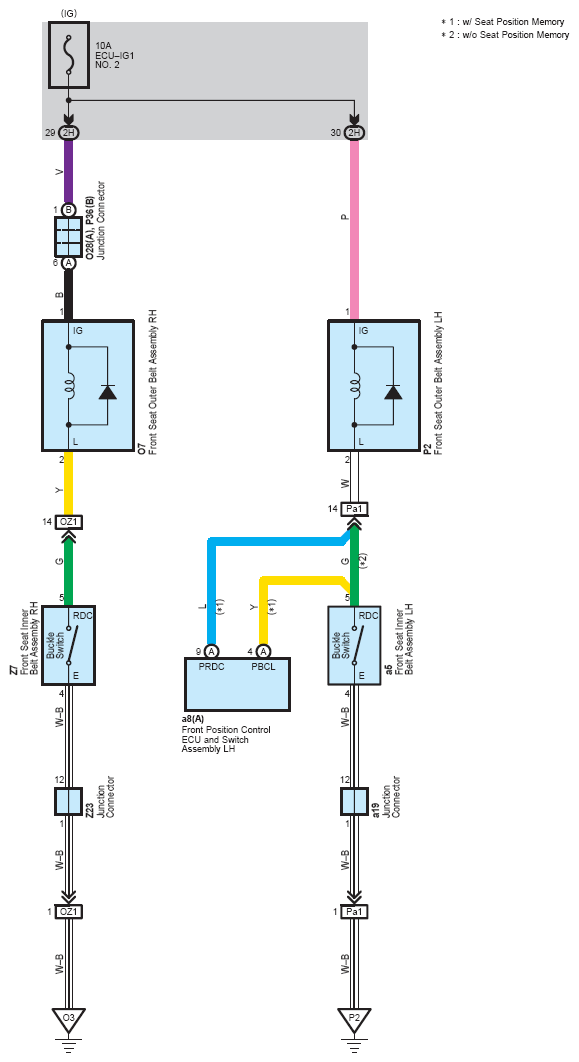

Fig 1: Electric Tension Reducer - Circuit Diagram

G07605487

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
