Fuel Lid Opener: Notes

WARNING: This page is about a different car, the 2010 Lexus RX 450h. However, it is still accessible from the selected car via links, so may be relevant.

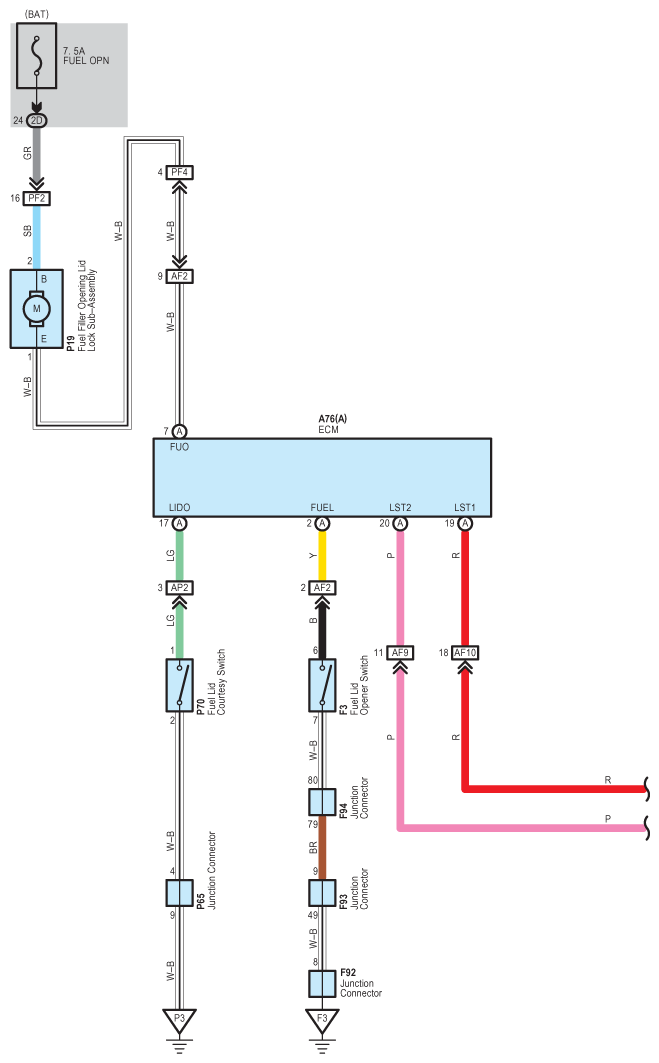

Fig 1: Fuel Lid Opener - Circuit Diagram (1 Of 2)
G07574547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

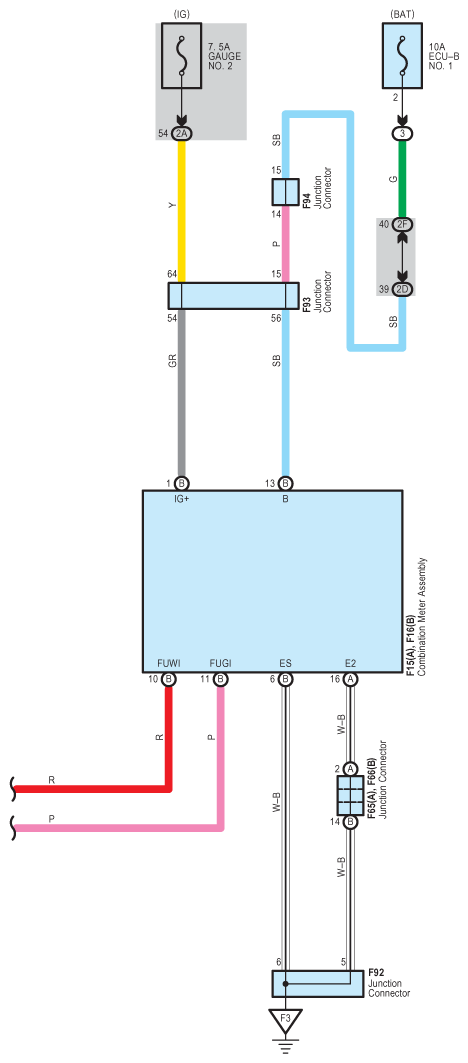

Fig 2: Fuel Lid Opener - Circuit Diagram (2 Of 2)
G07574548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
