Skid Control Ecu: Components: Illustration

Fig 1: Identifying Skid Control ECU Replacement Components (1 Of 2)
GTY270589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

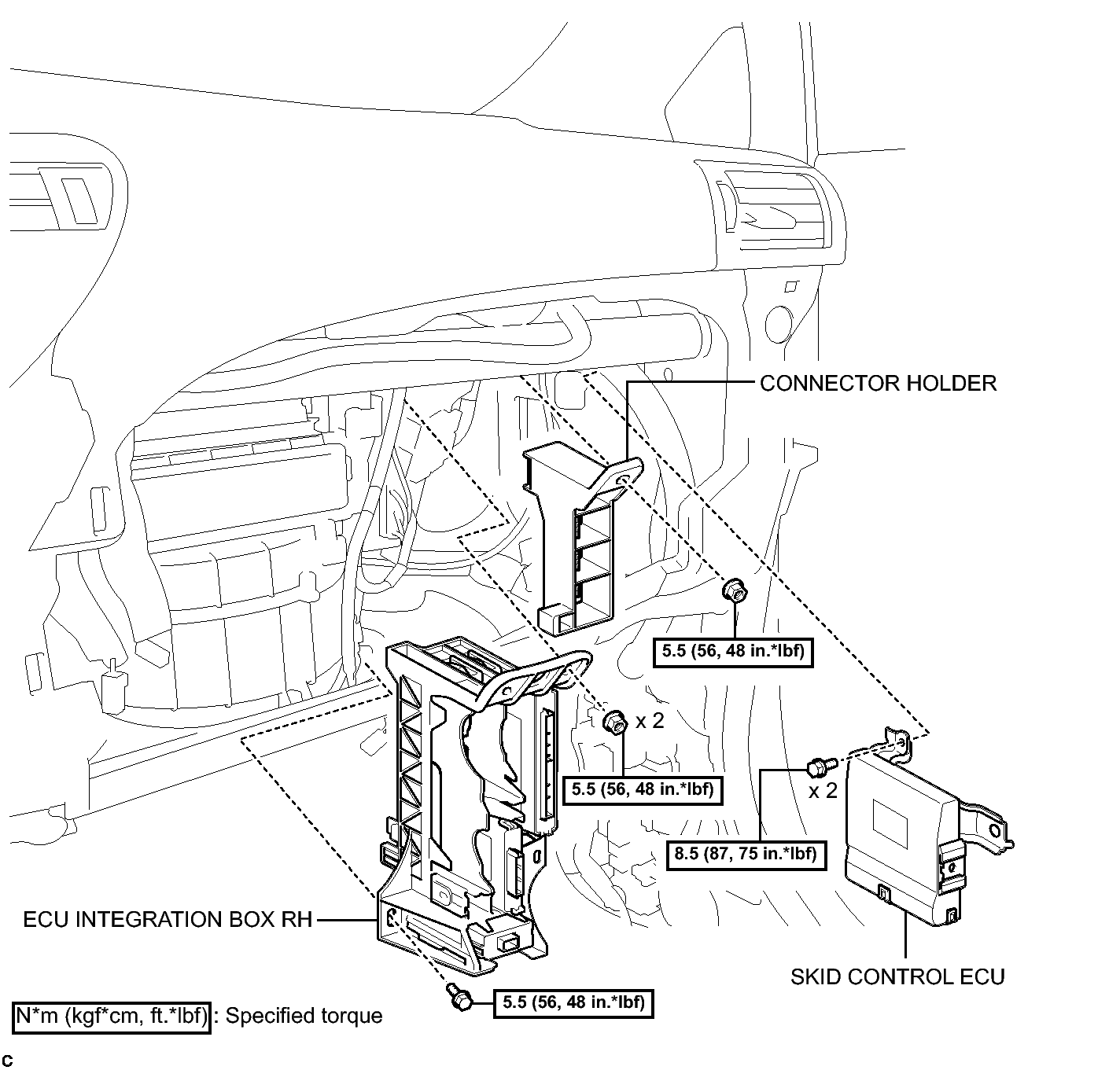

Fig 1: Identifying Skid Control ECU Replacement Components With Torque Specifications (2 Of 2)
GTY262133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
