Power Window Master Switch: Installation: Installation

INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
1. Install the master switch with the 3 screws.

  Fig 1: Identifying Master Switch Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT UPPER ARMREST BASE PANEL LH
1. Connect the connector.
2. Attach the 5 claws to install the armrest base panel.

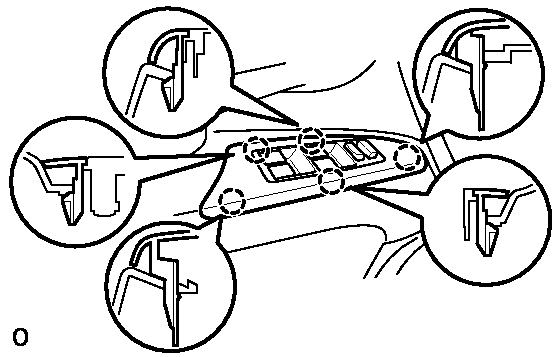

  Fig 2: Identifying Armrest Base Panel Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
