Floor Shift Assembly: Disassembly: Disassembly

REMOVE SHIFT POSITION INDICATOR

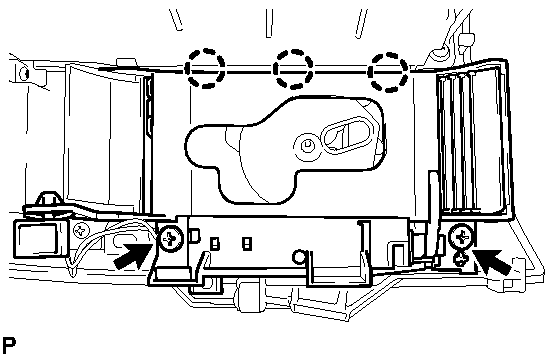

Fig 1: Locating Shift Position Indicator And Screw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 screws and detach the 3 hooks. Then remove the shift position indicator from the rear console upper panel.
REMOVE CONTROL POSITION INDICATOR PLATE

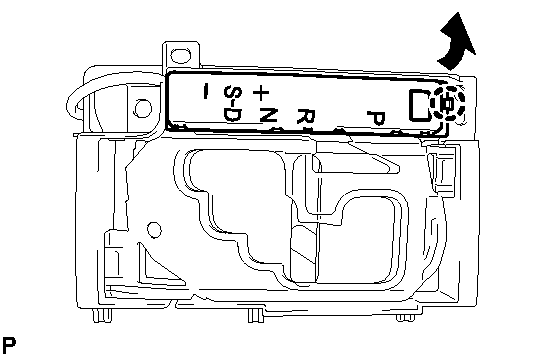

Fig 2: Removing Control Position Indicator Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a small screwdriver, detach the claw and remove the indicator plate.
REMOVE SHIFT LEVER CAP
1. Detach the 2 claws and remove the shift lever cap.
REMOVE POSITION INDICATOR LENS

Fig 3: Identifying Position Indicator Lens Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a small screwdriver, detach the 4 claws and remove the lens from the shift position indicator.
REMOVE POSITION INDICATOR SLIDE COVER

Fig 4: Identifying Position Indicator Slide Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the position indicator slide cover from the shift position indicator.
2. Remove the No. 2 slide cover from the slide cover.
REMOVE SHIFT LOCK RELEASE BUTTON

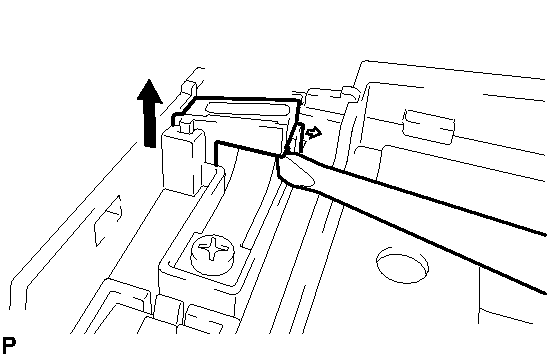

Fig 5: Removing Shift Lock Button
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a small screwdriver, detach the claw and remove the button.
REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY

Fig 6: Identifying Indicator Light Wire Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Detach the connector clamp.
2. Using a small screwdriver, detach the 2 claws and remove the wire.
