Climate Control Seat (Rear Passenger's Seat): Notes

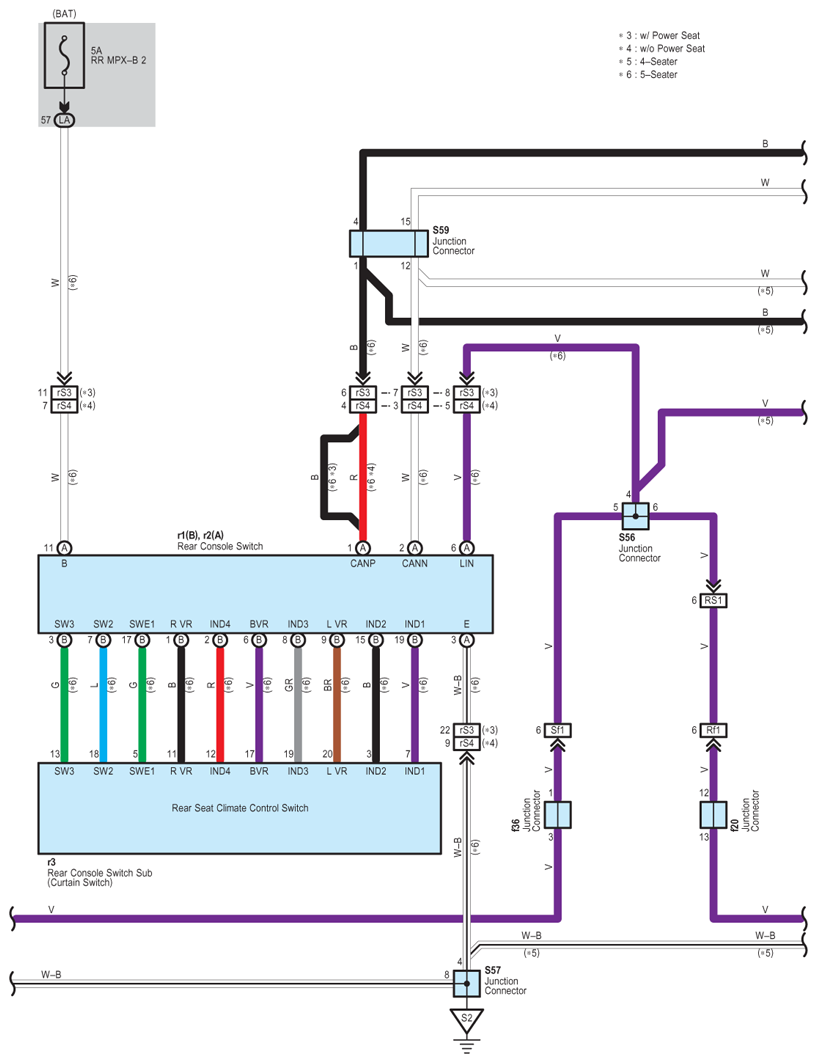

Fig 1: Climate Control Seat (Rear Passenger's Seat) - Circuit Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

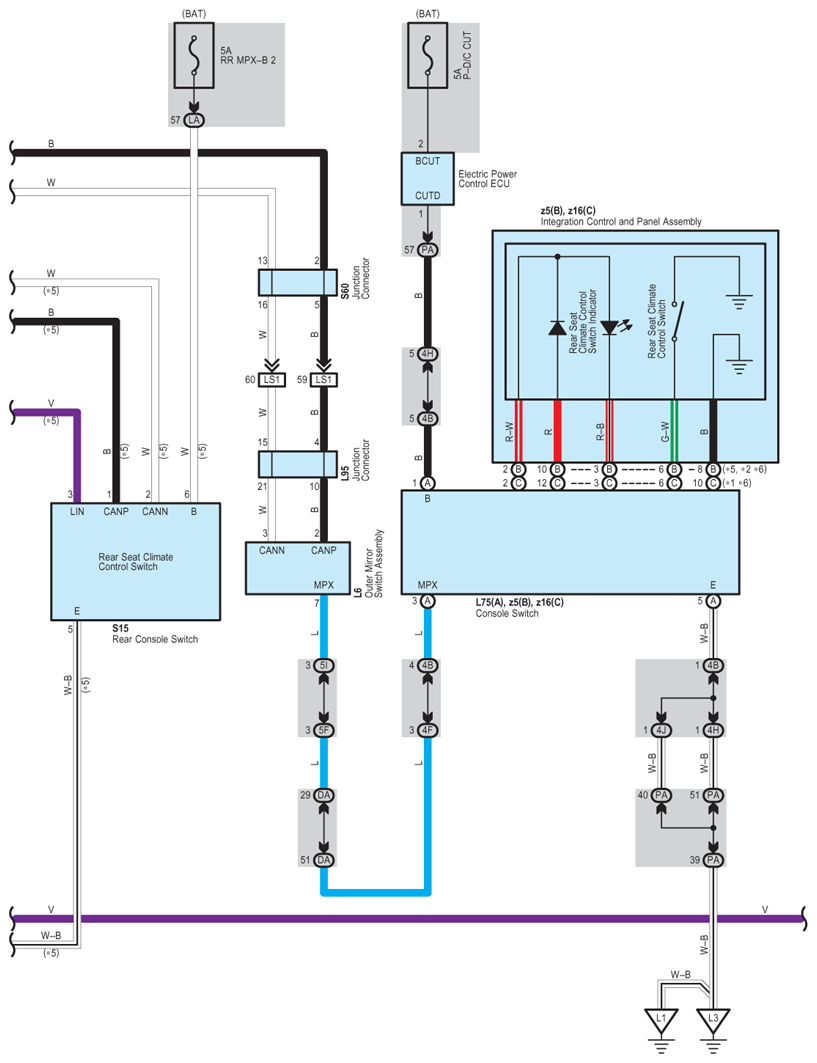

Fig 2: Climate Control Seat (Rear Passenger's Seat) - Circuit Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

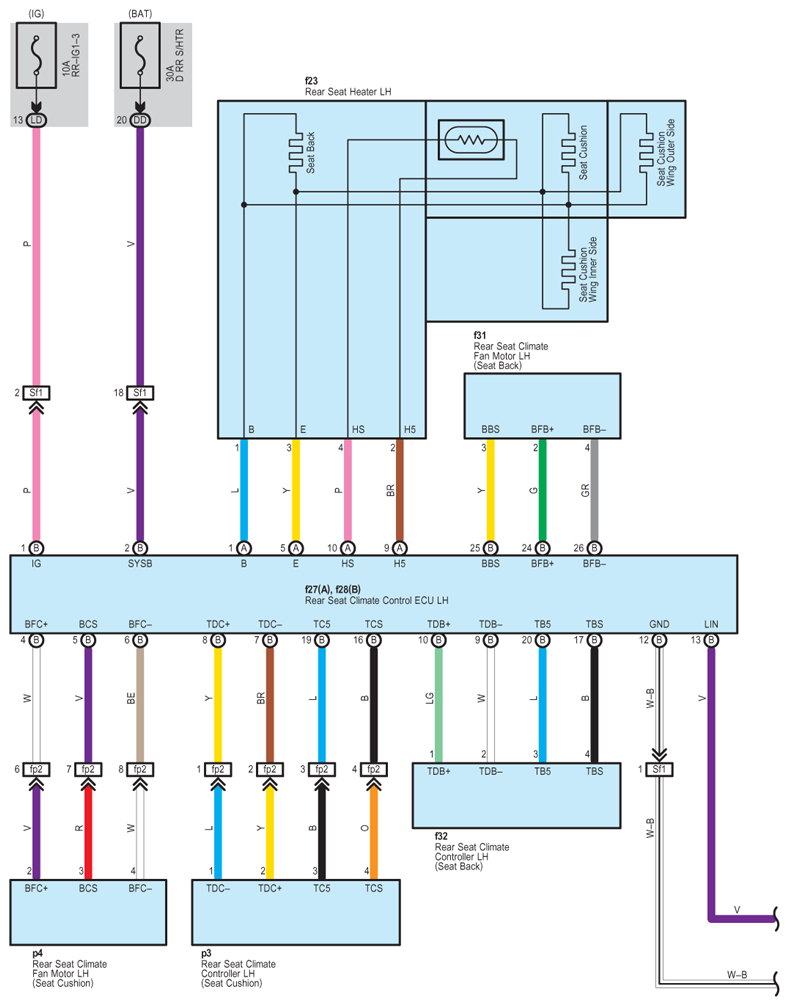

Fig 3: Climate Control Seat (Rear Passenger's Seat) - Circuit Diagram (3 Of 4)

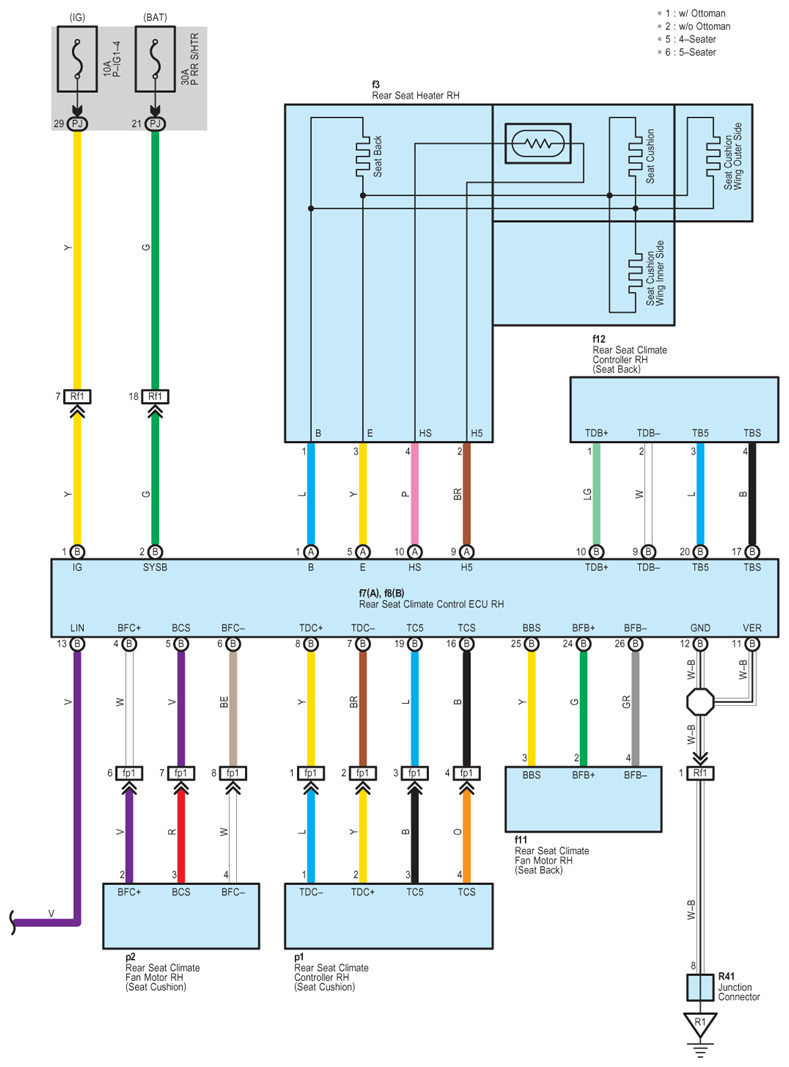

Fig 4: Climate Control Seat (Rear Passenger's Seat) - Circuit Diagram (4 Of 4)
