Front Seat Assembly: Reassembly: Reassembly

HINT:

• Use the same procedure for the RH and LH sides.
• The procedure listed below is for the LH side.
• A bolt without a torque specification is shown in the standard bolt chart. Refer to SPECIFIED TORQUE FOR STANDARD BOLTS .

1. INSTALL FRONT SEAT WIRE LH

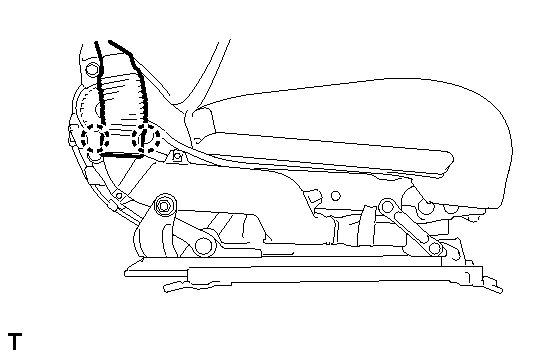

   Fig 1: Identifying Front Seat Wire, Wire Harness Clamps, Connectors & Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Attach the wire harness clamps and connect the connectors to install the seat wire.
   2. Install the bolt.

      Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

2. INSTALL SEAT POSITION AIRBAG SENSOR  . Refer to INSTALLATION - Step 1
3. INSTALL OCCUPANT CLASSIFICATION ECU (for Front Passenger Side)

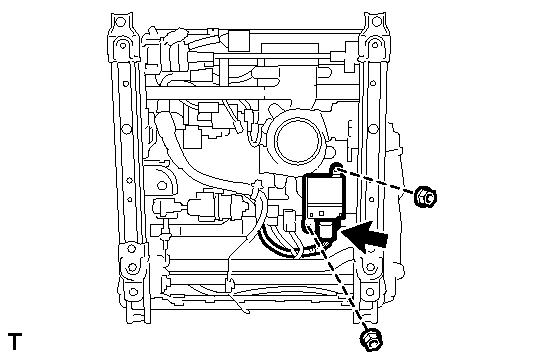

   Fig 2: Identifying Occupant Classification ECU Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • If replacing the ECU, replace the front seat set (cushion assembly, occupant classification ECU and 2 nuts).
   • If the occupant classification ECU has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
   1. Install the occupant classification ECU with the 2 nuts.

      Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)

   2. Connect the connector.
4. INSTALL SEAT CLIMATE CONTROL BLOWER LH (w/ Climate Control Seat System)

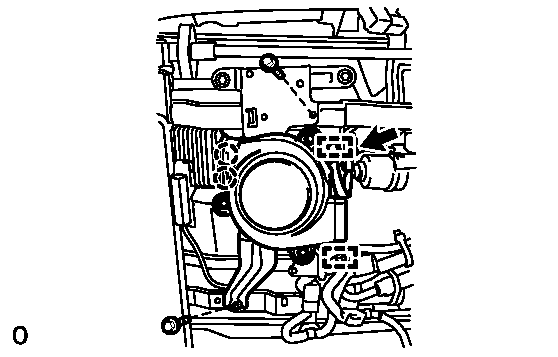

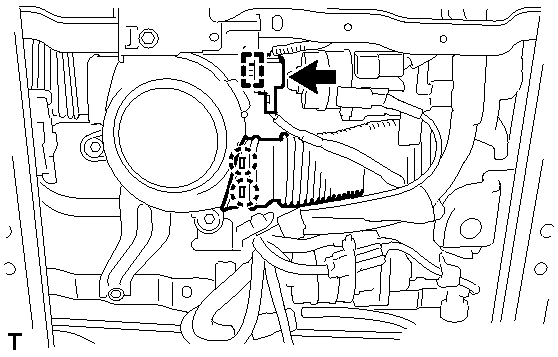

   Fig 3: Identifying Climate Control Duct, Claws, Wire Harness Clamps, Connector & Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Install the climate control blower with the 2 bolts.
   2. Connect the connector and attach the wire harness clamps.
   3. Attach the 4 claws to connect the climate control air duct.
5. INSTALL NO. 1 AIR FILTER (w/ Climate Control Seat System)

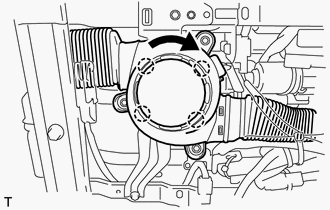

   Fig 4: Rotating No. 1 Filter Clockwise

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Rotate the air filter clockwise to attach the 4 claws to install it.
6. INSTALL SEAT CLIMATE CONTROL ECU (w/ Climate Control Seat System)

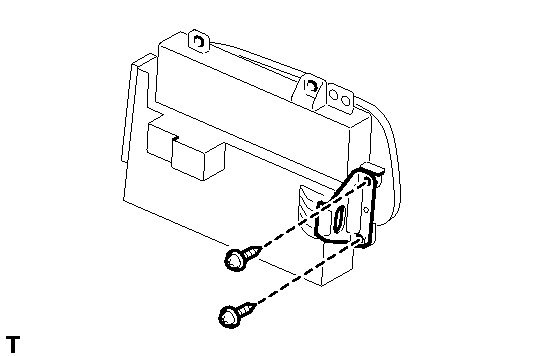

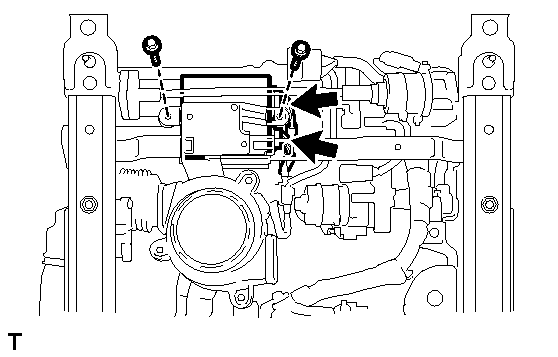

   Fig 5: Identifying Climate Control ECU Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Install the climate control ECU with the 2 bolts.
   2. Connect the 2 connectors.
7. INSTALL FRONT NO. 1 SEAT TRAVEL LINK

   HINT:

   Use the same procedures described for the front No. 2 seat travel link.

8. INSTALL FRONT NO. 2 SEAT TRAVEL LINK

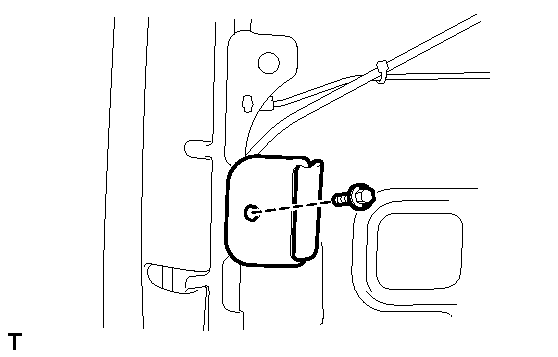

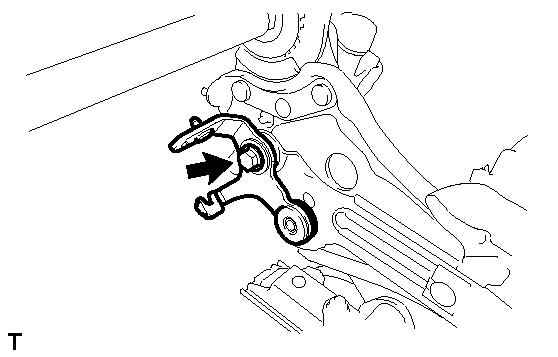

   Fig 6: Locating Front Seat Travel Link Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Install the seat travel link with the bolt.

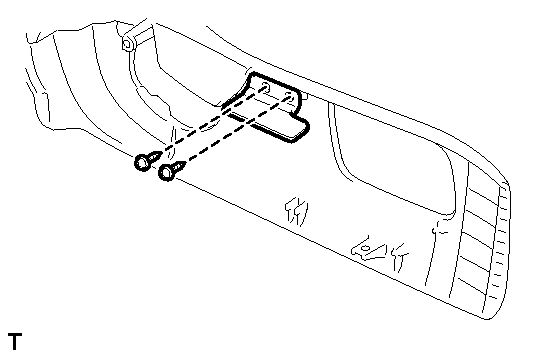

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

9. INSTALL NO. 1 SEAT CUSHION PLATE

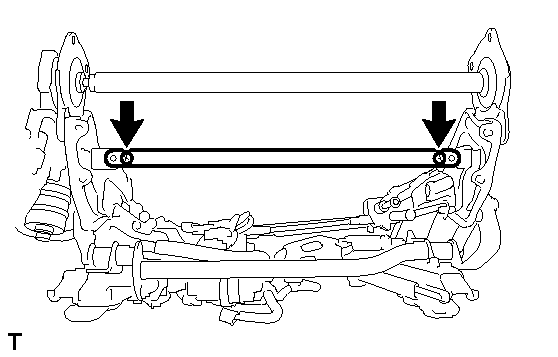

   Fig 7: Locating Seat Cushion Plate Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Install the seat cushion plate with the 2 bolts.

      Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

10. INSTALL FRONT SEAT CUSHION SPRING

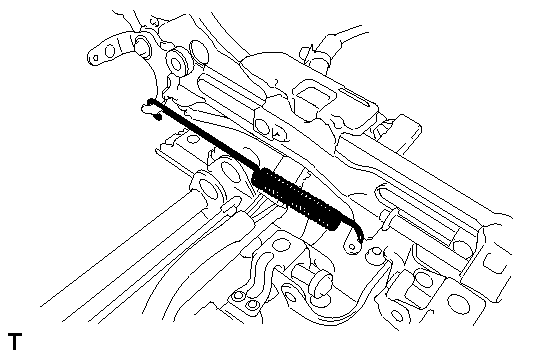

    Fig 8: Identifying Front Seat Cushion Spring

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the spring.

       HINT:

       Use the same procedure to install the spring on the other side.

11. INSTALL FRONT SEAT CUSHION SHIELD LOWER

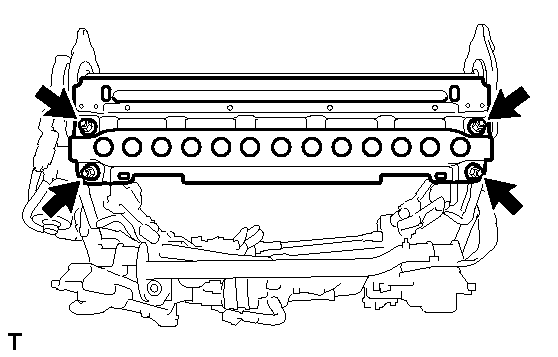

    Fig 9: Locating Cushion Shield Lower Nuts

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

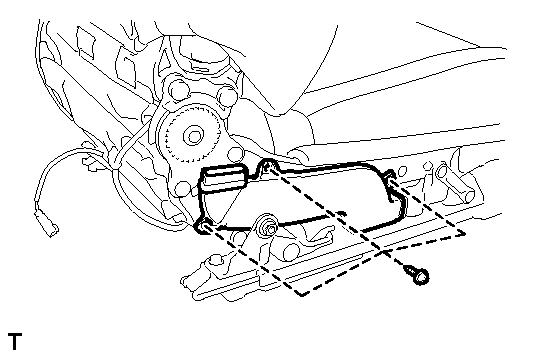

    1. Install the cushion shield lower with the 4 nuts.
12. INSTALL RECLINING ADJUSTER INSIDE COVER RH
    1. Install the reclining adjuster inside cover with the screw.
13. INSTALL RECLINING ADJUSTER INSIDE COVER LH
    Fig 10: Identifying Reclining Adjuster Inside Cover, Wire Harness Clamp & Screw

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the wire harness clamp to the reclining adjuster inside cover.
    2. Install the reclining adjuster inside cover with the screw.
14. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY LH

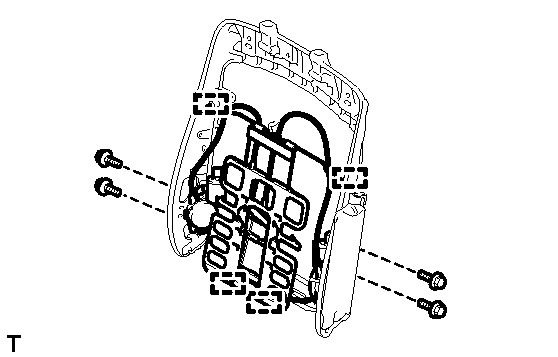

    Fig 11: Identifying Bolts, Lumbar Support Adjuster Motors & Seatback Frames

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the 4 clamps to install the lumbar support adjuster.
    2. for Driver Side:

       Install the 2 motors with the 4 bolts.

    3. for Front Passenger Side:

       Install the motor with the 2 bolts.

15. INSTALL SEAT CLIMATE CONTROL CONTROLLER LH (BACK SIDE) (w/ Climate Control Seat System)

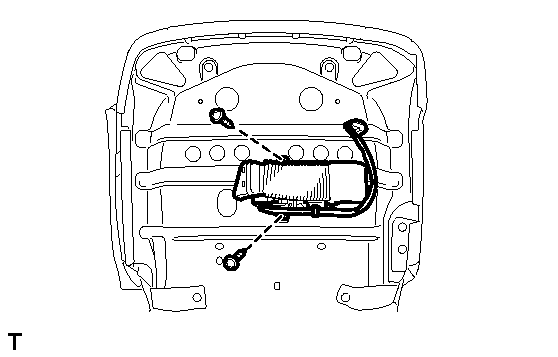

    Fig 12: Identifying Climate Control Controller Screws

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. w/ Lumbar Support Adjuster:

       Install the climate control controller with the 2 screws.

    2. w/o Lumbar Support Adjuster:

       Install the climate control controller to the seatback frame.

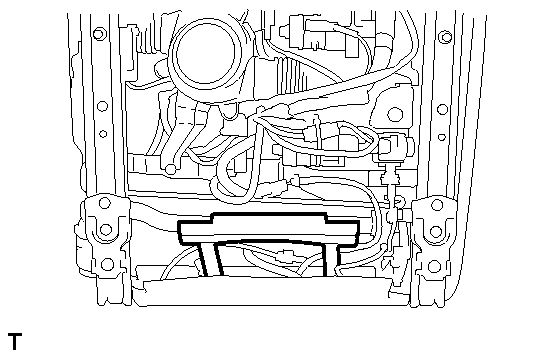

       Fig 13: Locating Seat Climate Control Controller

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. INSTALL FRONT SEATBACK FRAME ASSEMBLY LH

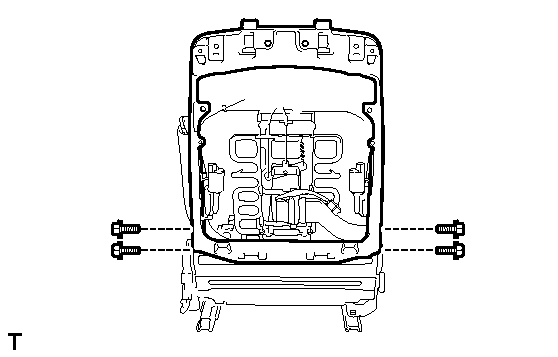

    Fig 14: Identifying Seatback Frame & Bolts

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Temporarily install the seatback frame with the 4 bolts.
    2. Push the seatback frame towards the rear, and tighten the 4 bolts.

       Torque: 43 N*m (439 kgf*cm, 32 ft.*lbf)

    3. Connect the connectors and attach the wire harness clamps.

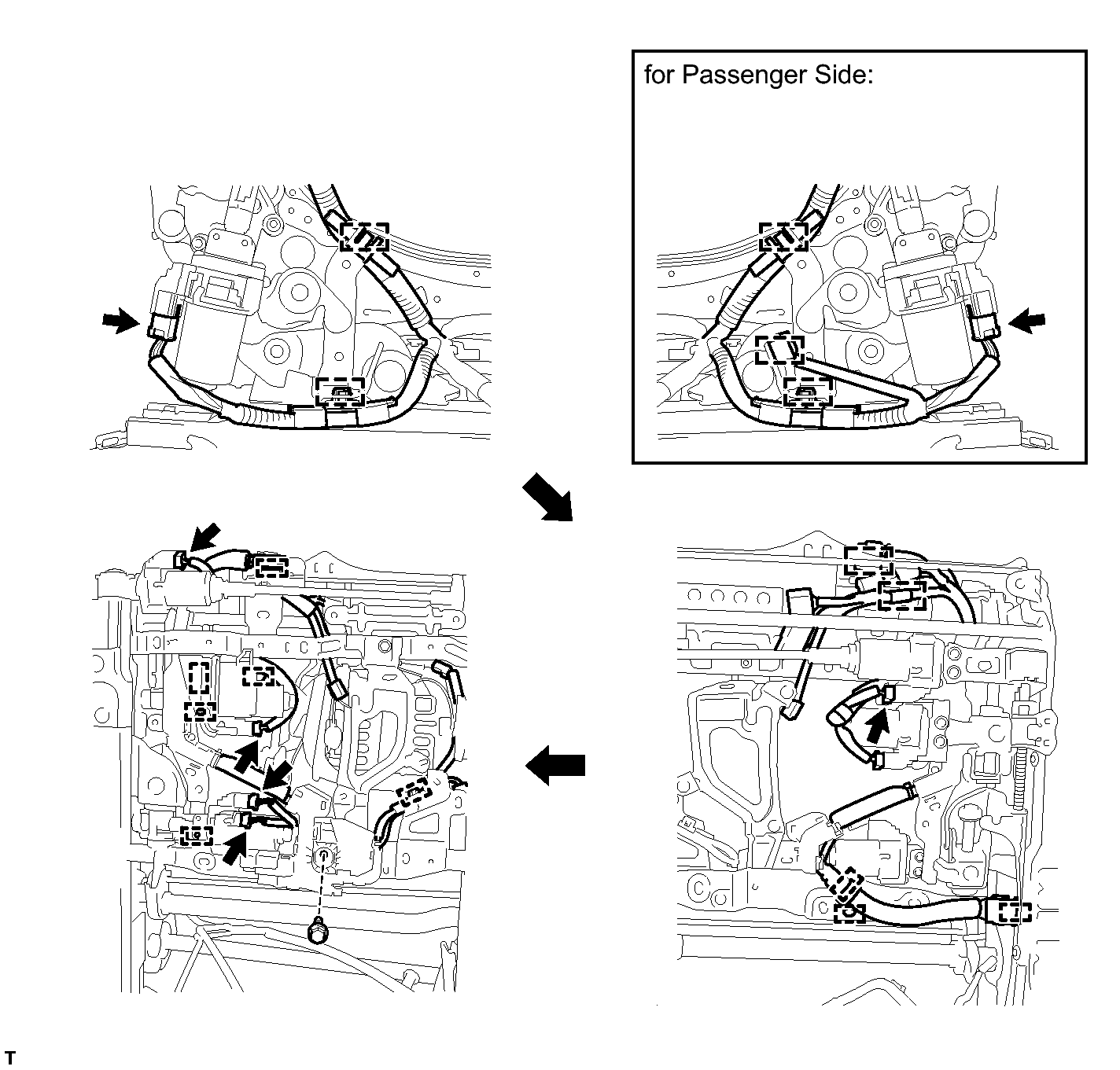

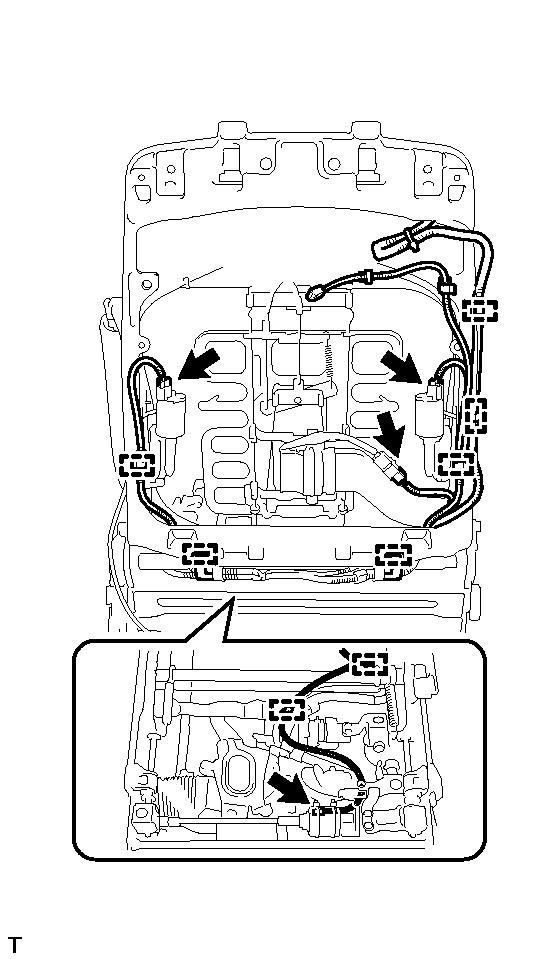

       Fig 15: Identifying Front Seatback Frame Assembly, Connectors & Wire Harness Clamps LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. INSTALL FRONT SEAT HEADREST ADJUSTER SUB-ASSEMBLY LH
    1. Attach the 2 claws.

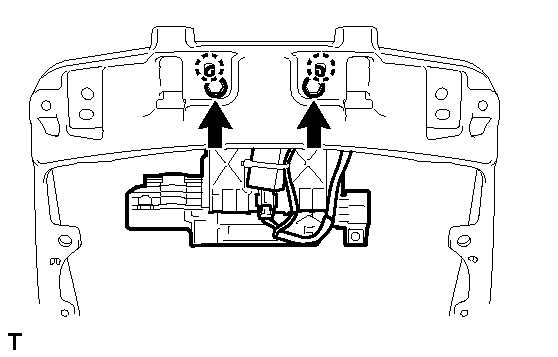

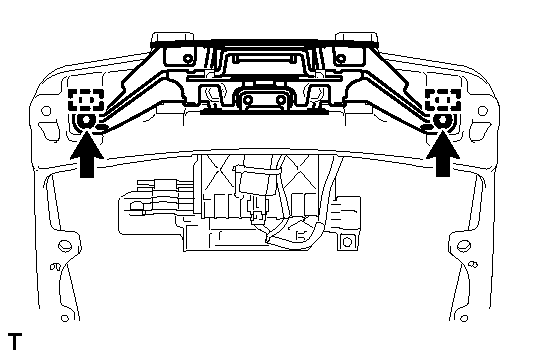

       Fig 16: Identifying Headrest Adjuster & Bolts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the headrest adjuster with the 2 bolts.

       Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

    3. Connect the connector and attach the 2 wire harness clamps.

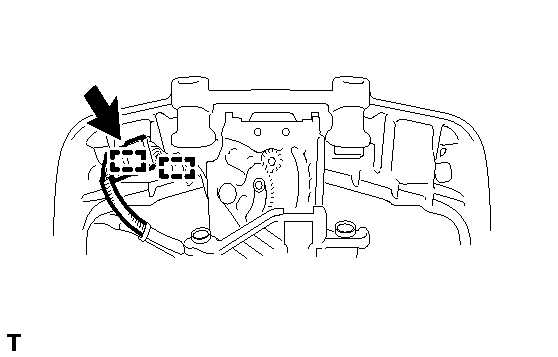

       Fig 17: Identifying Wire harness Clamps & Connector

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the 2 hooks.
       Fig 18: Identifying Front Seat Headrest Adjuster Sub-Assembly, Bolts, Hooks & Dynamic Damper Frame LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the dynamic damper frame with the 2 bolts.

       Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

18. INSTALL FRONT SEAT HEADREST ADJUSTER SUB-ASSEMBLY RH (w/ Retractable Headrest)
    1. Install the headrest stay cover with the 2 screws.
       Fig 19: Identifying Headrest Stay Cover Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 2 claws to install the cable.

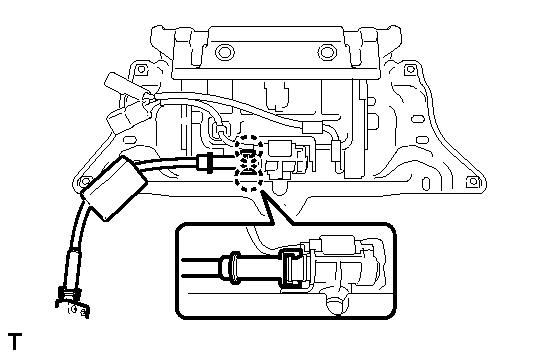

       Fig 20: Identifying Cable Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 2 claws to install the motor.

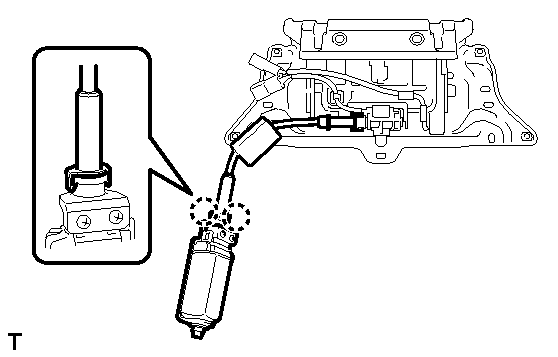

       Fig 21: Identifying Motor Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the 2 claws to install the headrest adjuster.

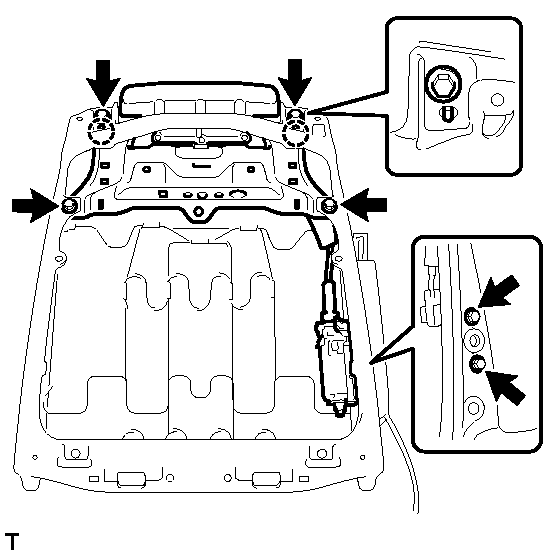

       Fig 22: Identifying Front Seat Headrest Adjuster And Motor With Fasteners

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the 4 bolts and 2 screws.

       for bolt

       Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

19. INSTALL FRONT SEAT HEADREST BRACKET
    1. Attach the wire harness clamp to install the bracket to the active headrest inflator.

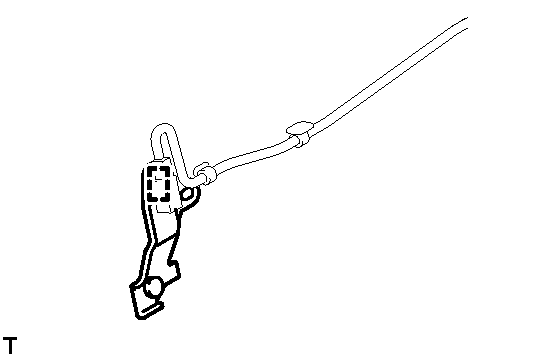

       Fig 23: Identifying Active Headrest Inflator, Wire Harness Clamp & Bracket

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
20. INSTALL ACTIVE HEADREST INFLATOR  . Refer to INSTALLATION - Step 2
21. INSTALL FRONT NO. 5 SEAT SET BRACKET RH (except 5-Passenger with Ottoman)
    1. Attach the 2 clips to install the bracket.

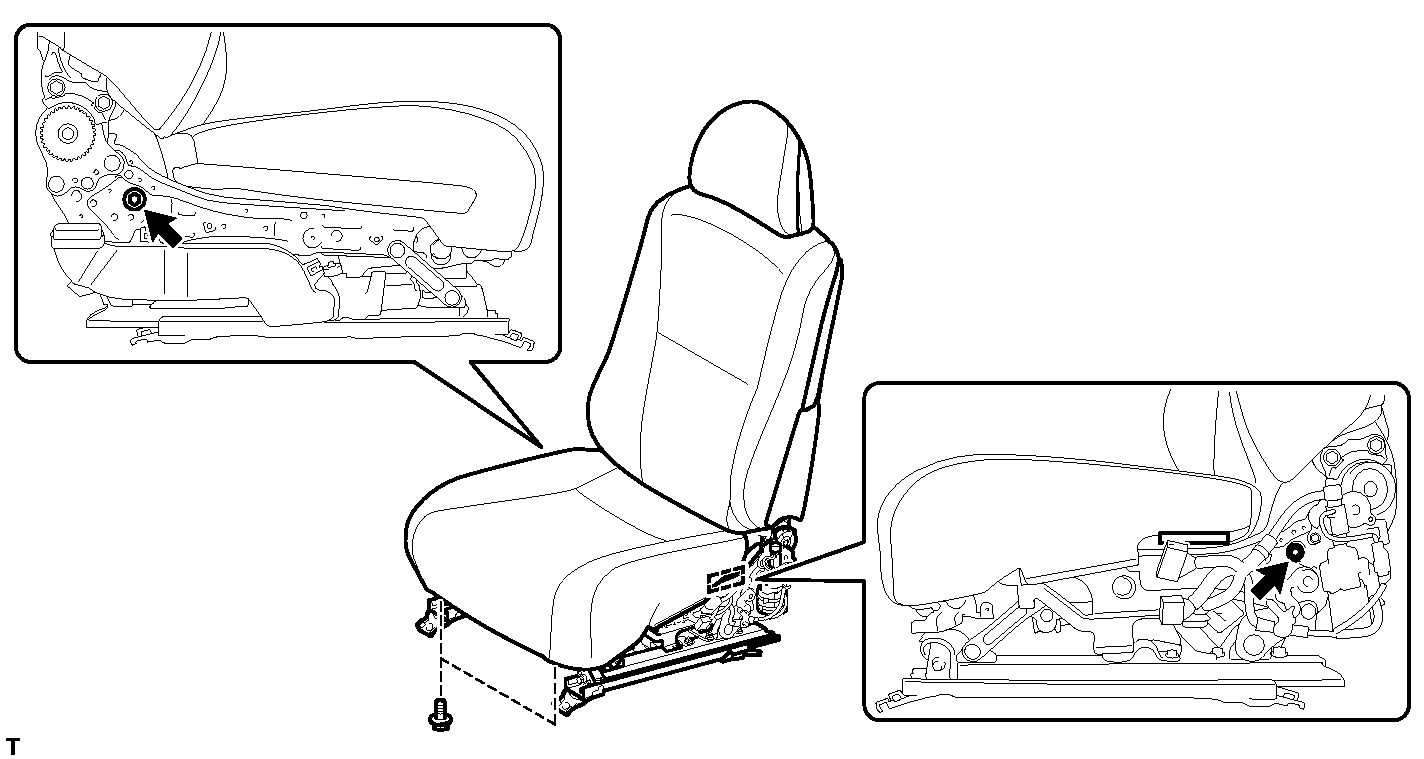

       Fig 24: Identifying Bracket Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 screws.
22. INSTALL FRONT SEATBACK COVER SUB-ASSEMBLY LH

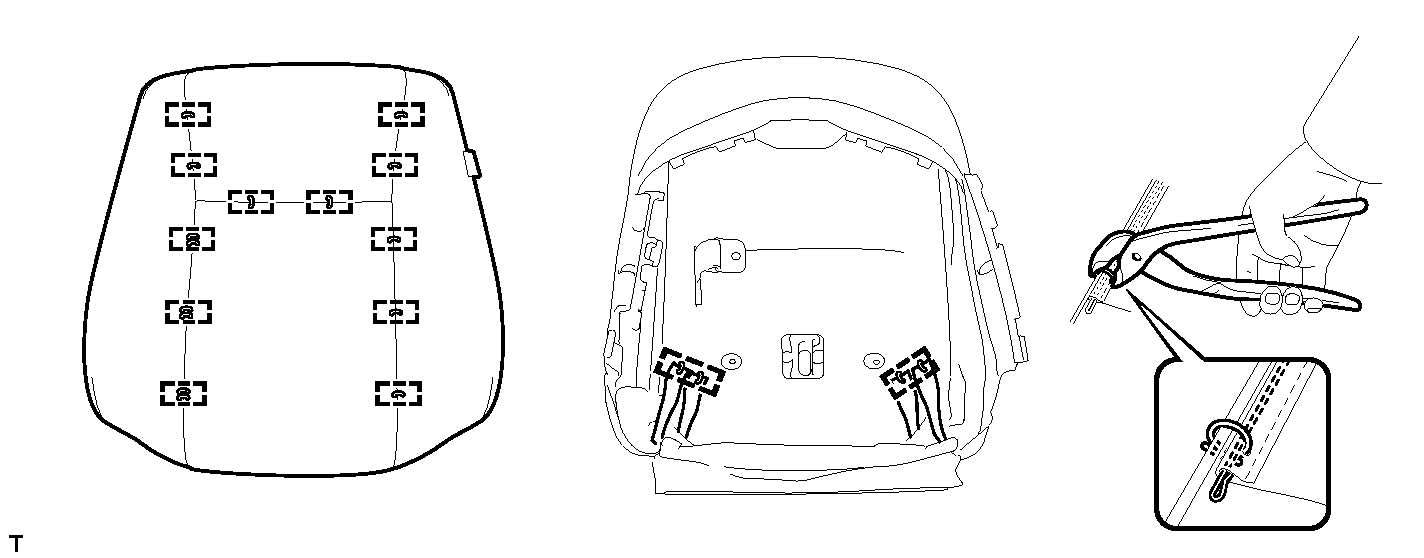

    Fig 25: Identifying Seatback Cover, Seatback Pad, Hog Rings & Hog Ring Pliers

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using hog ring pliers, install the seatback cover to the seatback pad with new hog rings.
       NOTE:

       • Be careful not to damage the cover.
       • When installing the hog rings, avoid wrinkling the cover.
23. INSTALL FRONT SEATBACK COVER WITH PAD
    1. Attach the hooks.
       Fig 26: Identifying Clips, Seatback Cover With Pad & Seatback Frame

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 4 clips to install the seatback cover with pad.
    3. Attach the seatback cover bracket with the bolt.

       Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

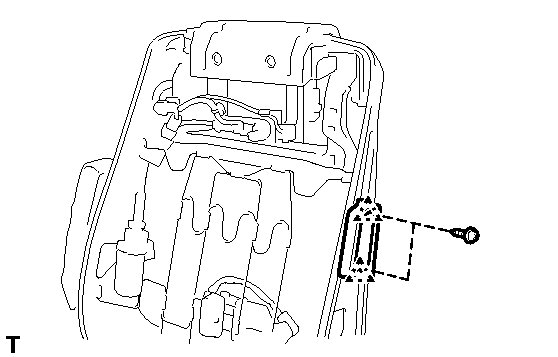

       Fig 27: Identifying Seatback Cover Bracket Bolt

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
24. INSTALL POWER SEAT SWITCH ASSEMBLY RH (except 5-Passenger with Ottoman)
    1. Attach the 2 claws to install the power seat switch.

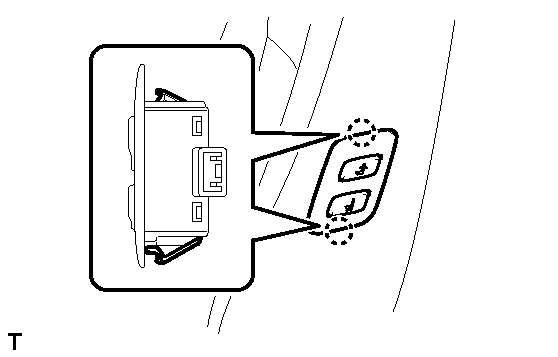

       Fig 28: Identifying Power Seat Switch Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
25. INSTALL FRONT SEAT HEADREST SUPPORT LH
    Fig 29: Identifying Claws And Headrest Supports

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the 4 claws to install the 2 headrest supports.
26. INSTALL FRONT SEAT HEADREST ASSEMBLY LH
    1. Install the headrest with the 2 pins.

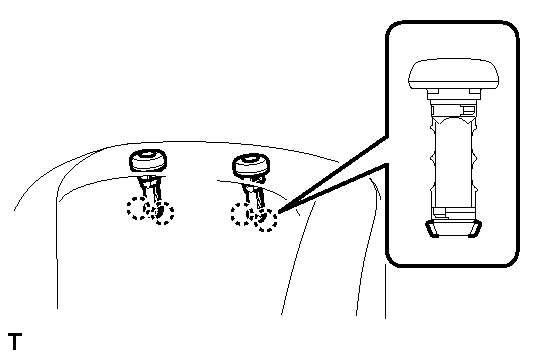

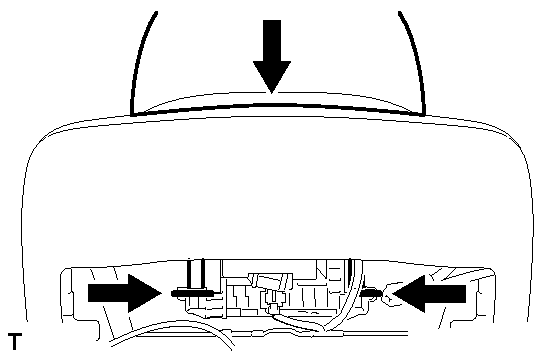

       Fig 30: Installing Front Seat Headrest

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       NOTE:

       When replacing a deployed active headrest inflator, always replace it together with the headrest.

    2. w/ Retractable Headrest:

       Install the headrest.

27. INSTALL FRONT SEAT CUSHION COVER SUB-ASSEMBLY LH

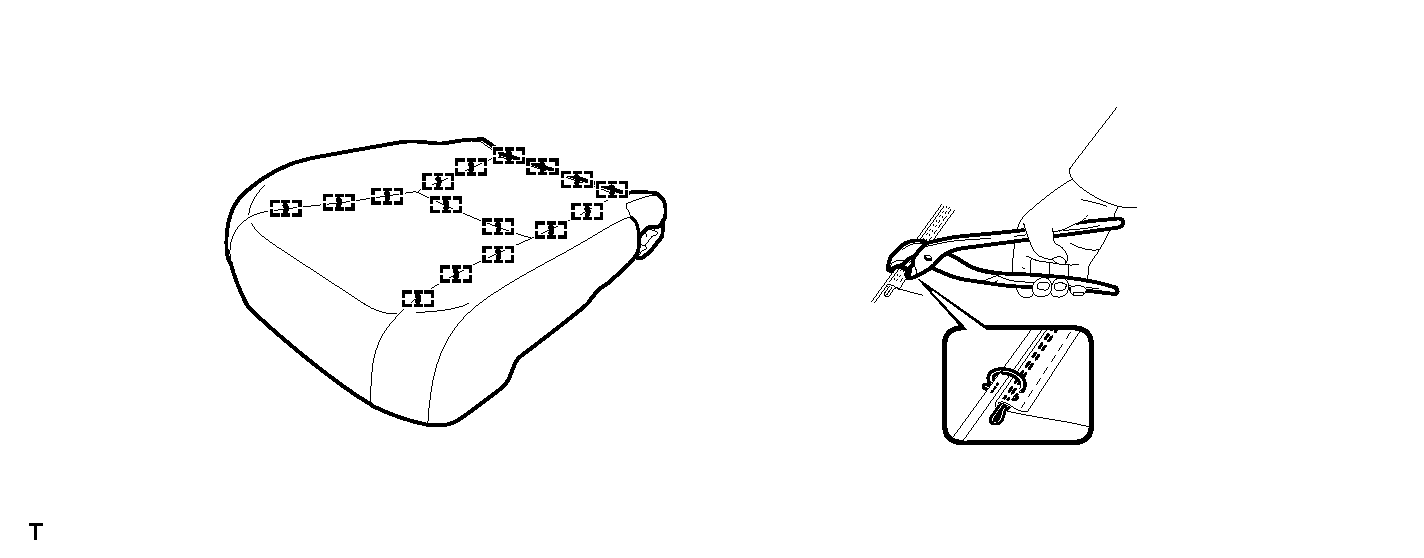

    Fig 31: Identifying Seat Cushion Cover, Seat Cushion Pad, Hog Rings & Hog Ring Pliers

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using hog ring pliers, install the seat cushion cover to the seat cushion pad with new hog rings.
       NOTE:

       • Be careful not to damage the cover.
       • When installing the hog rings, avoid wrinkling the cover.
       • As the front passenger side seat has an occupant classification system, its front seat cushion assembly cannot be disassembled.
       • If replacing the front passenger side seat, replace the front seat set (cushion assembly, occupant classification ECU and 2 nuts).
28. INSTALL FRONT SEAT CUSHION FRAME SUB-ASSEMBLY LH

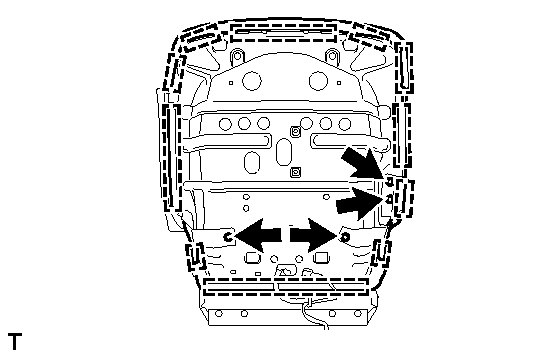

    Fig 32: Installing Front Seat Cushion Frame Sub-Assembly LH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    • As the front passenger side seat has an occupant classification system, its front seat cushion assembly cannot be disassembled.
    • If replacing the front passenger side seat, replace the front seat set (cushion assembly, occupant classification ECU and 2 nuts).
    1. Install the seat cushion frame with the 4 clips.
    2. Attach the hooks.
29. INSTALL SEAT CLIMATE CONTROL CONTROLLER LH (CUSHION SIDE) (w/ Climate Control Seat System)

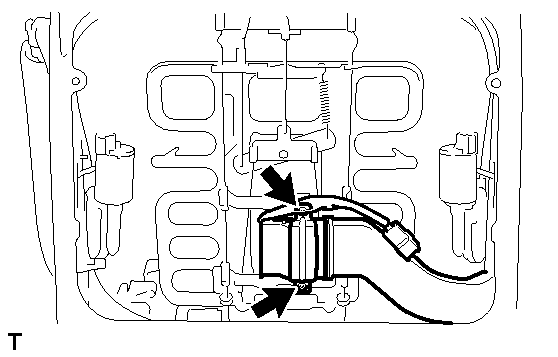

    Fig 33: Identifying Climate Control Controller Screws

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the climate control controller with the 2 screws.
30. INSTALL FRONT SEAT CUSHION ASSEMBLY LH
    Fig 34: Locating Seat Cushion Assembly Bolts

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the seat cushion assembly with the 4 bolts and attach the hook.

       Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    2. for Front Passenger Side:

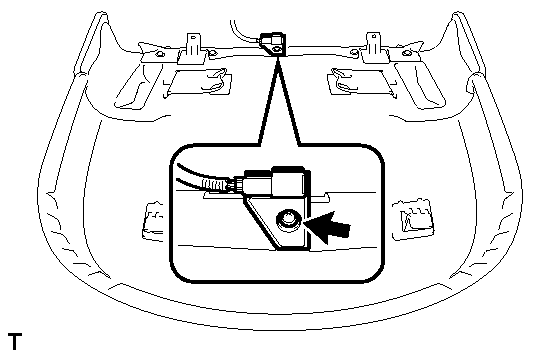

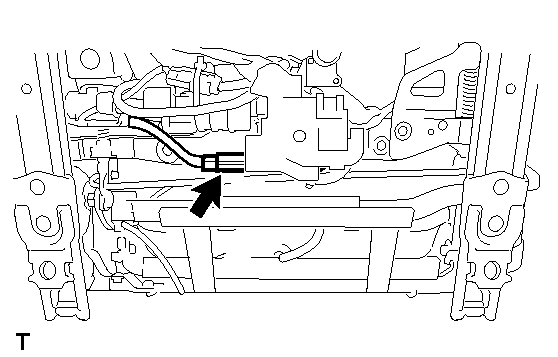

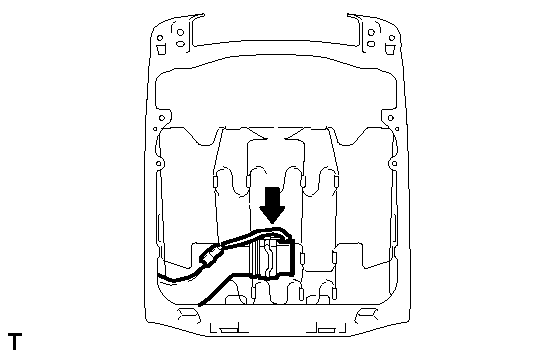

       Fig 35: Locating Connector (Front Passenger Side)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

       Connect the connector.

    3. Install the 3 clips.

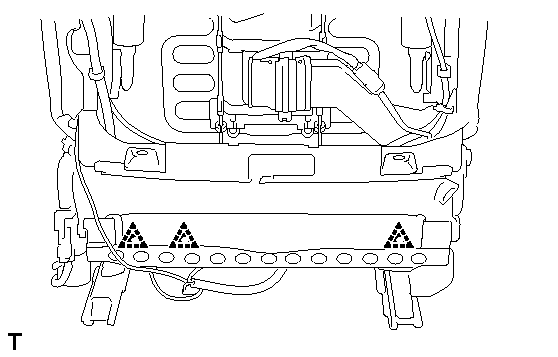

       Fig 36: Identifying Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. w/ Climate Control Seat System:
       Fig 37: Identifying Climate Control Controller Duct & Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       1. Attach the 4 claws to connect the climate control duct.

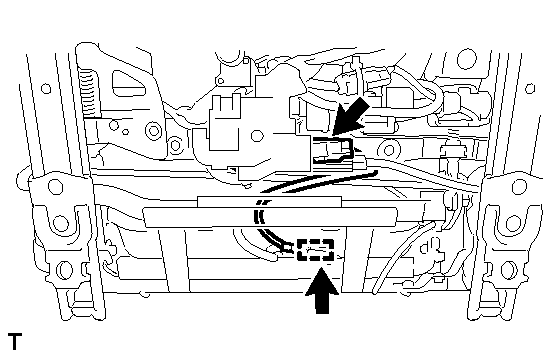

       2. Connect the connector and attach the wire harness clamp.
       3. Connect the 2 connectors and attach the wire harness clamp.
          Fig 38: Identifying Wire Harness Clamp & Connectors

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       4. Connect the duct of the climate control blower and install the 3 screws.
          Fig 39: Identifying Interior Illumination Light Screw

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       5. Attach the 2 claws to install the air duct.
          Fig 40: Identifying Air Duct Claws

          Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
31. INSTALL NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH
    1. Install the interior illumination light with the screw.
       Fig 41: Locating Interior Illumination Light Screw

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
32. INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY LH
    1. Connect the connector and attach the wire harness clamp.

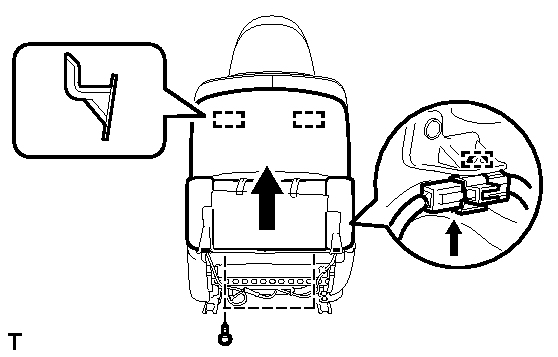

       Fig 42: Install Front Seatback Board Sub-Assembly LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 2 hooks to install the seatback board.
    3. Install the 2 screws.
33. INSTALL FRONT SEAT CUSHION SHIELD INNER LH
    Fig 43: Identifying Claw And Cushion Shield Inner

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the claw to install the cushion shield inner.
    2. Install the 3 screws.
34. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH  . Refer to INSTALLATION - Step 1
35. INSTALL FRONT NO. 1 SEAT CUSHION SHIELD LH

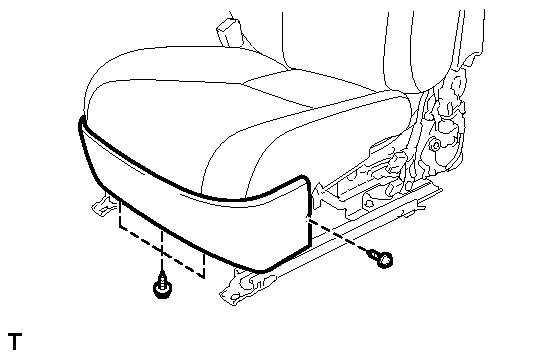

    Fig 44: Identifying Cushion Shield Front Screws

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the cushion shield with the 4 screws.
36. INSTALL FRONT SEAT HINGE COVER LH

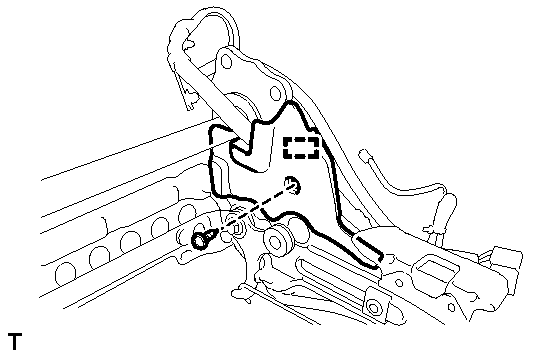

    Fig 45: Identifying Front Seat Hinge Cover Screws

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the hinge cover with the 2 screws.
37. INSTALL FRONT NO. 1 SEAT SHIELD SET BRACKET

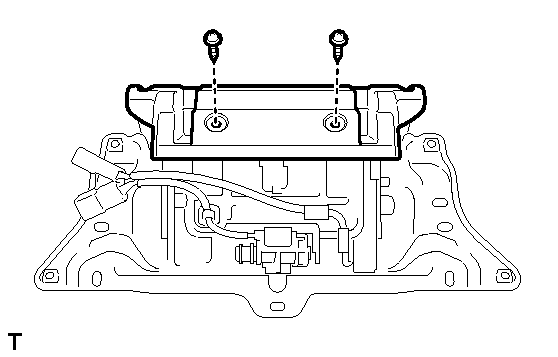

    Fig 46: Identifying Screws And Bracket

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the bracket with the 2 screws.
38. INSTALL POSITION CONTROL ECU AND SWITCH ASSEMBLY

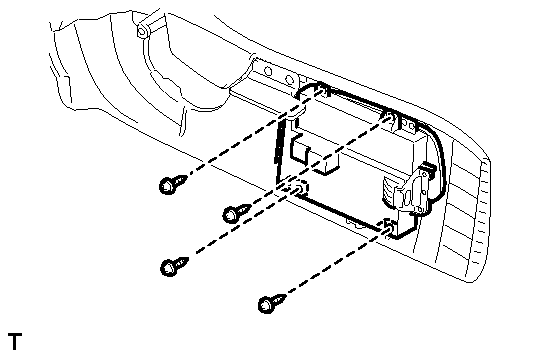

    Fig 47: Identifying Control ECU And Switch Screws

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the position control ECU and switch with the 4 screws.
39. INSTALL FRONT SEAT CUSHION SHIELD LH

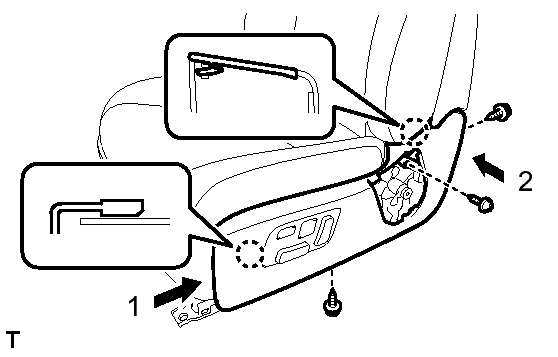

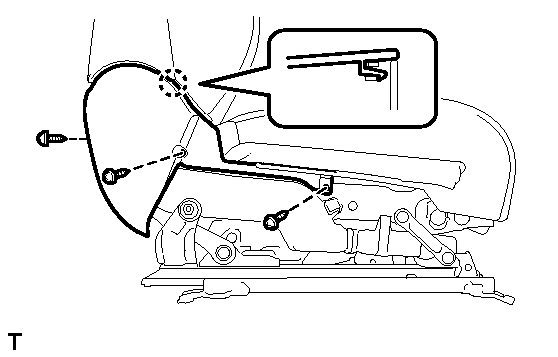

    Fig 48: Identifying Front Seat Cushion Shield Claws Installing Order

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the 2 connectors.
    2. Attach the 2 claws in the order shown in the illustration.
    3. Install the cushion shield with the 3 screws.
    4. Attach the rubber band of the front seatback board to the seat adjuster.

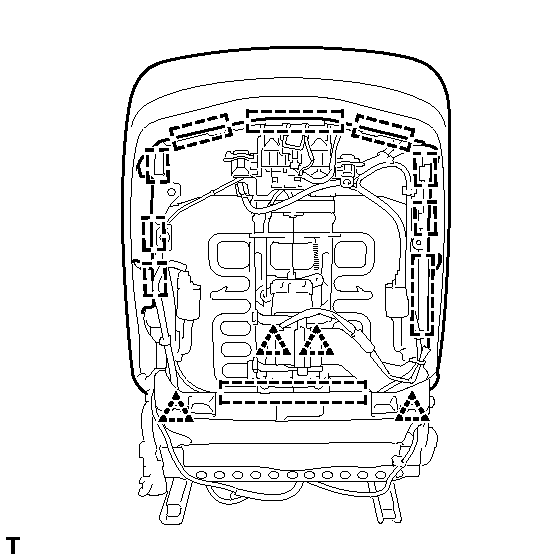

       Fig 49: Identifying Rubber Bands Of Seatback Board

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
