System Diagram

WARNING: This page is about a different car, the 2011 Lexus IS 350C. However, it is still accessible from the selected car via links, so may be relevant.

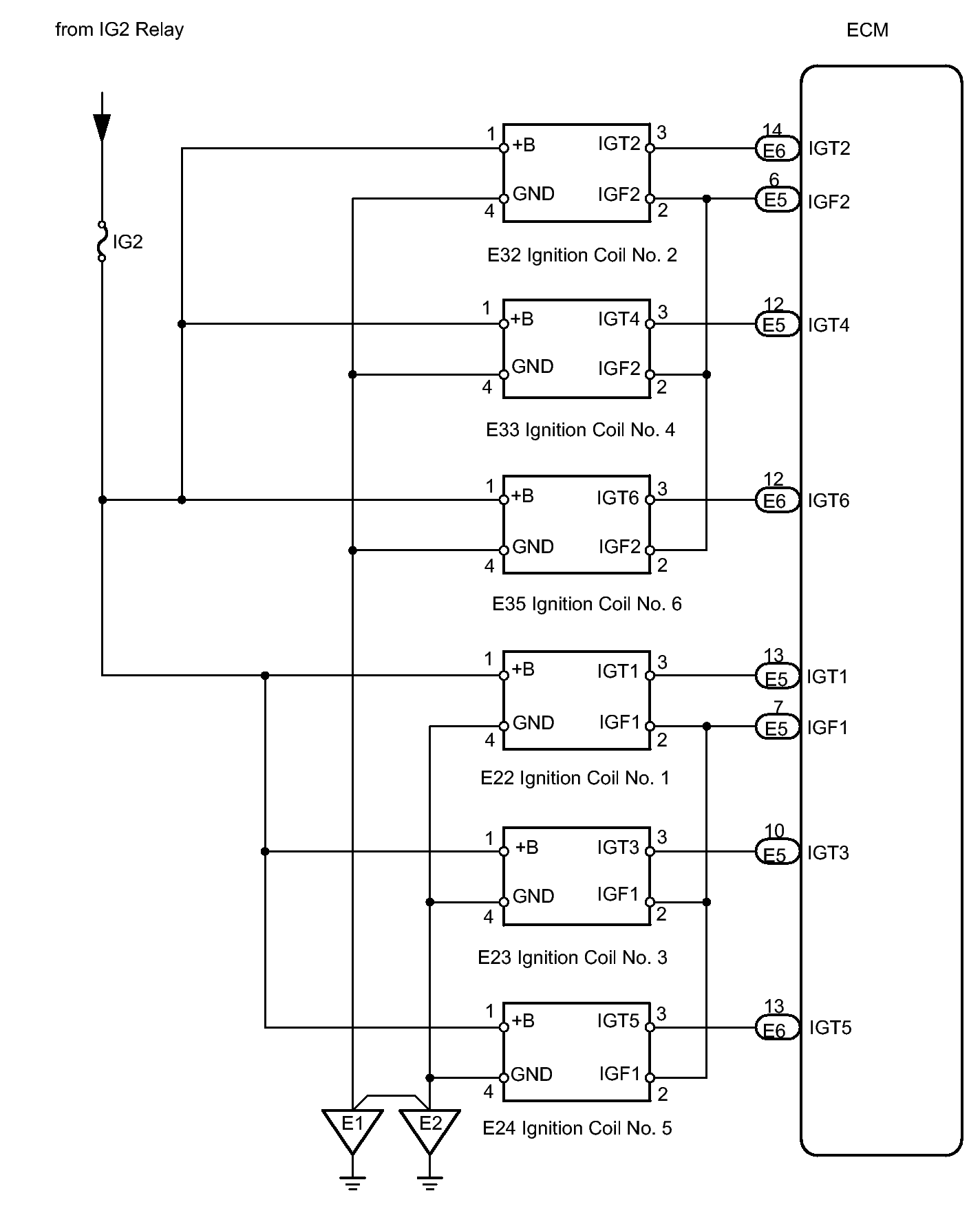

Fig 1: Ignition System - Wiring Diagram
GTY350527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
