All Window Switch: Removal: Removal

  1. REMOVE DOOR SCUFF PLATE ASSEMBLY LH  . Refer to REMOVAL - Step 2
  2. REMOVE FRONT DOOR OPENING TRIM COVER LH  . Refer to REMOVAL - Step 3
  3. REMOVE INSTRUMENT SIDE PANEL LH  . Refer to REMOVAL - Step 30
  4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 32
  5. REMOVE ALL WINDOW SWITCH (SLIDING ROOF SWITCH ASSEMBLY)
    1. Disengage the 4 claws and remove the all window switch (sliding roof switch assembly).

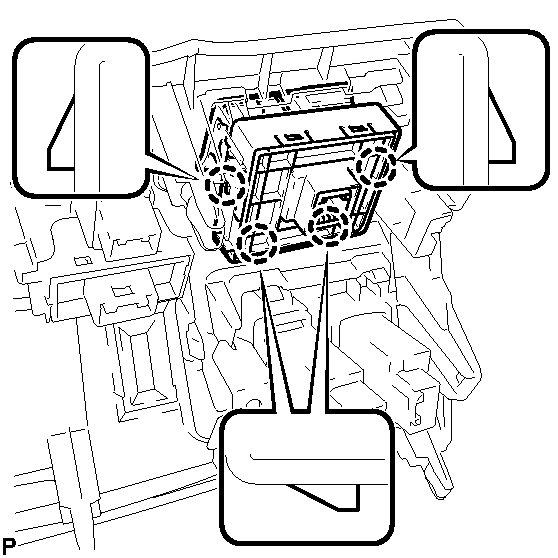

      Fig 1: 4 Claws
      GTY354213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
