Clutch Switch: Installation: Installation

INSTALL CLUTCH SWITCH ASSEMBLY
1. Fully loosen the lock nut of the clutch switch assembly.
2. Adjust the clutch switch until the threaded portion makes gentle contact with the cushion. Tighten the lock nut and verify the contact of the switch threaded portion with the cushion.

  Fig 1: Identifying Lock Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 16 N*m (160 kgf*cm, 12 ft.*lbf)
3. Connect the connector.
INSTALL MAIN BODY ECU (COWL SIDE JUNCTION BLOCK LH)
1. Install the main body ECU (cowl side junction block LH) with the 2 nuts and bolt.

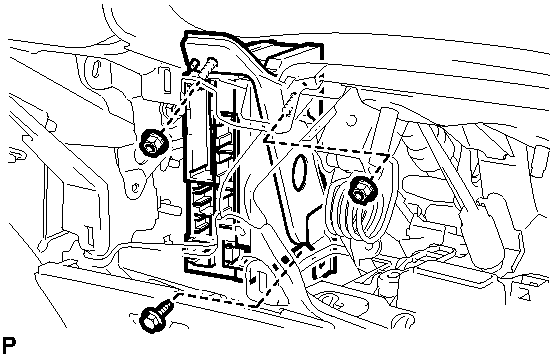

  Fig 2: Identifying Main Body ECU (Cowl Side Junction Block LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Nut

  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  Bolt

  Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)
2. Connect all connectors.
INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 24
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 25
INSTALL INSTRUMENT SIDE PANEL LH . Refer to INSTALLATION - Step 26
INSTALL FRONT DOOR OPENING TRIM COVER LH . Refer to INSTALLATION - Step 15
INSTALL DOOR SCUFF PLATE ASSEMBLY LH . Refer to INSTALLATION - Step 16
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM
