Rear Active Stabilizer Control Ecu: Components: Illustration

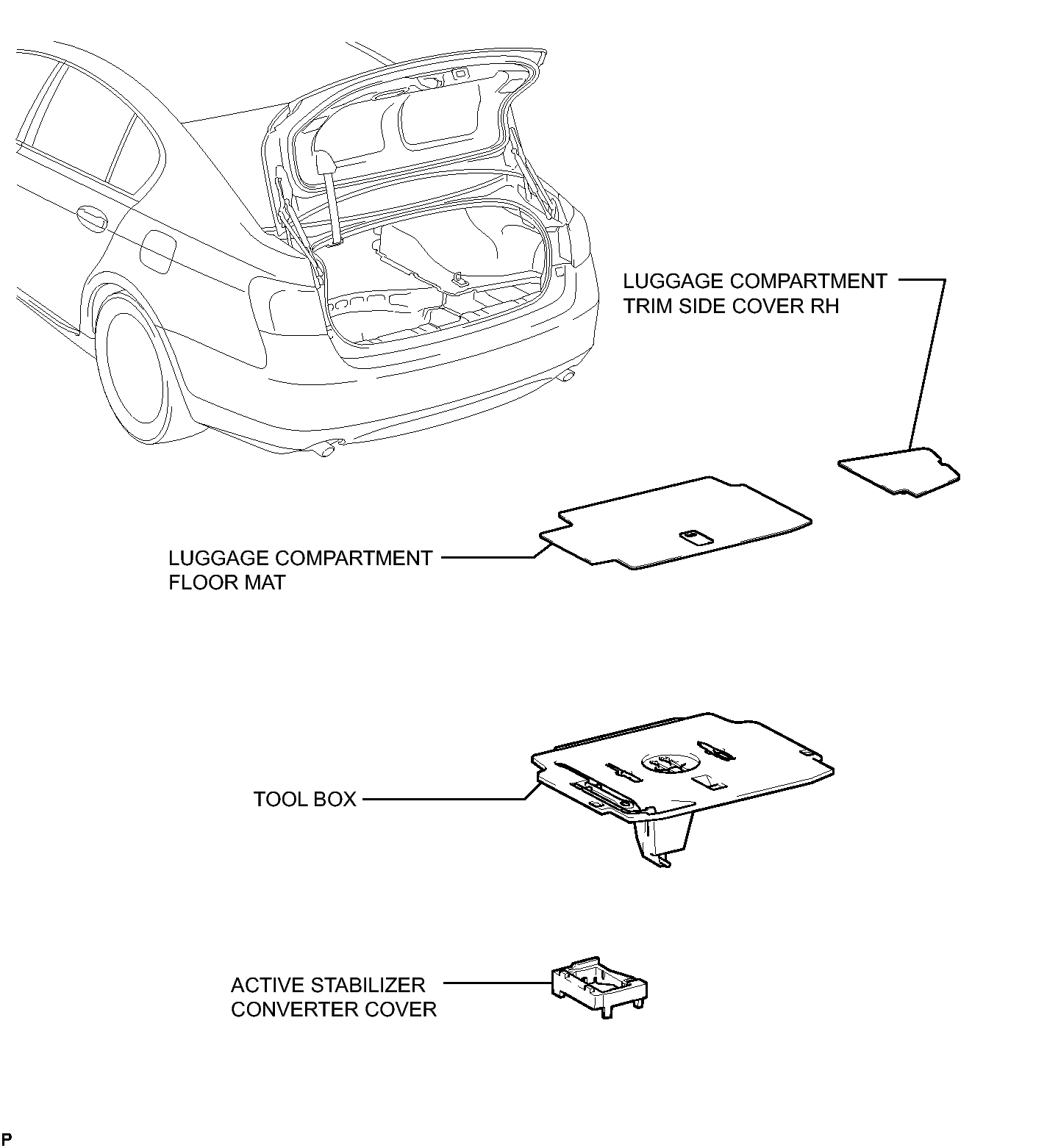

Fig 1: Identifying Rear Active Stabilizer Control Actuator Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

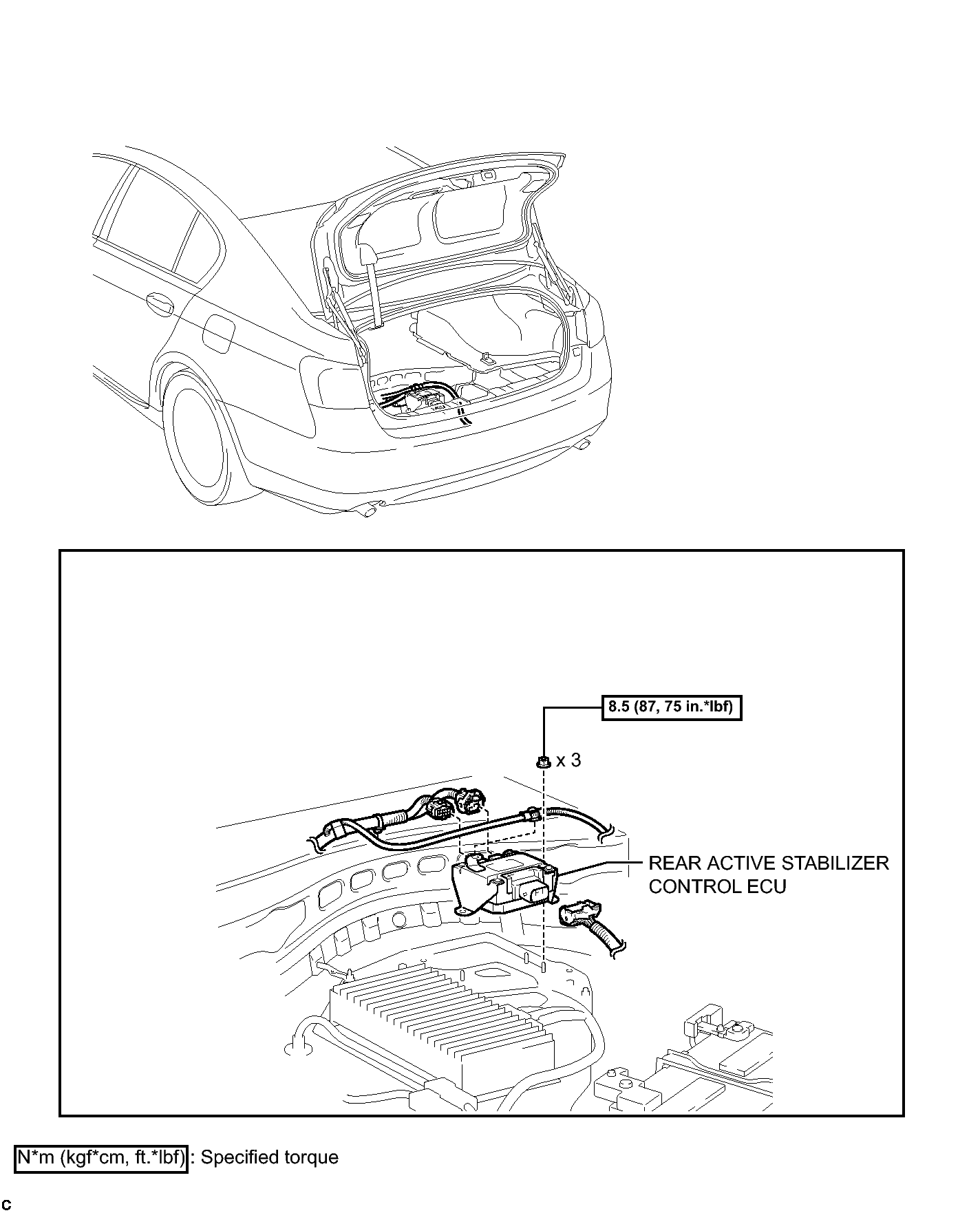

Fig 1: Identifying Rear Active Stabilizer Control ECU Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
