System Diagram

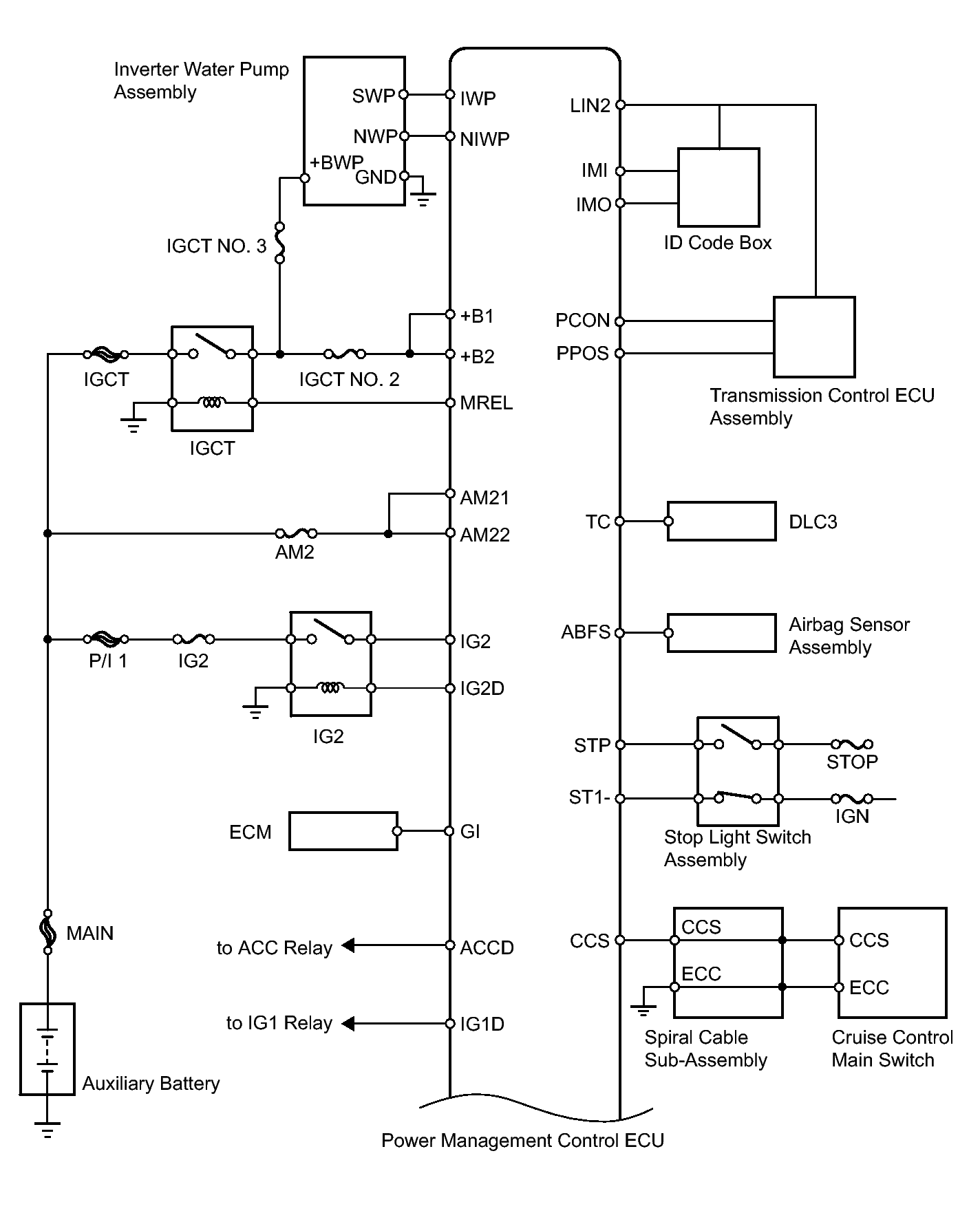

Fig 1: Identifying Hybrid Control System Wiring Diagram (1 Of 4)
GTY355780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

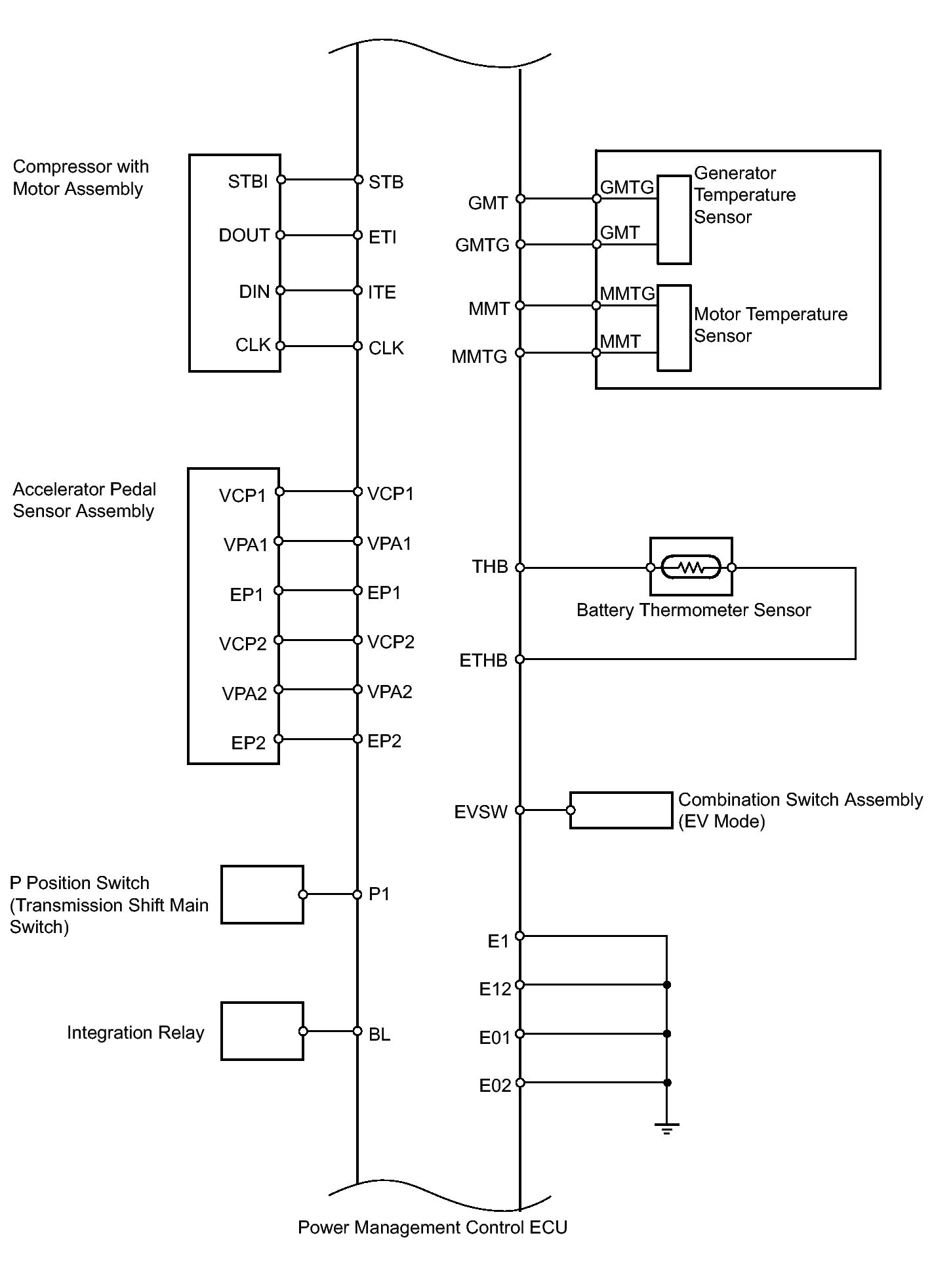

Fig 2: Identifying Hybrid Control System Wiring Diagram (2 Of 4)
GTY353006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

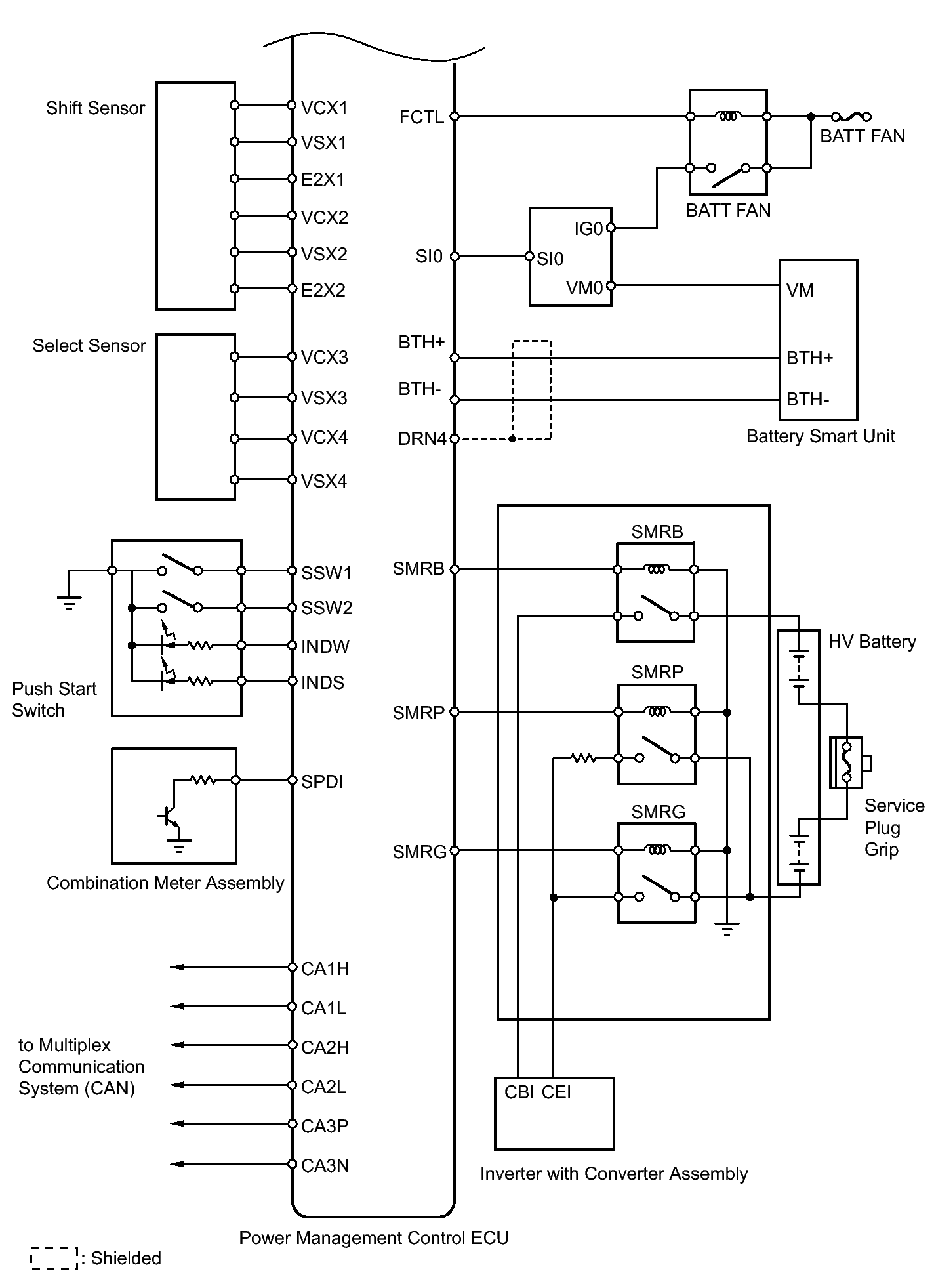

Fig 3: Identifying Hybrid Control System Wiring Diagram (3 Of 4)
GTY356019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

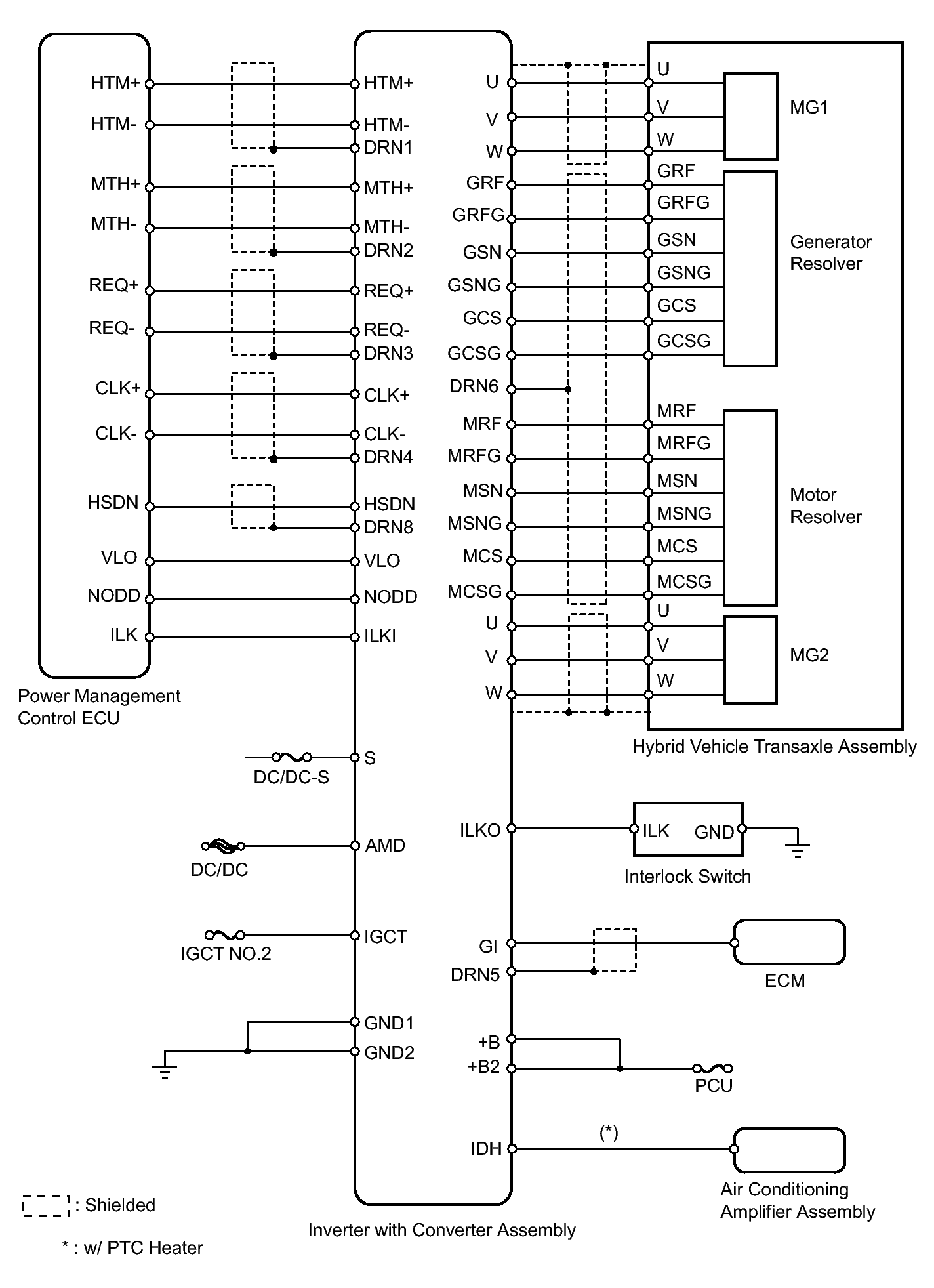

Fig 4: Identifying Hybrid Control System Wiring Diagram (4 Of 4)
GTY357724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
