Home >> Lexus >> 2010 >> SC 430 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM System Circuits >> Auto Antenna (Except USA) >> Notes

Auto Antenna (Except USA): Notes

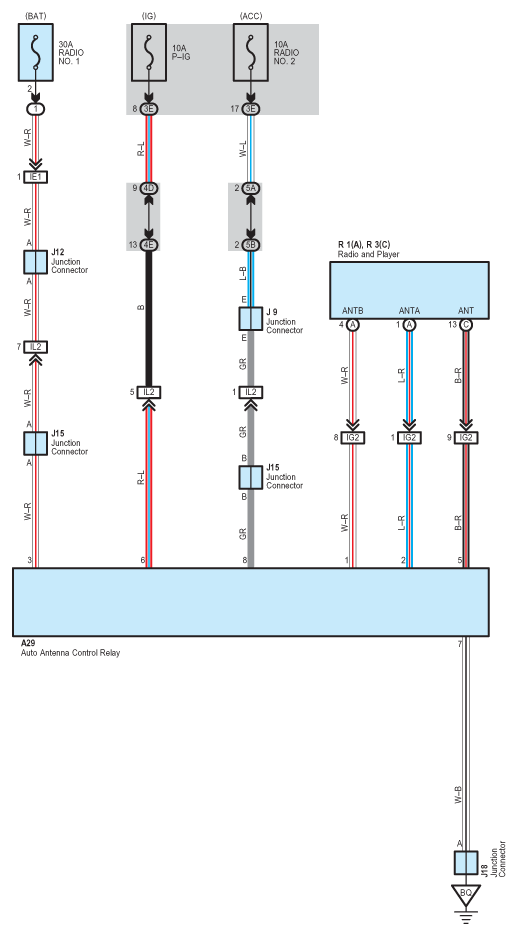

Fig 1: Auto Antenna (Except USA) - Circuit Diagram

G07606039

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
