Reverse Signal Circuit: Procedure

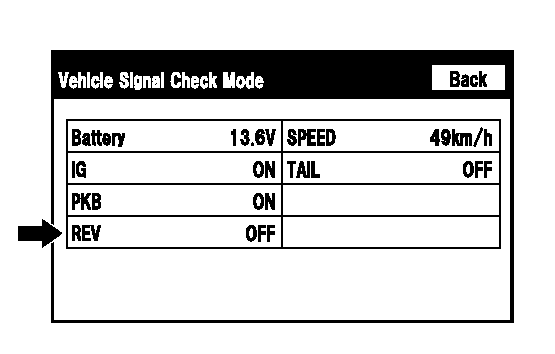

Fig 1: Identifying "Vehicle Signal Check Mode" Screen & Shift Display Operation

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Enter the "Display Check" mode and select "Vehicle Signal Check Mode". Refer to OPERATION CHECK .
2. Check that the display changes between ON and OFF according to the shift lever operation.

   OK

   Shift Lever Position	Display
   R	ON
   Except R	OFF

   HINT:

   This display is updated once per second. As a result, it is normal for the display to lag behind the actual change in the switch.

OK → See step   4

NG: Go to next step

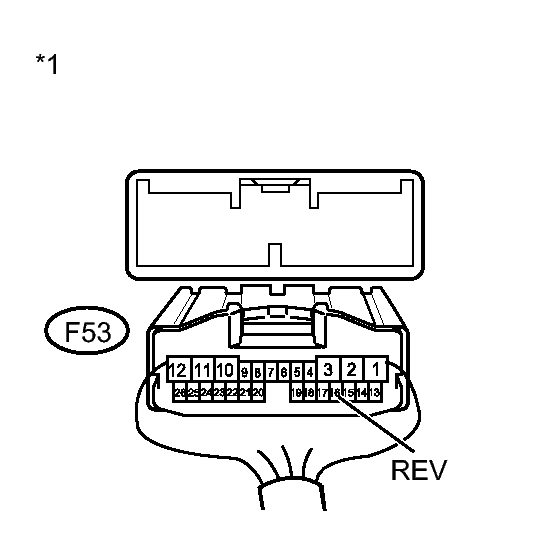

Fig 2: Identifying F53 Display Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the F53 display connector.
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   F53-16 (REV) - Body ground	Engine switch on (IG), shift lever in R	11 to 14 V
   F53-16 (REV) - Body ground	Engine switch on (IG), shift lever not in R	Below 1 V

   TEXT IN ILLUSTRATION



   *1	Component without harness connected (to Display and Navigation Module Display)

OK → See step   5

NG: Go to next step

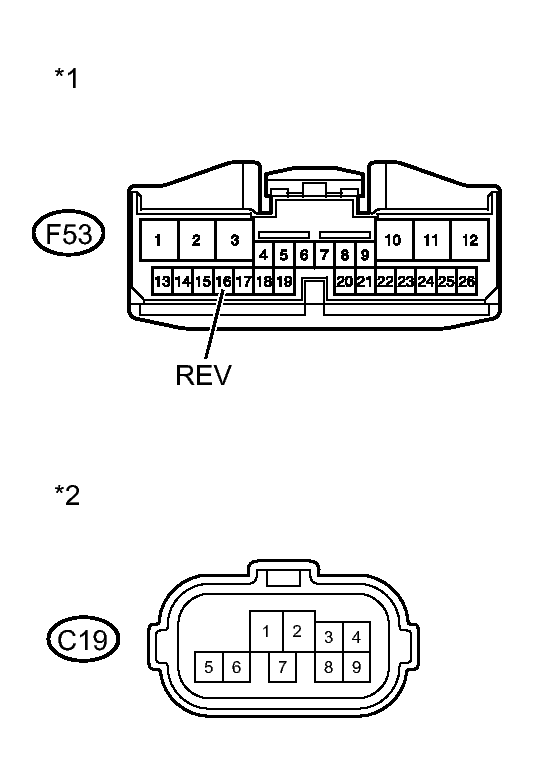

Fig 3: Identifying F53 Display & C19 Position Switch Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the F53 display connector.
2. Disconnect the C19 position switch connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F53-16 (REV) - C19-1	Always	Below 1 Ω
   F53-16 (REV) - Body ground	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Front view of wire harness connector (to Display and Navigation Module Display)
   *2	Front view of wire harness connector (to Park/Neutral Position Switch)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → REPLACE PARK/NEUTRAL POSITION SWITCH
