System Diagram

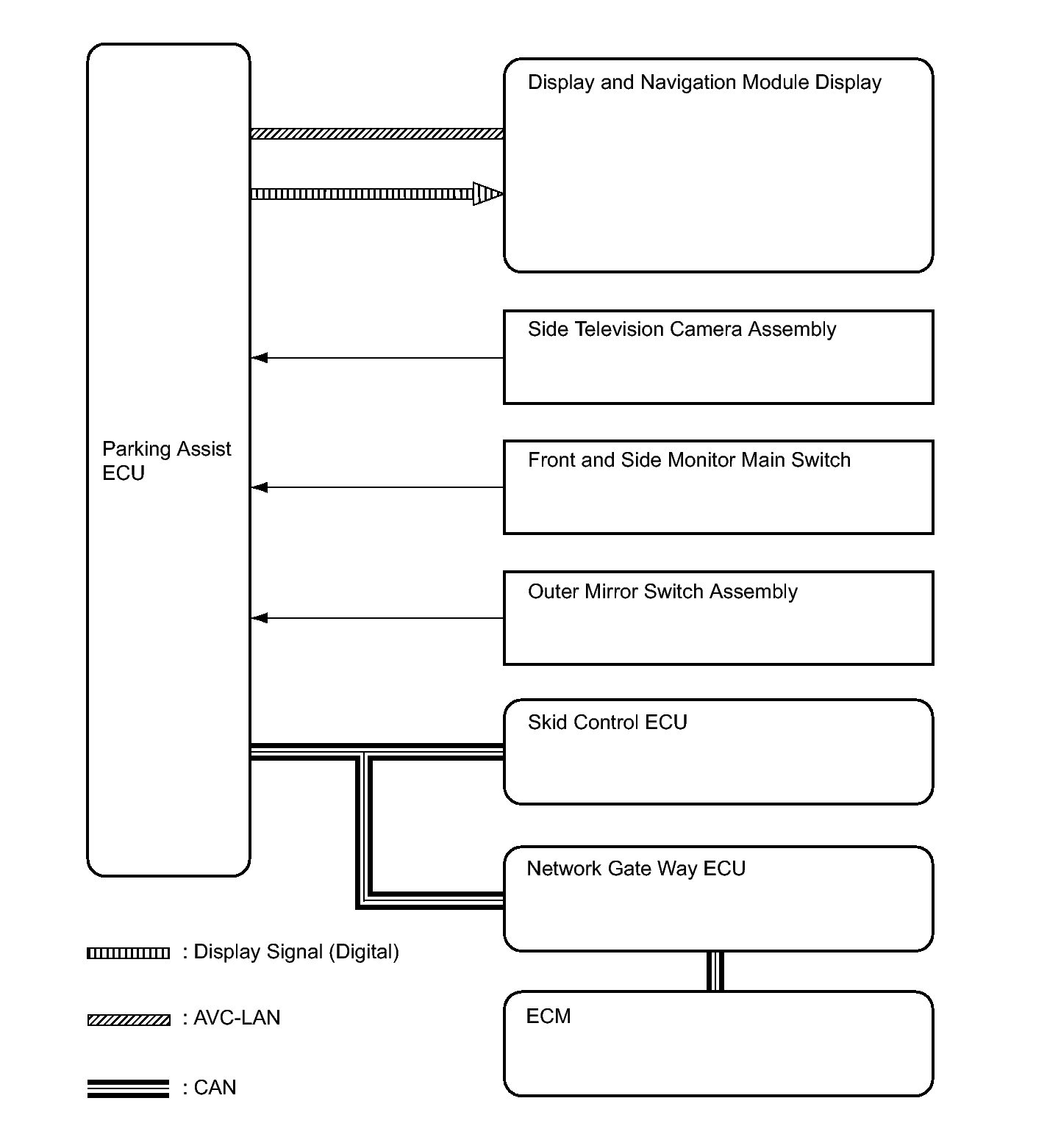

Fig 1: Side Monitor System - System Diagram
GTY273566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
Parking Assist ECU Display and Navigation Module Display Display Digital communication cable
Skid Control ECU Parking Assist ECU Vehicle speed CAN
Display and Navigation Module Display Parking Assist ECU Display switching AVC-LAN
ECM Parking Assist ECU Shift Position Signal CAN
