Rear Console Box: Installation: Installation

WARNING: This page is about a different car, the 2010 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CONSOLE BOX ASSEMBLY
1. Connect the connector.

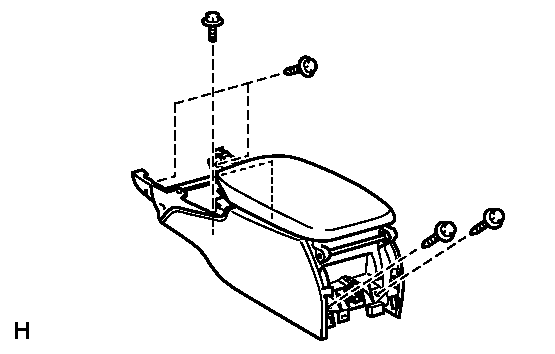

  Fig 1: Identifying Console Box, Bolts & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the console box assembly with the 4 bolts and 2 screws.
INSTALL CONSOLE BOX REGISTER ASSEMBLY
1. Engage the 4 clips to install the console box register assembly.

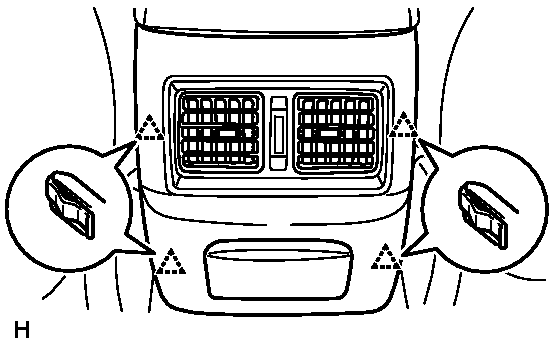

  Fig 2: Identifying Console Box Register Assembly & Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX PLATE
1. Connect the connector.

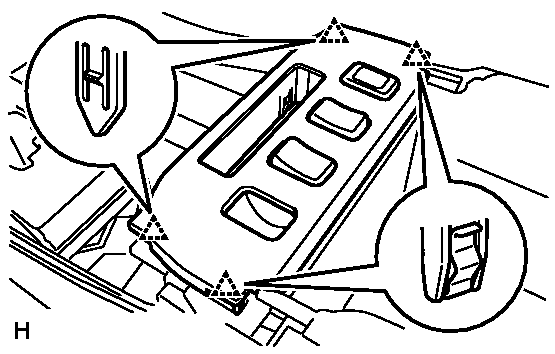

  Fig 3: Identifying Console Box Plate & Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 4 clips to install the console box plate.
INSTALL INSTRUMENT PANEL FINISH PANEL END LH
1. Engage the 4 clips and 3 claws to install the instrument panel finish panel end LH.

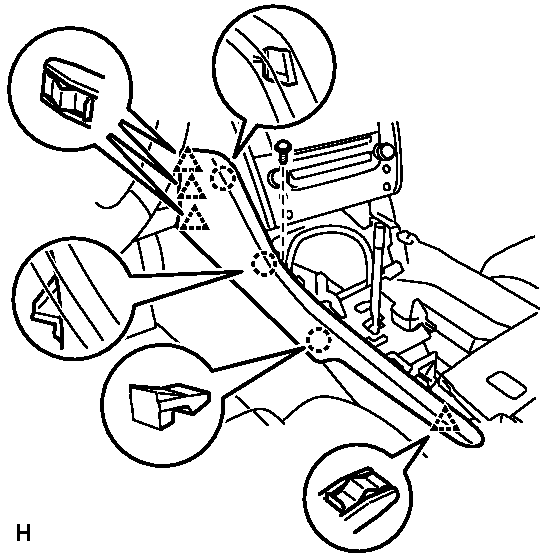

  Fig 4: Identifying Instrument Panel Finish Panel End LH, Clips & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the screw.
INSTALL INSTRUMENT PANEL FINISH PANEL END RH
1. Engage the 3 clips and 3 claws to install the instrument panel finish panel end RH.

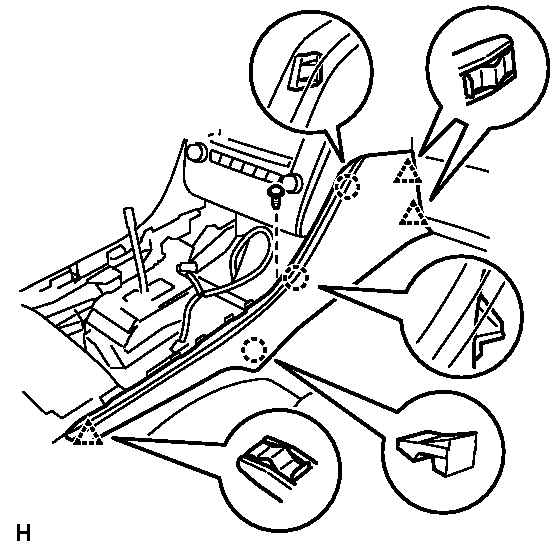

  Fig 5: Identifying Instrument Panel Finish Panel End RH, Clips & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the screw.
INSTALL CONSOLE UPPER PANEL ASSEMBLY
1. Connect the connector.

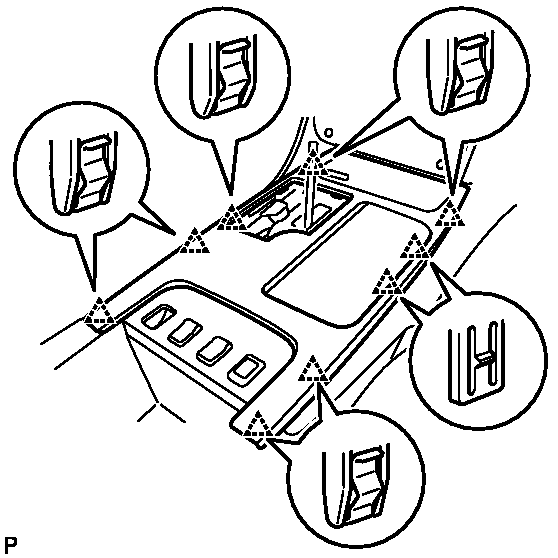

  Fig 6: Identifying Console Upper Panel Assembly & Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 9 clips to install the console upper panel assembly.
3. Install the shift lever knob and turn it in the direction indicated by the arrow.

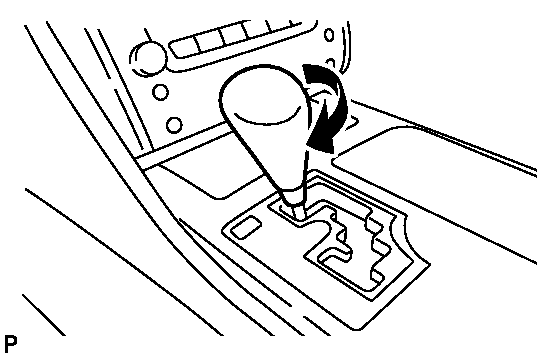

  Fig 7: Installing Shift Lever Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT CONSOLE UPPER PANEL GARNISH . Refer toINSTALLATION - Step 24
