INSTALL INJECTOR DRIVER
NOTE:
- Be careful not to drop or strike the injector driver.
- The injector driver is grounded at the bolt and nut. To ensure that it is grounded, clean all oil and foreign matter from the installation areas of the injector driver and engine before installing the injector driver.
1. Install the injector driver with the bolt and 2 nuts.

  Fig 1: Locating Injector Driver Bolt And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
2. Connect the 4 injector driver connectors.

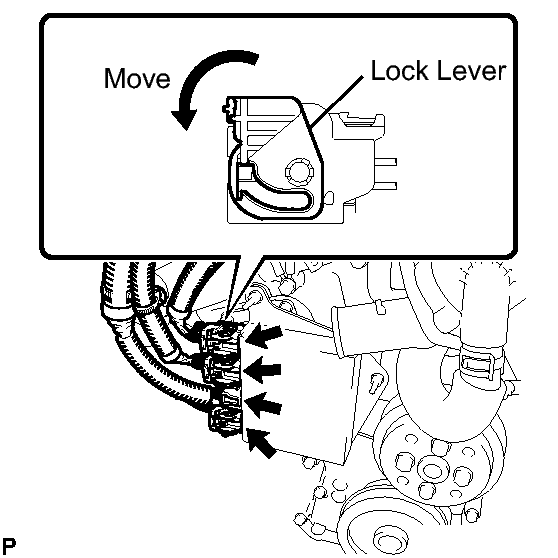

  Fig 2: Locating Injector Driver Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Connect the 3 connectors with wire harness locks and the connector to the injector driver. Move the lock lever in the direction indicated by the arrow to lock the connector.
    NOTE:
    Connect the connector securely.
INSTALL NO. 1 ENGINE COVER
1. Install the cover with the 3 clips.

  Fig 3: Locating Clips And Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 4 connectors.
INSTALL AIR CLEANER INLET
1. Install the air cleaner inlet with the bolt.

  Fig 4: Locating Air Cleaner Inlet Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
INSTALL COOL AIR INTAKE DUCT SEAL . Refer to INSTALLATION - Step 34
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSTALL SERVICE PLUG GRIP . Refer to INSTALLATION - Step 33
PERFORM INITIALIZATION
1. Perform initialization. Refer to INITIALIZATION .
  NOTE:
  Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
