DTC P0617: Starter Relay Circuit High: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG) and turn the Techstream on.
3. Enter the following menus: Powertrain / Engine / Data List / Starter Signal.
4. Check the value displayed on the Techstream when the engine switch is turned on (IG) and the engine is started.

   OK

   Condition	Techstream Display
   Engine switch on (IG)	Close (Starter signal OFF)
   Engine started	Open (Starter signal ON)

NG → See step   2

OK → See step   3

1. Inspect the park/neutral position switch.

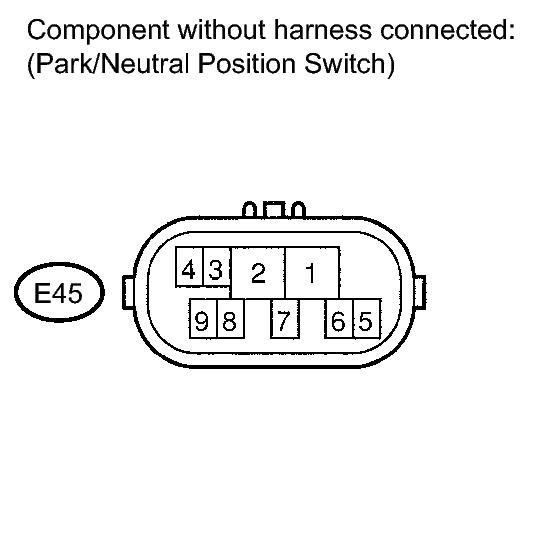

   Fig 1: Identifying Park/Neutral Position Switch Connector E45

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Disconnect the switch connector.
   2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection	Shift Lever Position	Specified Condition
      4 - 5	P	Below 1 Ω
      4 - 5	N	Below 1 Ω

   3. Reconnect the park/neutral position switch connector.

NG → See step   4

OK → See step   5
