Engine Unit: Components: Illustration

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (1 Of 11)
GTY140805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

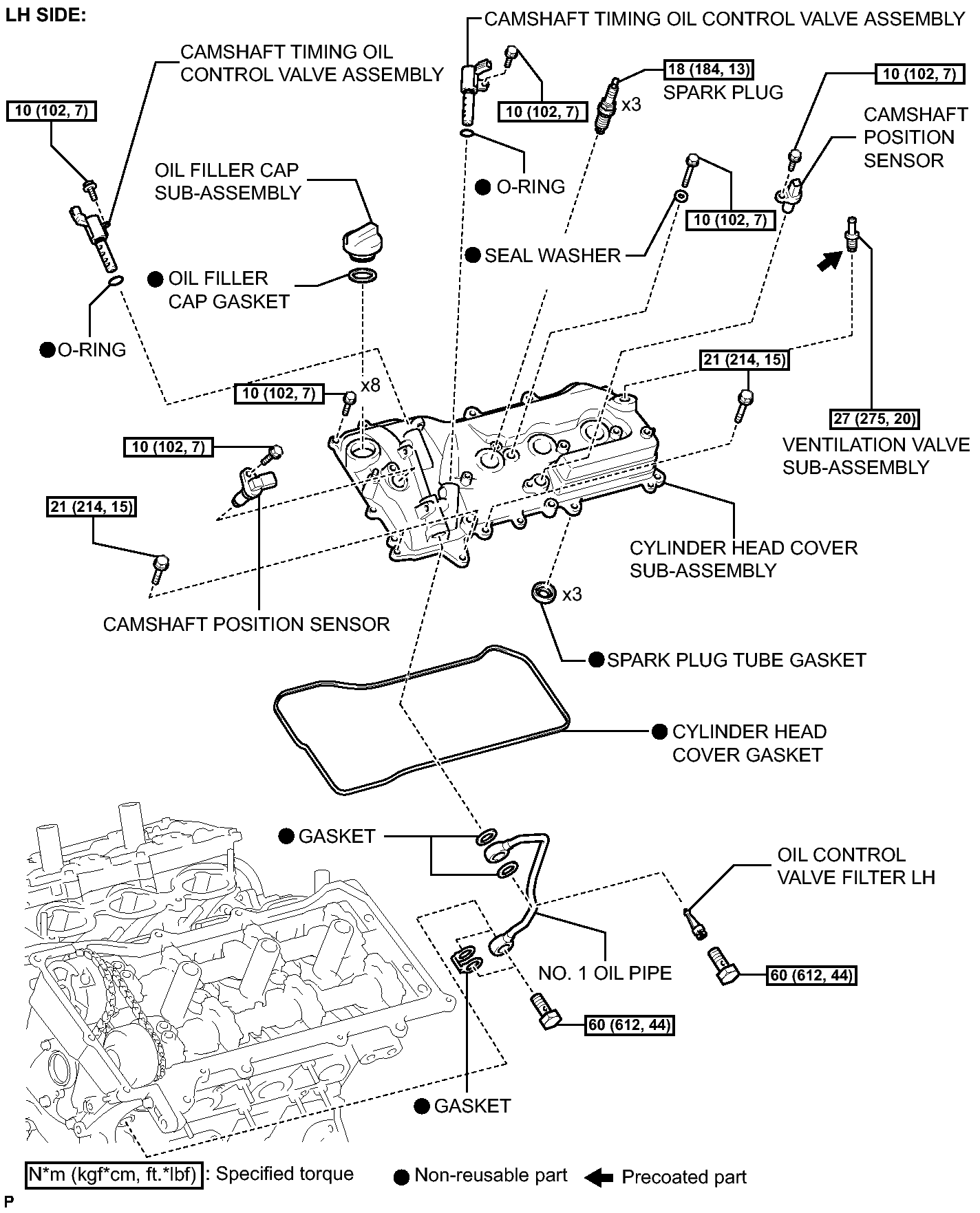

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (2 Of 11)
GTY132122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (3 Of 11)
GTY146392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

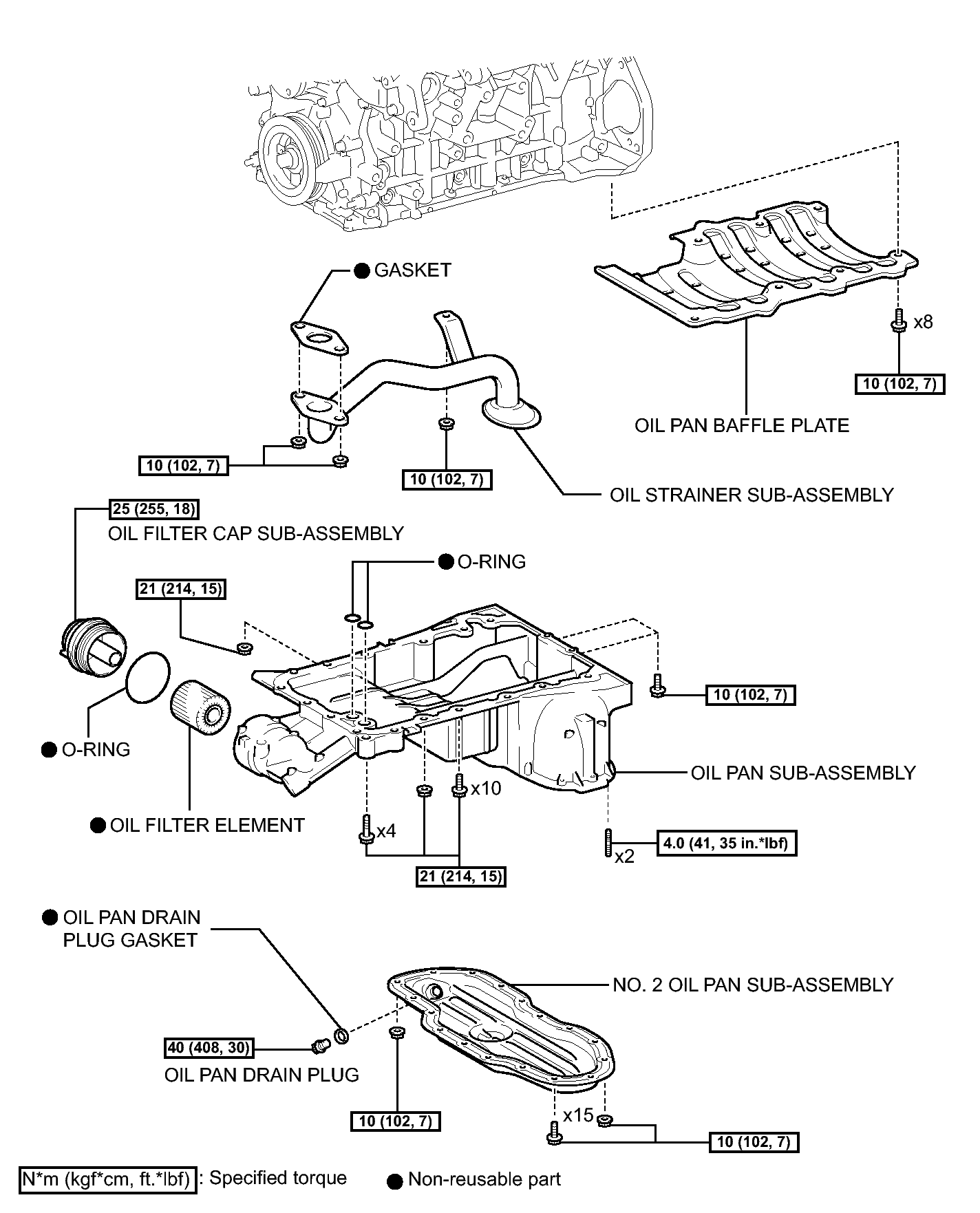

Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (4 Of 11)
GTY134754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (5 Of 11)
GTY127838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (6 Of 11)
GTY145818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (7 Of 11)
GTY135580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (8 Of 11)
GTY142660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (9 Of 11)
GTY145819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (10 Of 11)
GTY145820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Exploded View Of Engine Unit Replacement Components With Torque Specifications (11 Of 11)
GTY146257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
