Fuel Lid Opener

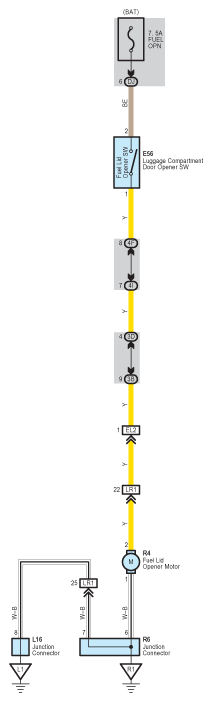

Fig 1: Fuel Lid Opener - Circuit Diagram
G07550549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
