Rear Speed Sensor: Installation: Installation

INSTALL REAR AXLE HUB AND BEARING ASSEMBLY WITH SKID CONTROL SENSOR
1. Install the rear axle hub and bearing assembly with skid control sensor. Refer to INSTALLATION - Step 5 .
  HINT:
  - The skid control sensor is a component of the rear axle hub and bearing assembly. If the skid control sensor needs to be replaced, replace the rear axle hub and bearing assembly.
  - If the sensor rotor needs to be replaced, replace it together with the rear axle hub and bearing assembly.
INSPECT REAR AXLE HUB BEARING LOOSENESS . Refer to ON-VEHICLE INSPECTION - Step 4
INSPECT REAR AXLE HUB RUNOUT . Refer to ON-VEHICLE INSPECTION - Step 5
INSTALL REAR DISC . Refer to REASSEMBLY - Step 10
INSTALL REAR DISC BRAKE CALIPER ASSEMBLY . Refer to INSTALLATION - Step 9
CONNECT SKID CONTROL SENSOR WIRE
1. Connect the connector to the skid control sensor.

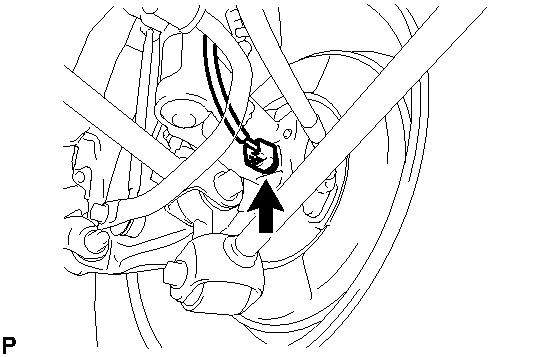

  Fig 1: Locating Skid Control Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Be careful not to damage the speed sensor.
INSTALL REAR WHEEL
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSPECT AND ADJUST REAR WHEEL ALIGNMENT
HINT:

Refer to the procedure from Inspect and Adjust Rear Wheel Alignment. Refer to ADJUSTMENT .
CHECK SPEED SENSOR SIGNAL
HINT:

Check speed sensor signal. Refer to TEST MODE PROCEDURE .
