Parts Location: Illustration

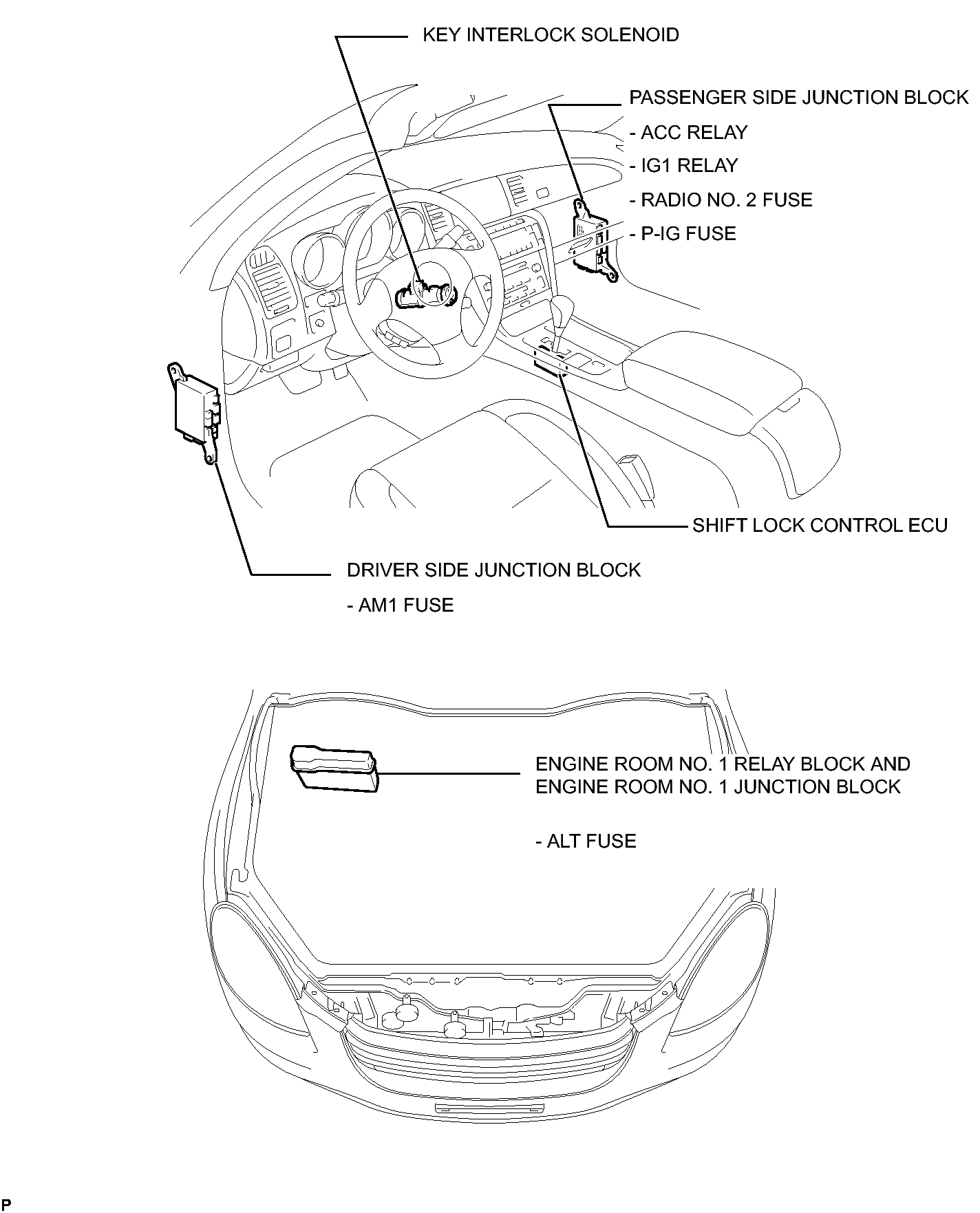

Fig 1: Identifying Shift Lock System Components

GTY123010

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
