Installation (To 10/2008): Installation

  1. INSTALL FLOOR SHIFT ASSEMBLY
    1. Install the floor shift assembly with the 4 bolts.

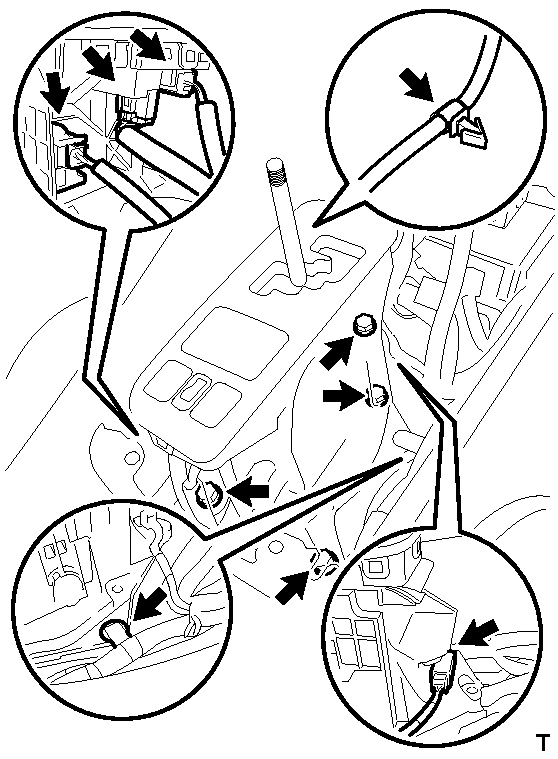

      Fig 1: Locating Bolts And Floor Shift
      GTY112715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)

    2. Install the 2 wire harness clamps to the floor shift assembly.
    3. Connect the 4 connectors.
      NOTE:

      Do not pinch the wire harness.

  2. CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
    1. Temporarily connect the shifting rod to the connecting rod swivel with the nut.
      Fig 2: Locating Floor Shift Gear Shifting Rod Sub-Assembly Nut
      GTY149396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The nut will be tightened to a torque specification during the shift lever position adjustment procedure.

  3. INSTALL CONSOLE BOX ASSEMBLY
    1. Install the console box assembly. Refer to INSTALLATION .
  4. ADJUST SHIFT LEVER POSITION
    1. Adjust the shift lever position. Refer to ADJUSTMENT .
  5. INSPECT SHIFT LEVER POSITION
    1. Inspect the shift lever position. Refer to ON-VEHICLE INSPECTION .
  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  7. PERFORM INITIALIZATION
    1. Perform initialization. Refer to INITIALIZATION .
      NOTE:

      Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
