System Diagram

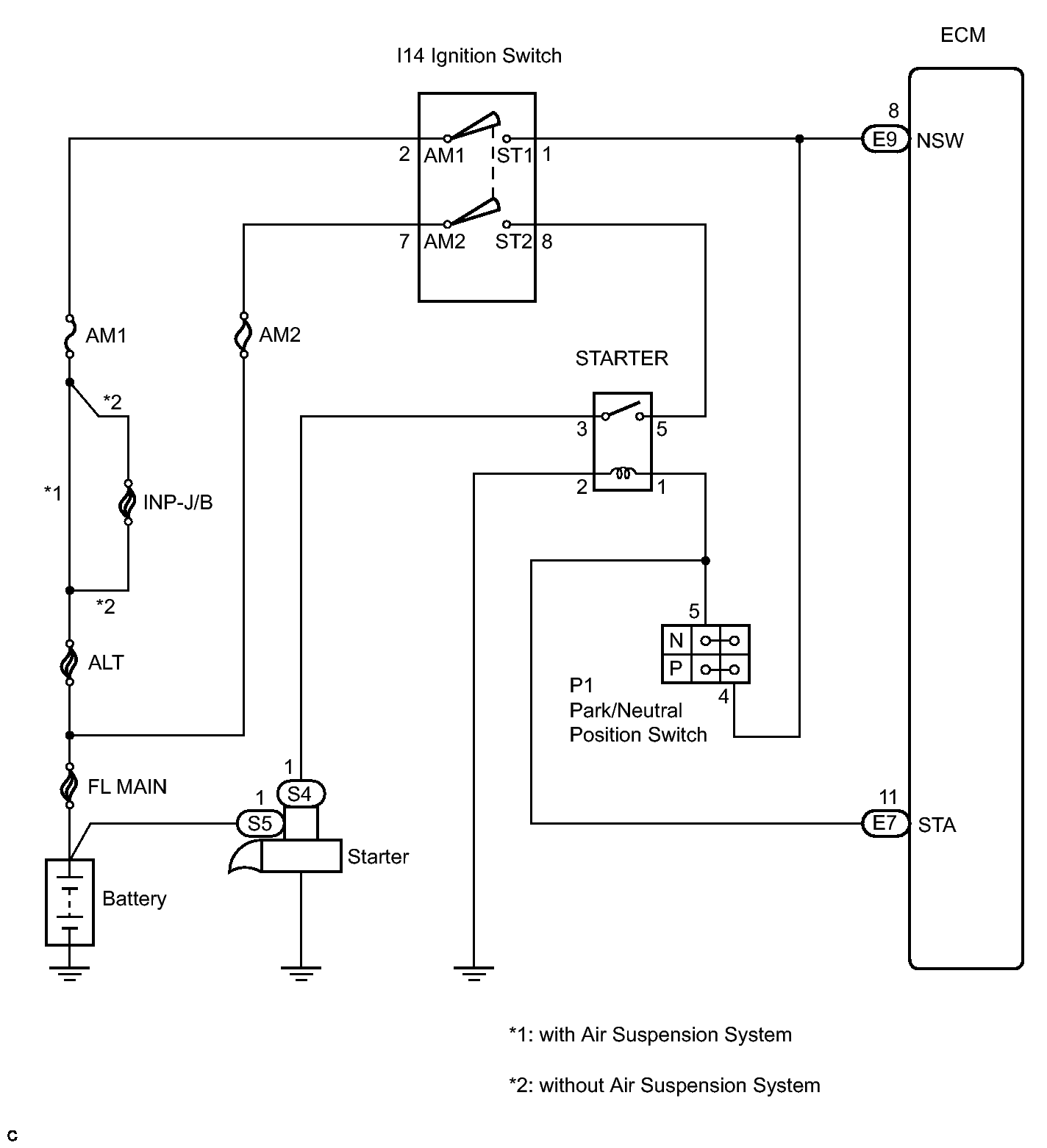

Fig 1: Identifying Starting System Diagram

GTY122373

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
