Speed Sensor: Components: Illustration

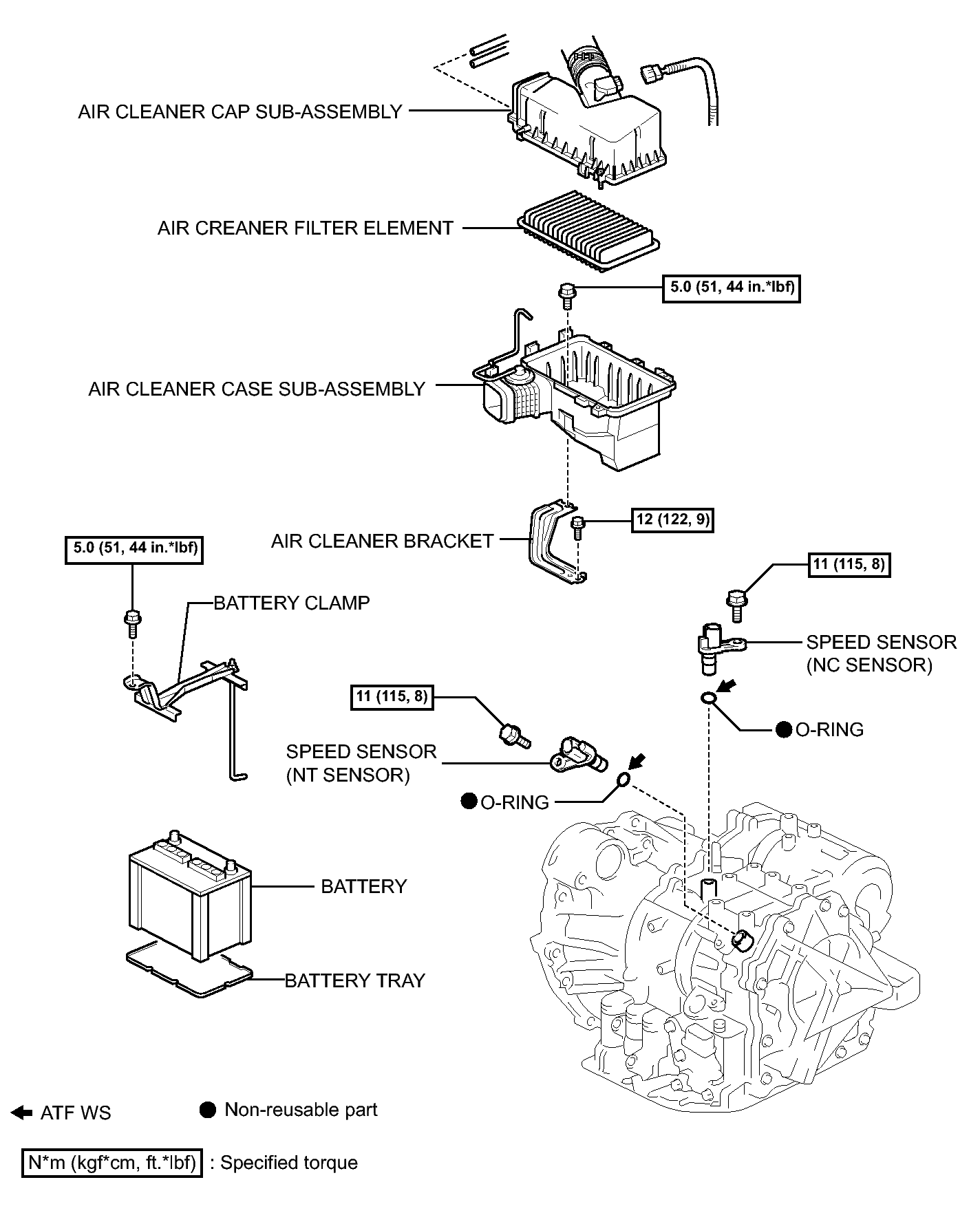

Fig 1: Identifying Speed Sensor Replacement Components With Torque Specifications

GTY128569

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
