Seat Position Sensor: Removal

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT SEAT ASSEMBLY LH
    1. Remove the front seat (see REMOVAL ).
  2. REMOVE SEAT POSITION AIRBAG SENSOR
    1. Using a T30 "TORX" socket wrench, remove the "TORX" screw and seat position sensor with sensor protector.
    2. Disconnect the connector.

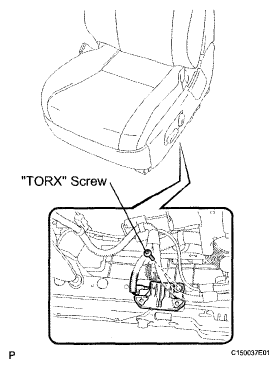

      Fig 1: Identifying Seat Position Airbag Sensor Screw
      G04951331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the seat slide position sensor protector from the seat position sensor.
