System Diagram

WARNING: This page is about a different car, the 2010 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.

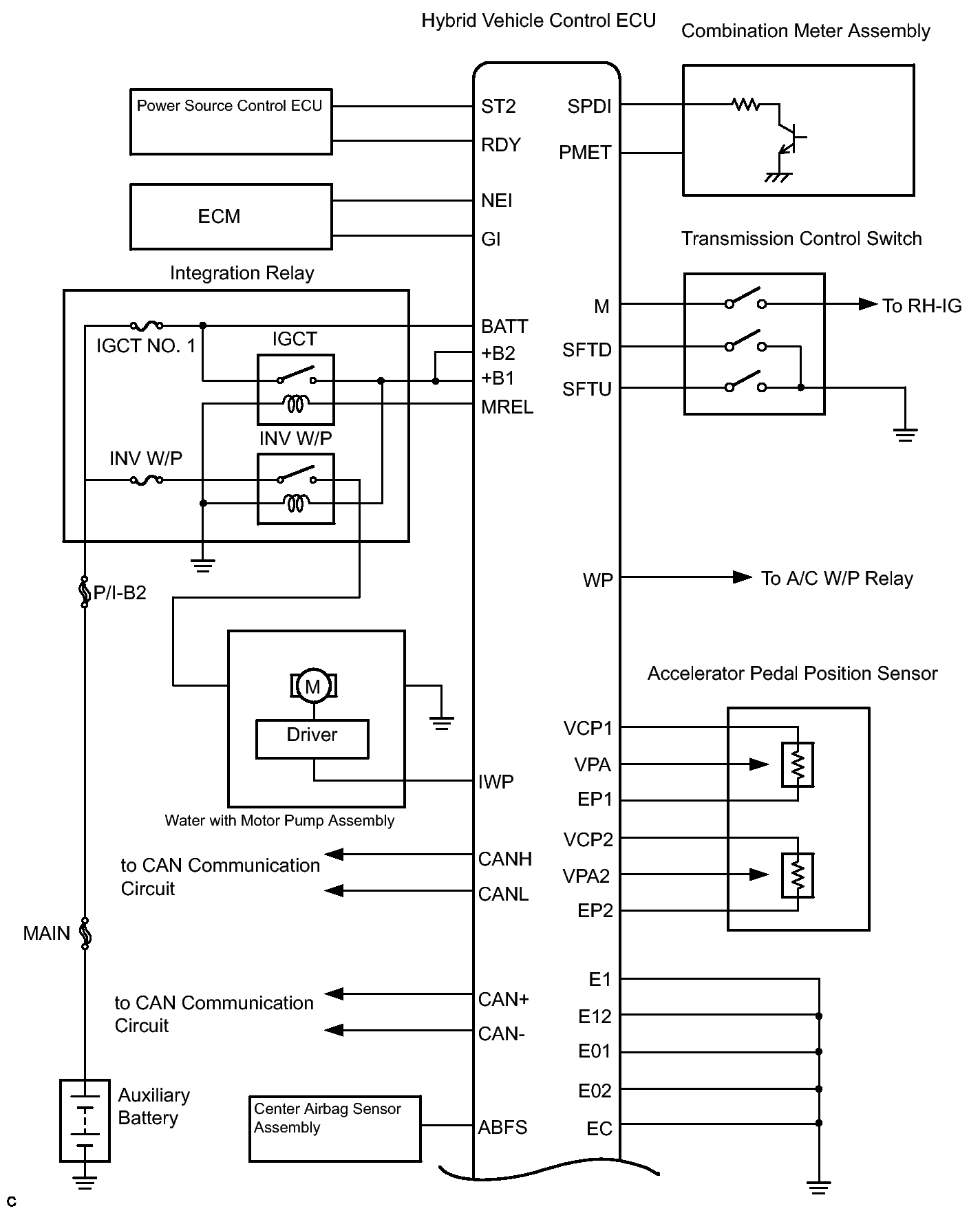

Fig 1: Hybrid Control System - System Diagram (1 Of 4)
GTY135619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

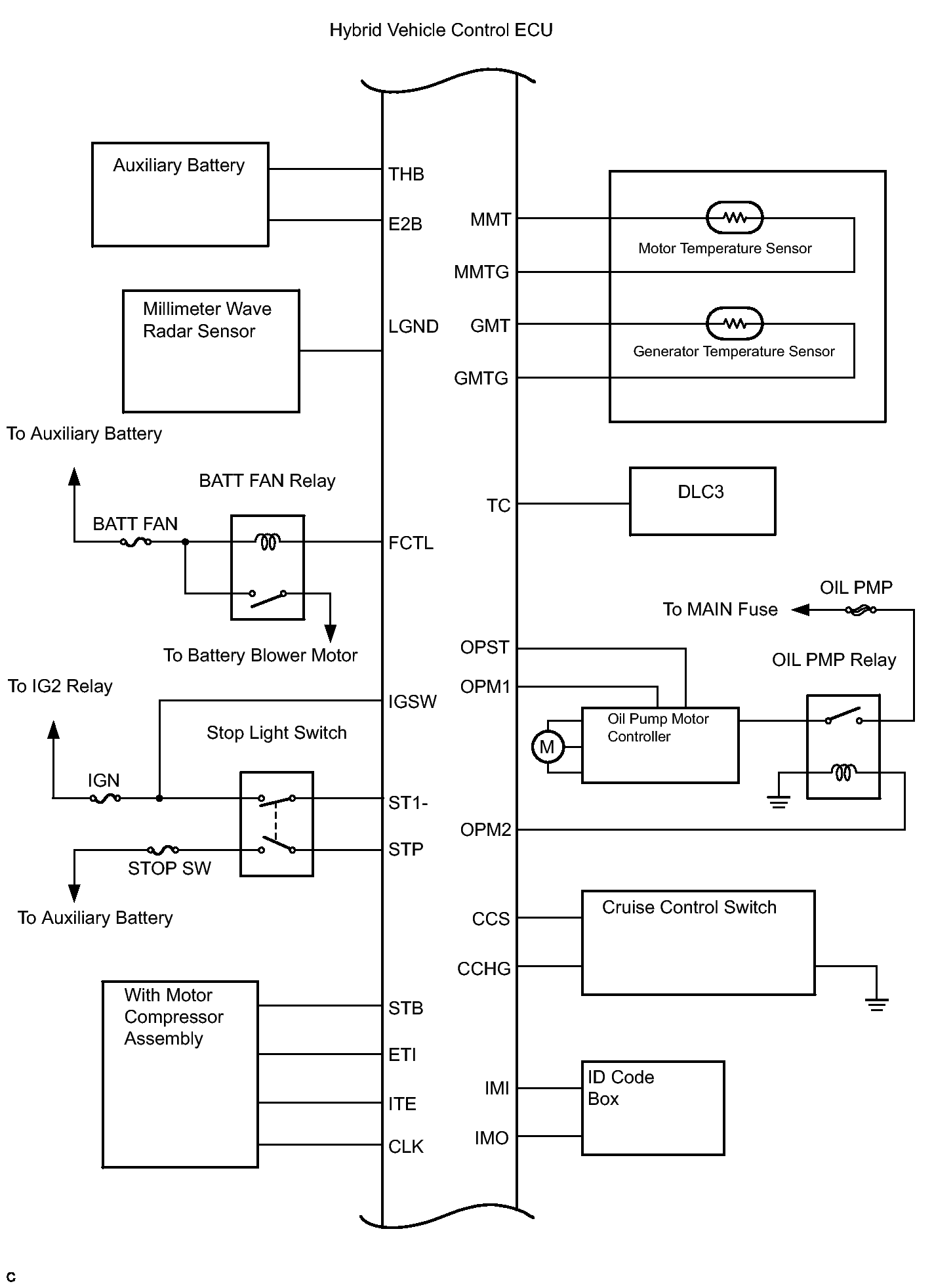

Fig 2: Hybrid Control System - System Diagram (2 Of 4)
GTY134654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

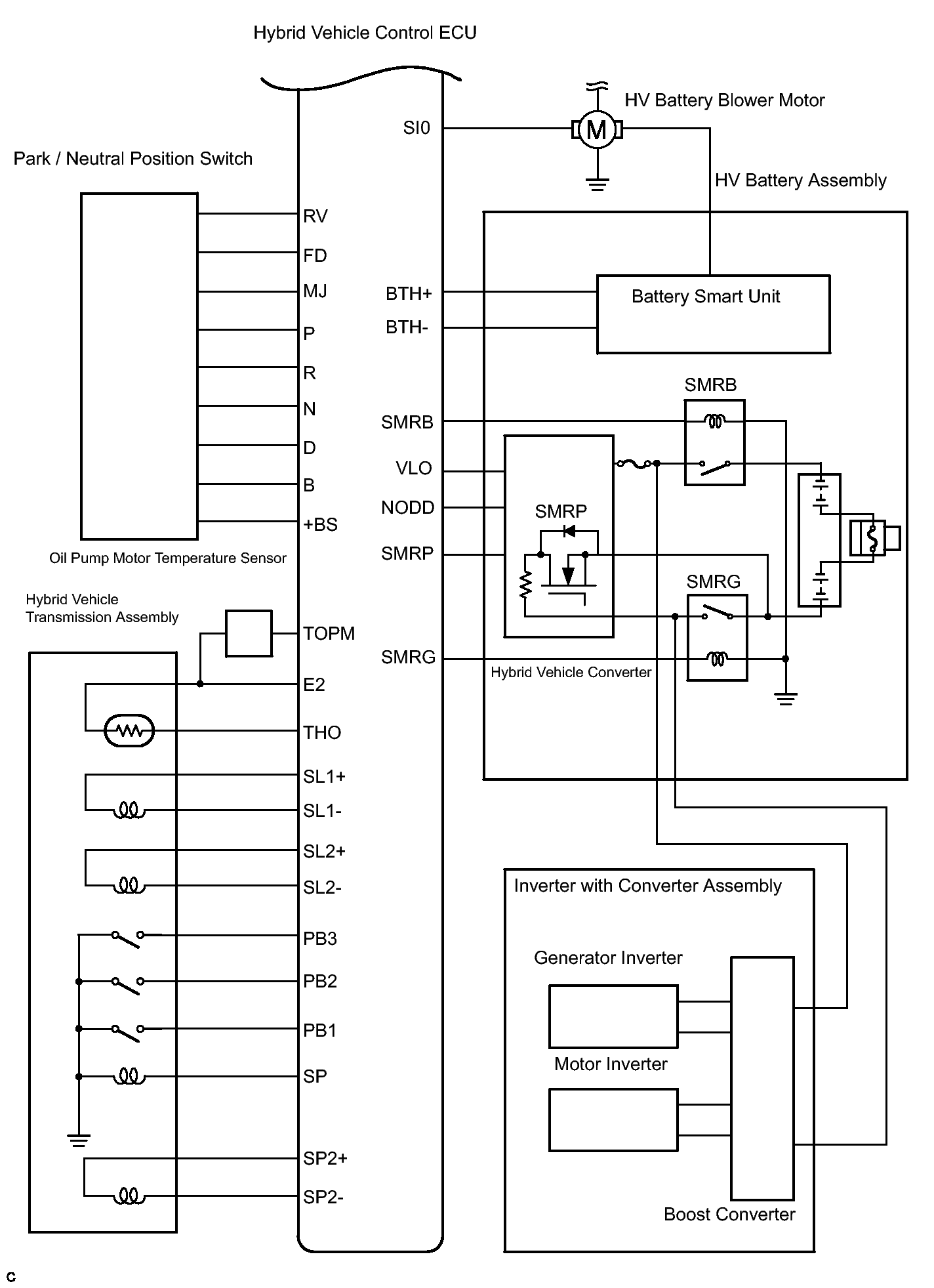

Fig 3: Hybrid Control System - System Diagram (3 Of 4)
GTY147396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

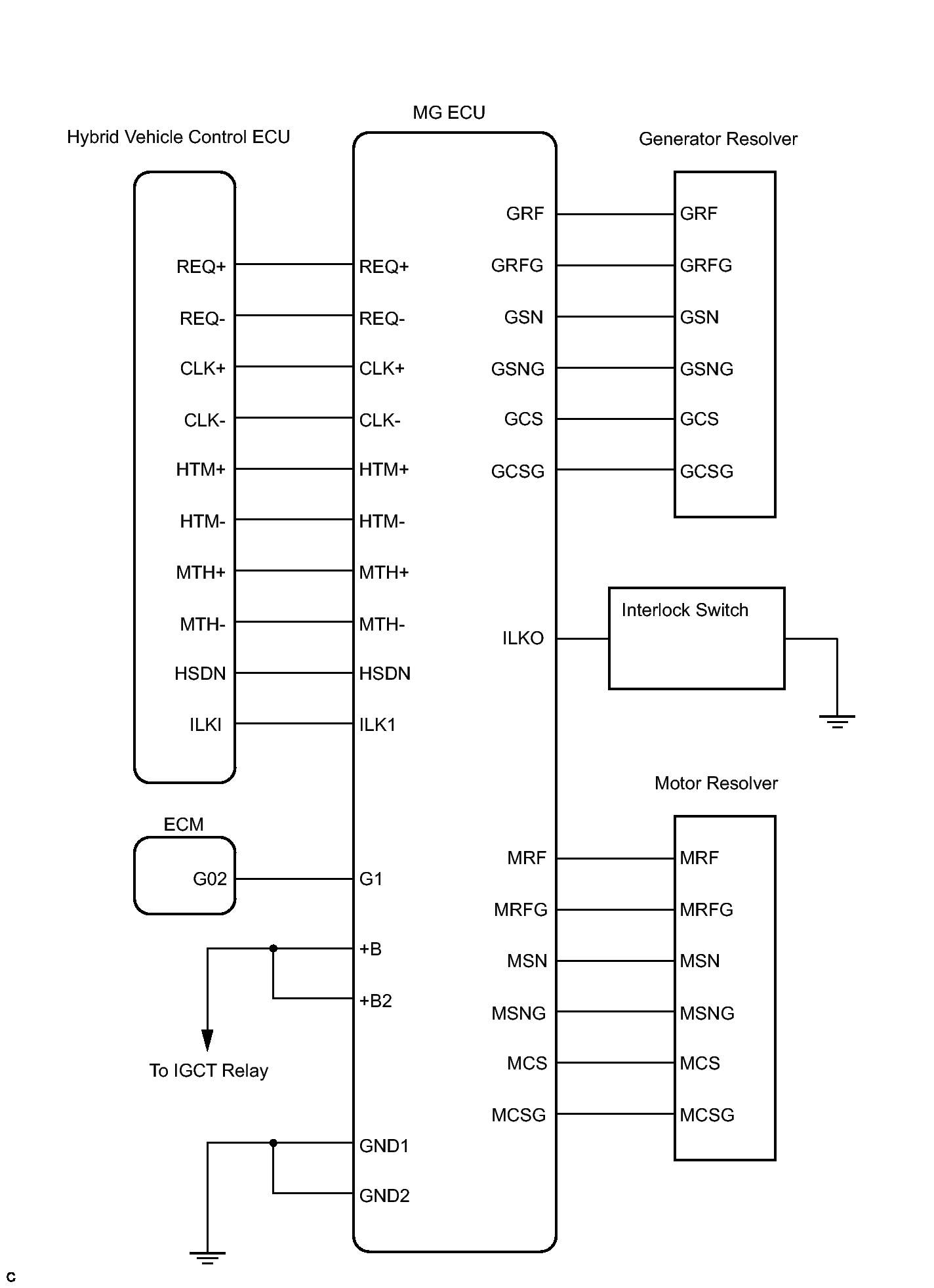

Fig 4: Hybrid Control System - System Diagram (4 Of 4)
GTY122226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
