Battery Smart Unit: Installation: Installation

WARNING: This page is about a different car, the 2010 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL BATTERY SMART UNIT
    1. Install the battery smart unit to the battery carrier with the nut.

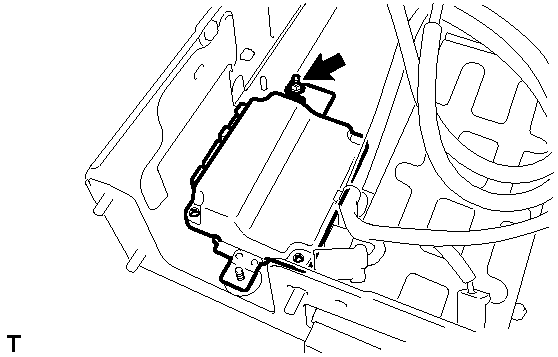

      Fig 1: Identifying Battery Smart Unit & Nut
      GTY132975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      WARNING:

      Wear insulated gloves.

  2. INSTALL HV RELAY ASSEMBLY  See step  2
  3. INSTALL NO. 6 BATTERY CARRIER PANEL  See step  20
  4. INSTALL BATTERY CARRIER SUB-ASSEMBLY  See step  21
  5. INSTALL BATTERY BRACKET SUB-ASSEMBLY  See step  22
  6. CONNECT FRAME WIRE  See step  23
  7. INSTALL NO. 3 HV BATTERY EXHAUST DUCT  See step  24
  8. REMOVE TOOL BOX
  9. INSTALL LUGGAGE COMPARTMENT FRONT TRIM COVER  . Refer toINSTALLATION - Step 4
  10. INSTALL ROPE HOOK ASSEMBLY  See step  30
  11. INSTALL TOOL BOX
  12. INSTALL LUGGAGE COMPARTMENT TRIM SIDE COVER RH
  13. INSTALL SERVICE PLUG GRIP  See step  33
  14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  15. INSTALL BATTERY SERVICE HOLE COVER LH  See step  35
  16. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
  17. PERFORM INITIALIZATION
    1. Perform initialization procedure. Refer toINITIALIZATION .
      NOTE:

      Some vehicle systems require initialization after reconnecting the cable to the negative battery terminal.
