Power Steering Ecu: Components: Illustration

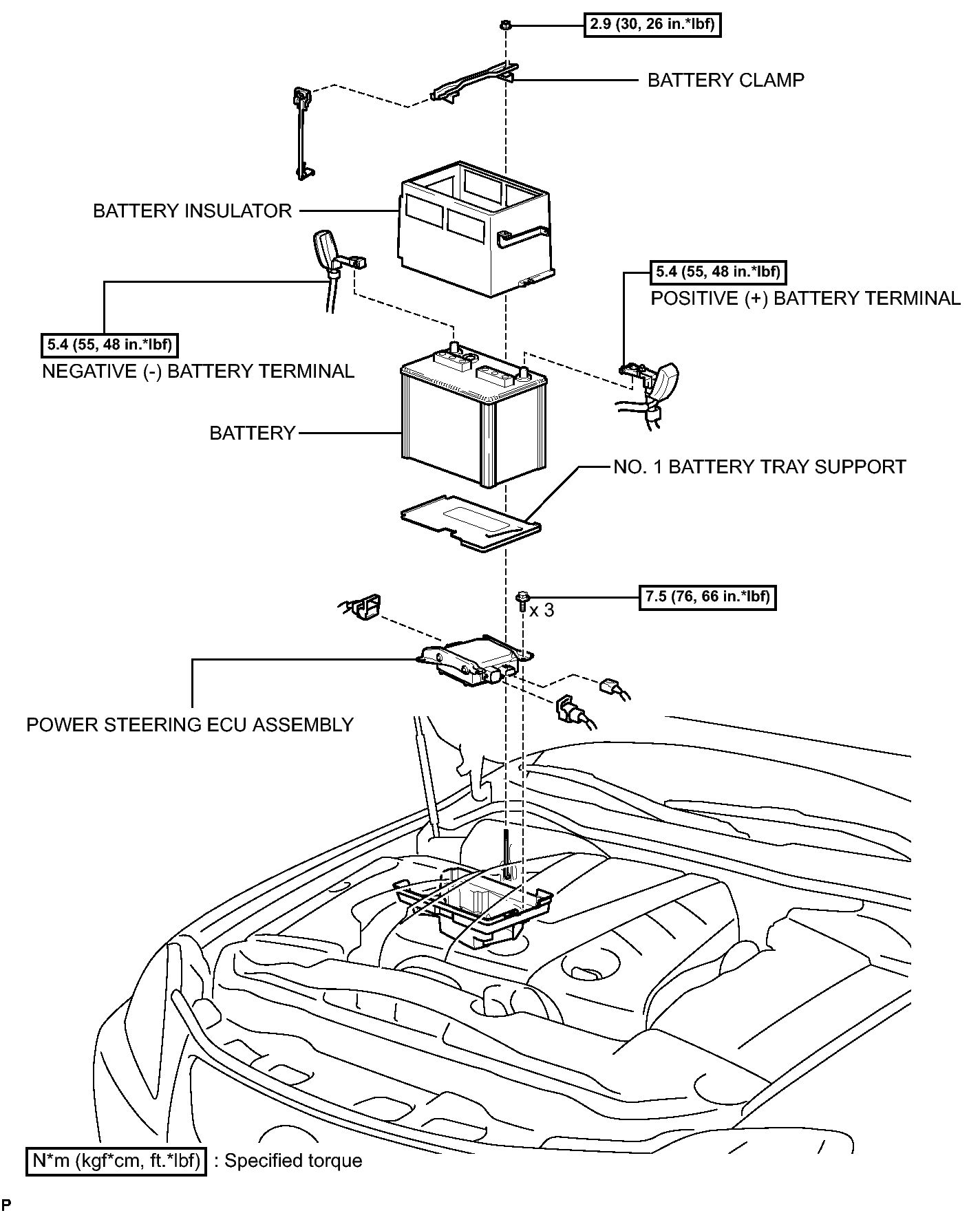

Fig 1: Identifying Power Steering ECU Replacement Components with Torque Specifications

GTY108947

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
