Front Door Lock: Components: Illustration

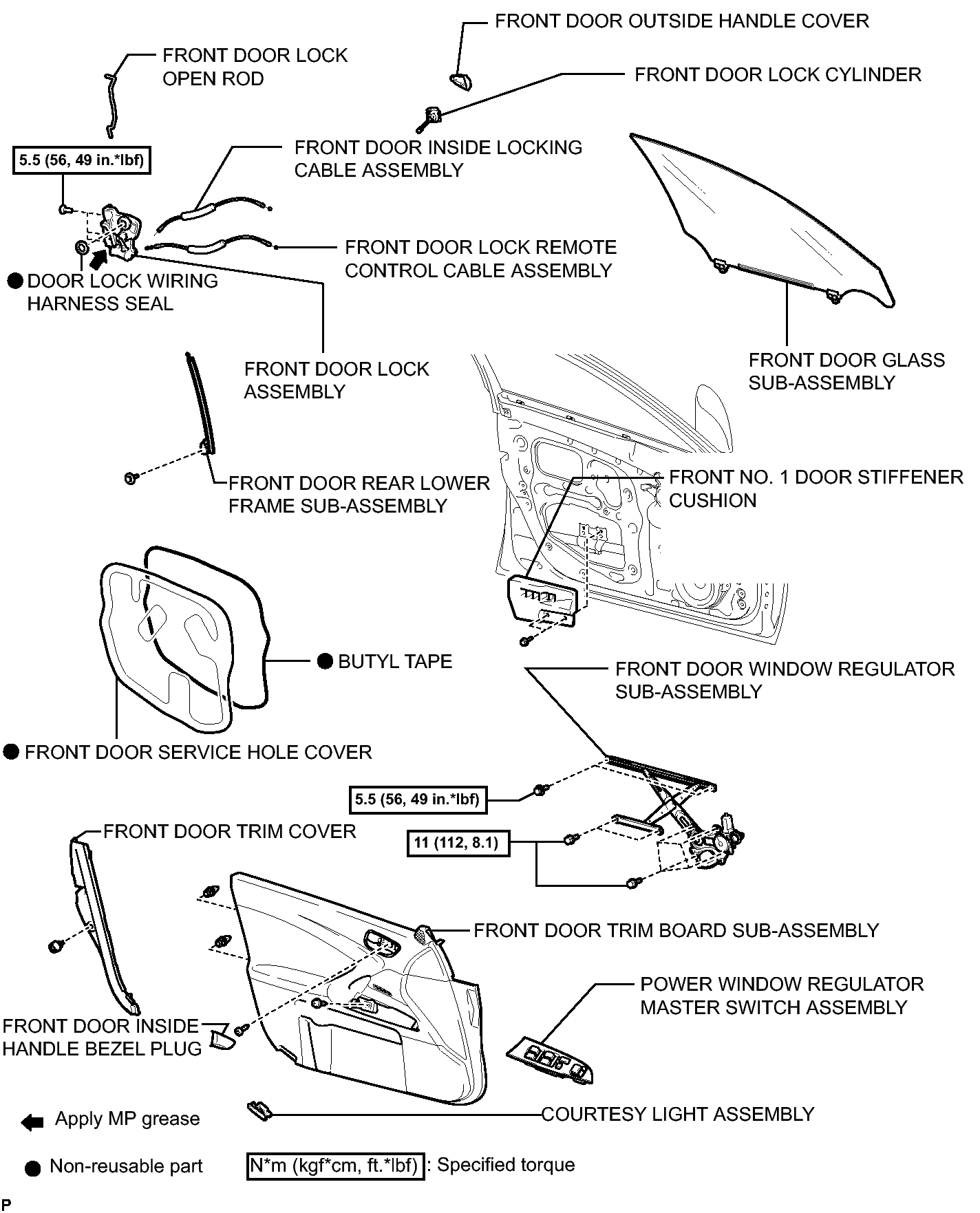

Fig 1: Identifying Front Door Lock Replacement Components With Torque Specifications

GTY118698

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
