Navigation (Service Information): Multi-Display: Installation: Installation

  1. INSTALL MULTI-DISPLAY
  2. INSTALL CLOCK ASSEMBLY  . Refer to INSTALLATION - Step 6
  3. INSTALL NAVIGATION ECU  See step  1
  4. INSTALL MULTI-DISPLAY ASSEMBLY
    1. Install the multi-display assembly as shown in the illustration.

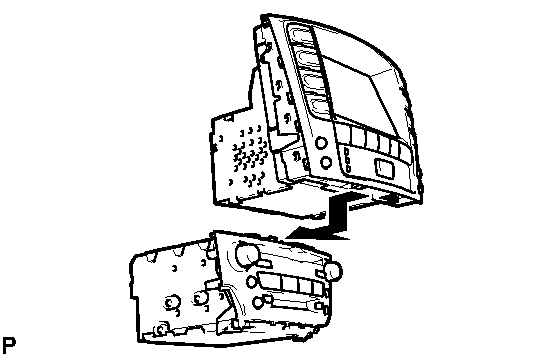

      Fig 1: Identifying Multi-Display Assembly
      GTY144137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 2 RADIO BRACKET  . Refer to INSTALLATION - Step 6
  6. INSTALL NO. 1 RADIO BRACKET  . Refer to INSTALLATION - Step 7
  7. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY  . Refer to INSTALLATION - Step 8
  8. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL  . Refer to INSTALLATION - Step 40
  9. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY  . Refer to INSTALLATION - Step 41
  10. INSTALL CONSOLE BOX  . Refer to INSTALLATION - Step 42
  11. INSTALL CONSOLE BOX REGISTER ASSEMBLY  . Refer to INSTALLATION - Step 43
  12. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY  . Refer to INSTALLATION - Step 44
  13. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  . Refer to INSTALLATION - Step 45
  14. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)  . Refer to INSTALLATION - Step 46
  15. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)  . Refer to INSTALLATION - Step 47
  16. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)  . Refer to INSTALLATION - Step 48
  17. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)  . Refer to INSTALLATION - Step 49
  18. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
  19. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
  20. ADJUST CLOCK
