Cylinder Head: Components

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

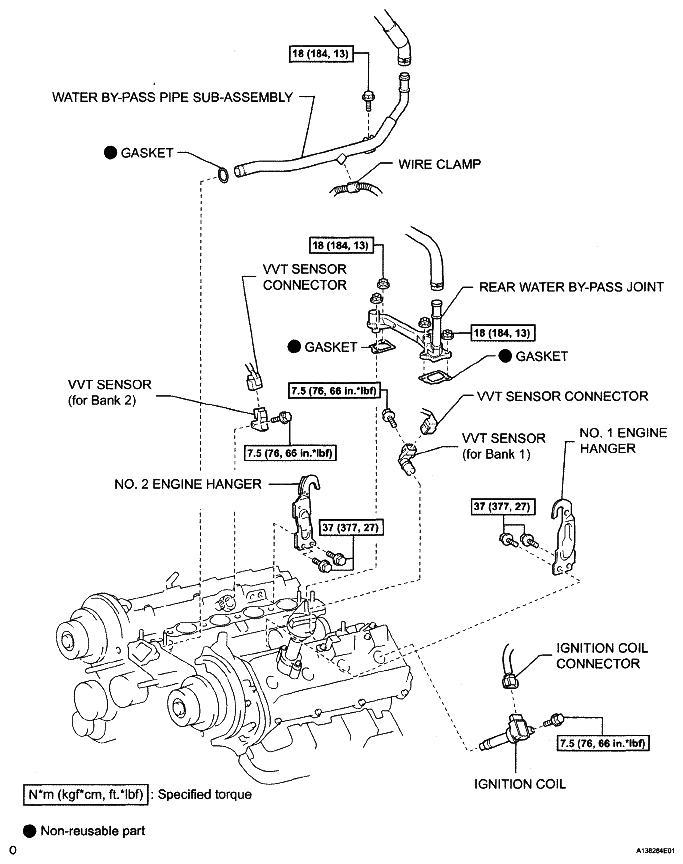

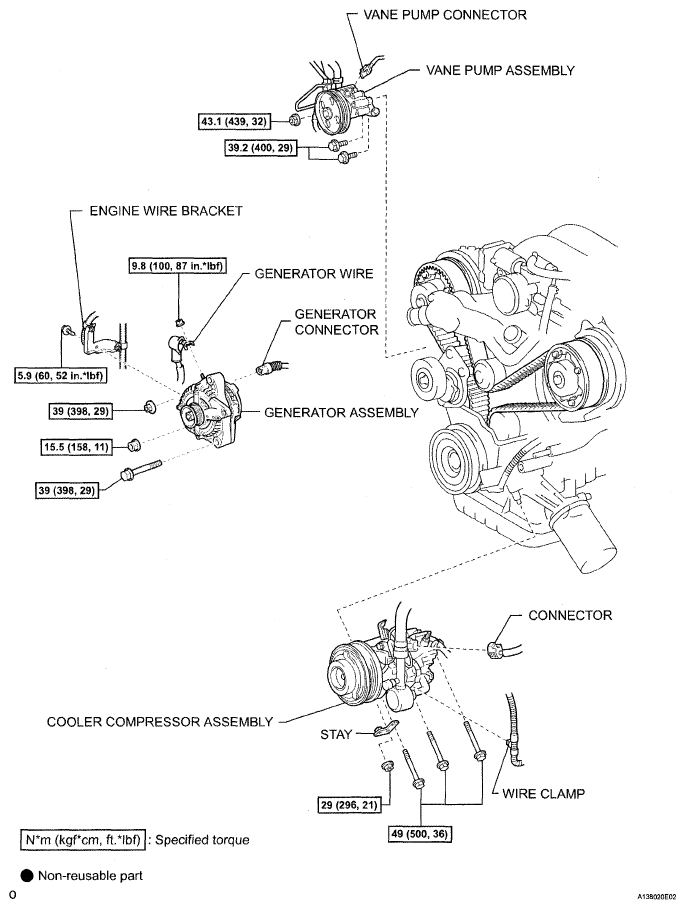

Fig 1: Cylinder Head Replacement Components With Torque Specifications (1 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

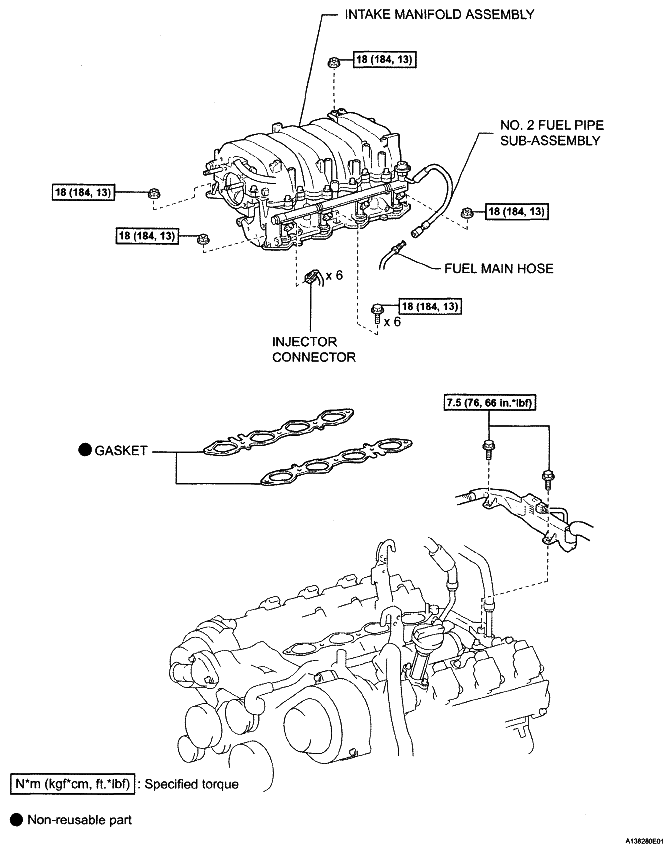

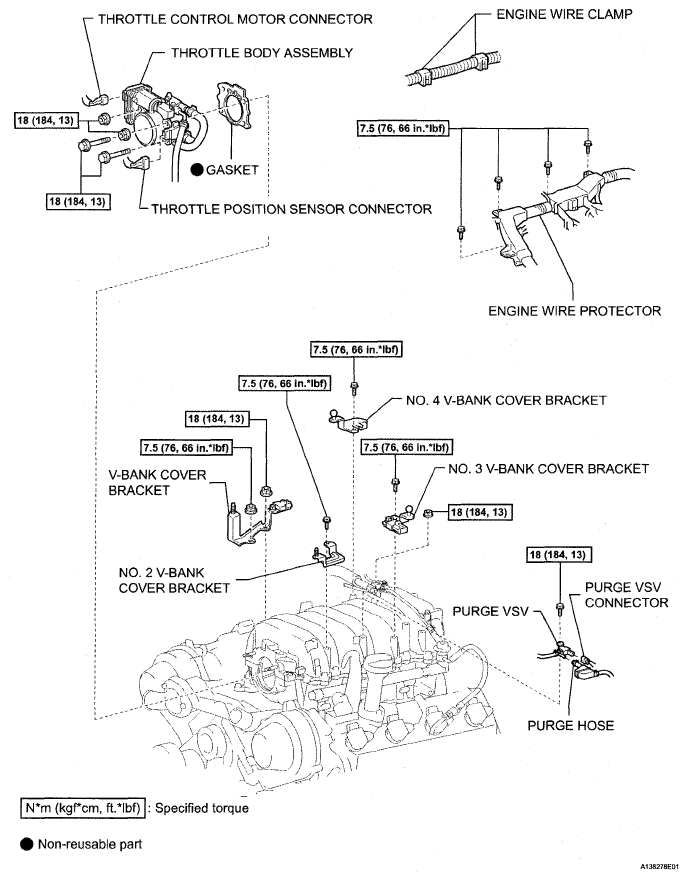

Fig 2: Cylinder Head Replacement Components With Torque Specifications (2 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

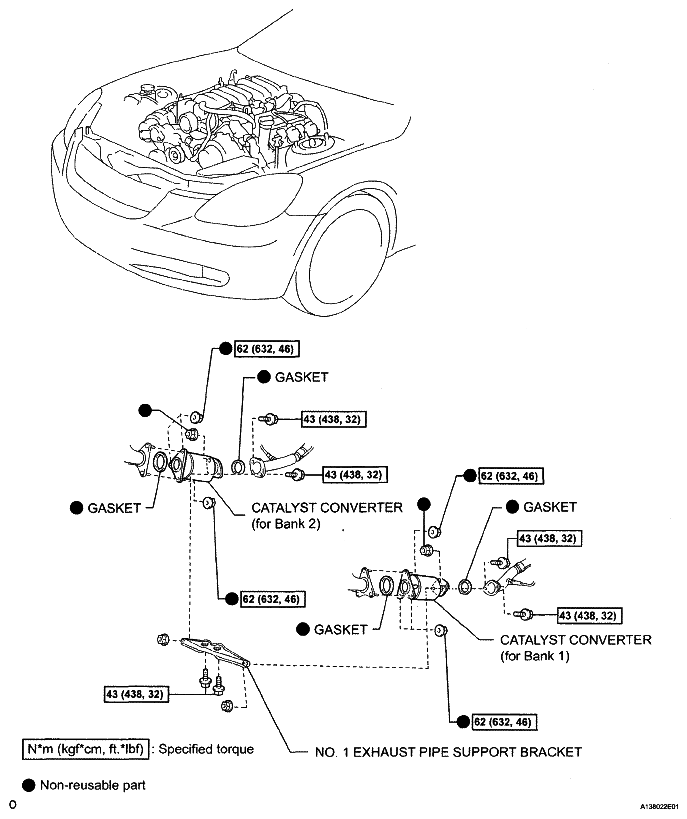

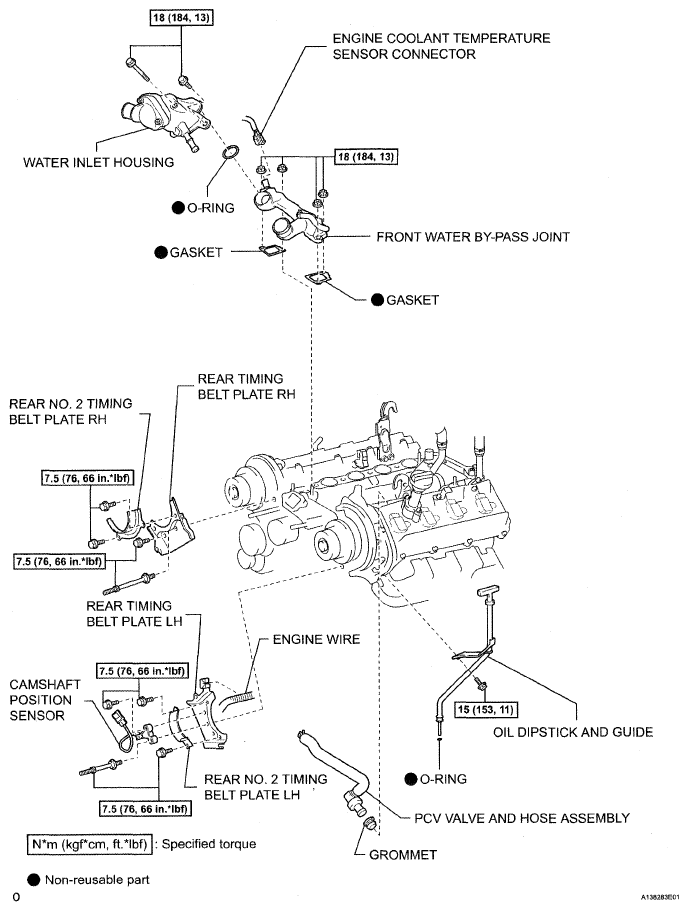

Fig 3: Cylinder Head Replacement Components With Torque Specifications (3 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

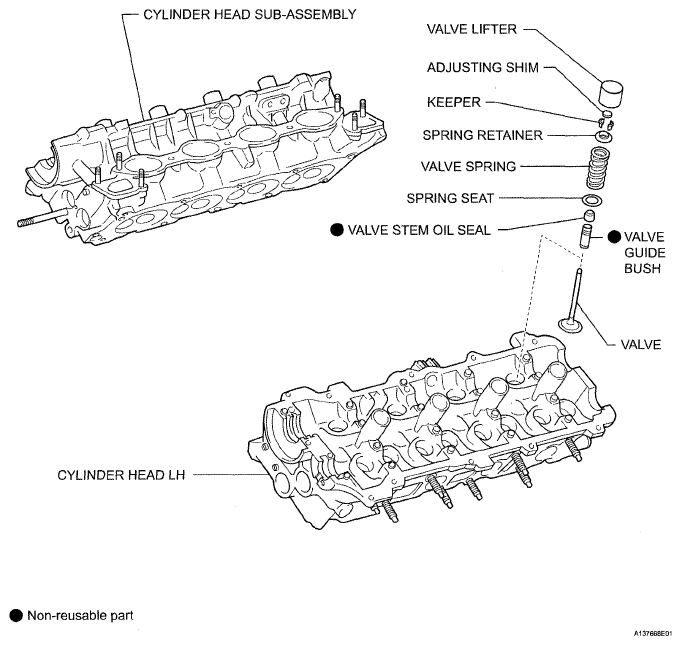

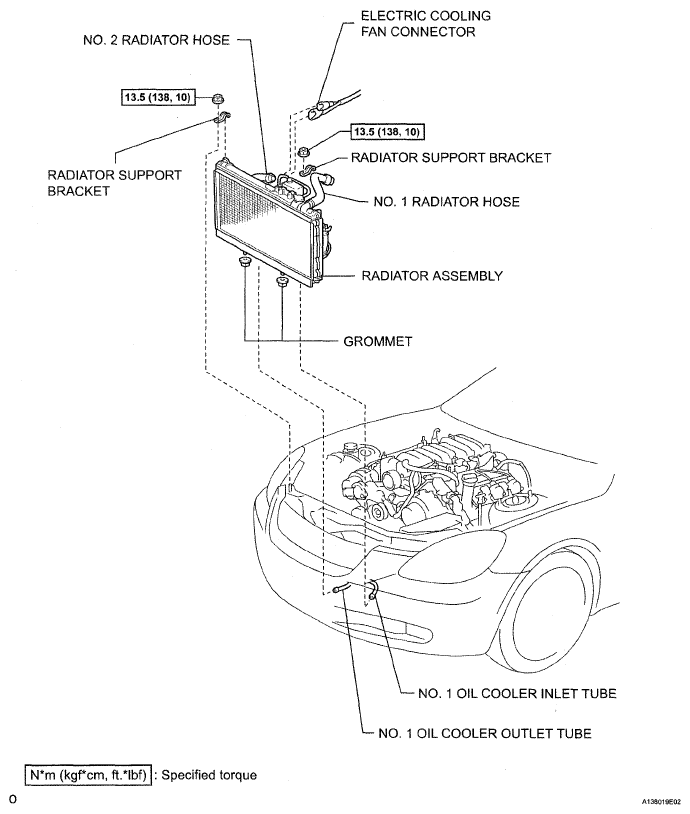

Fig 4: Cylinder Head Replacement Components With Torque Specifications (4 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

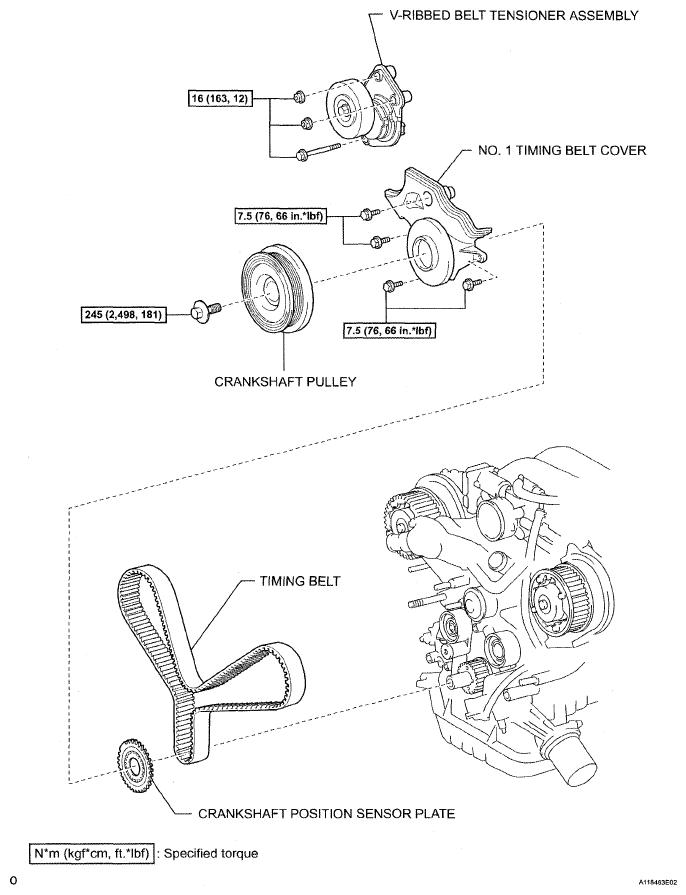

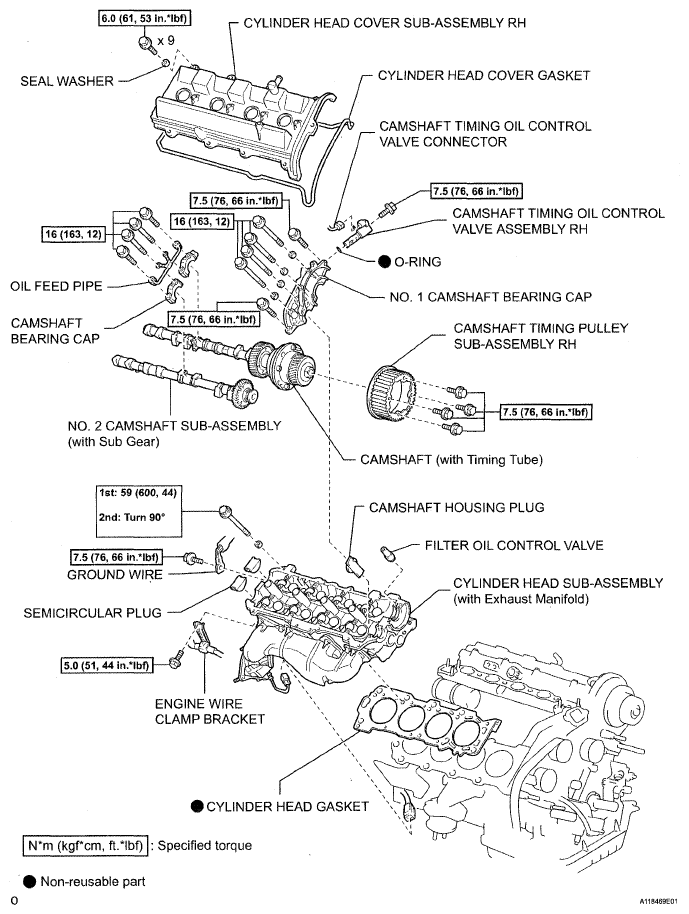

Fig 5: Cylinder Head Replacement Components With Torque Specifications (5 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

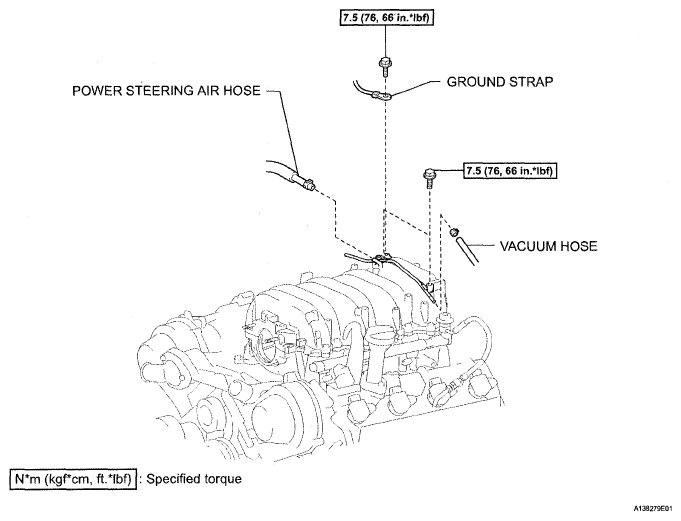

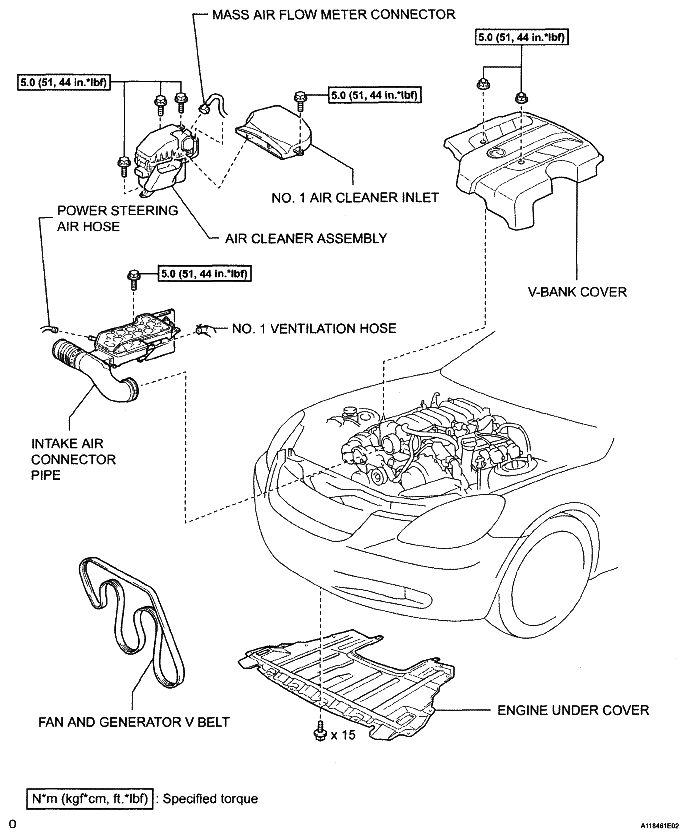

Fig 6: Cylinder Head Replacement Components With Torque Specifications (6 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

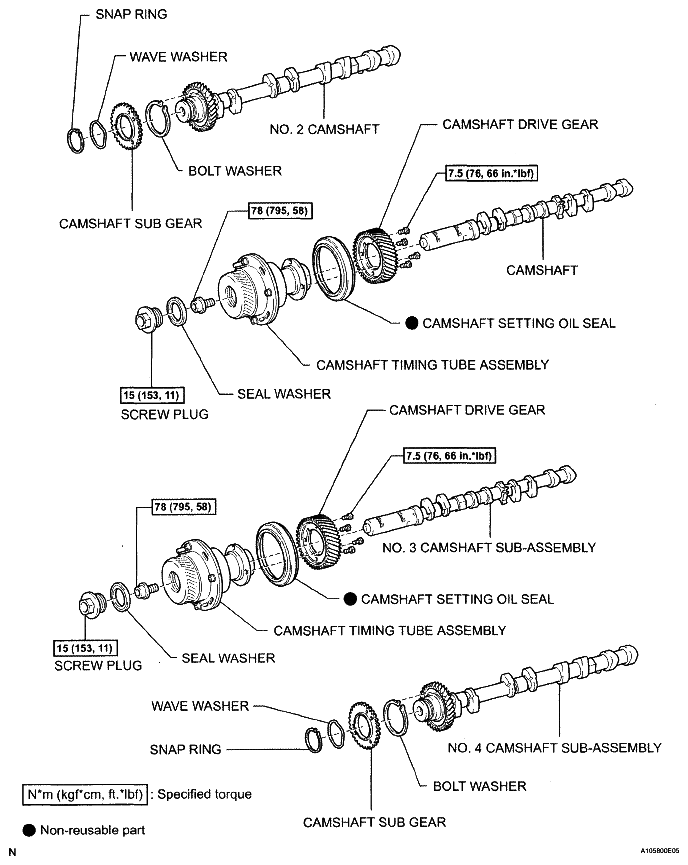

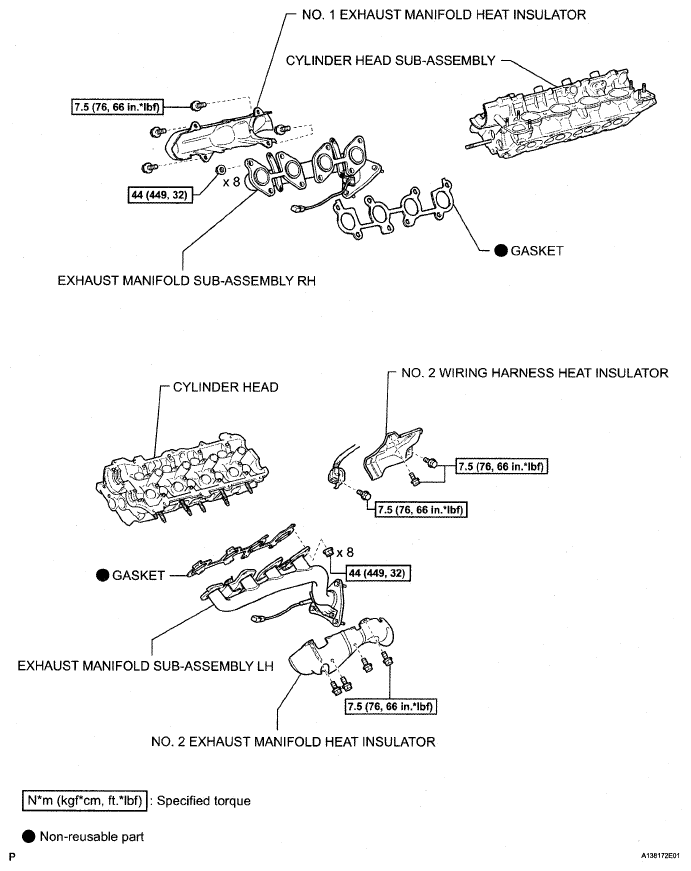

Fig 7: Cylinder Head Replacement Components With Torque Specifications (7 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

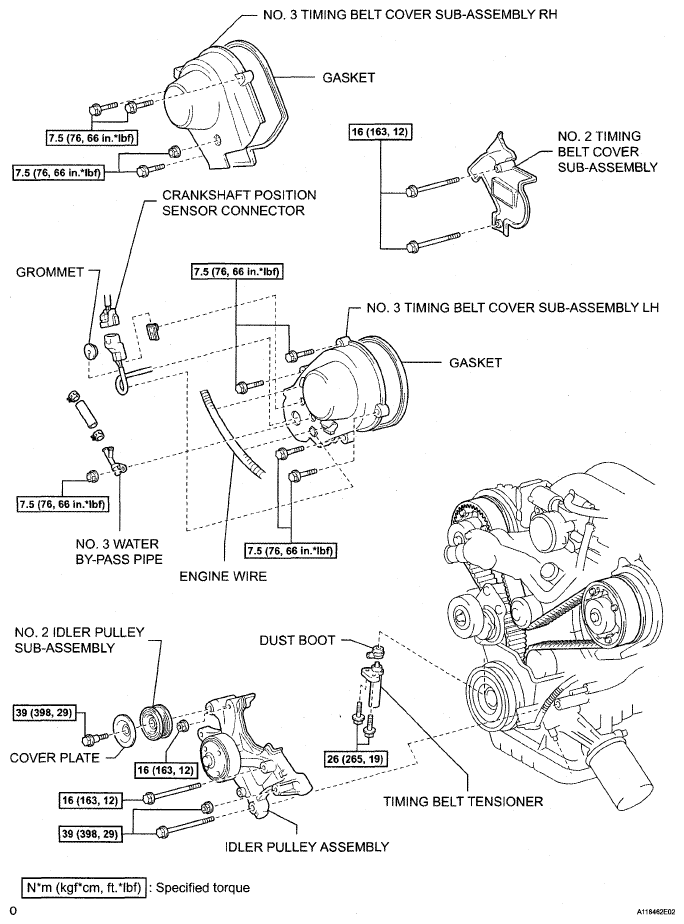

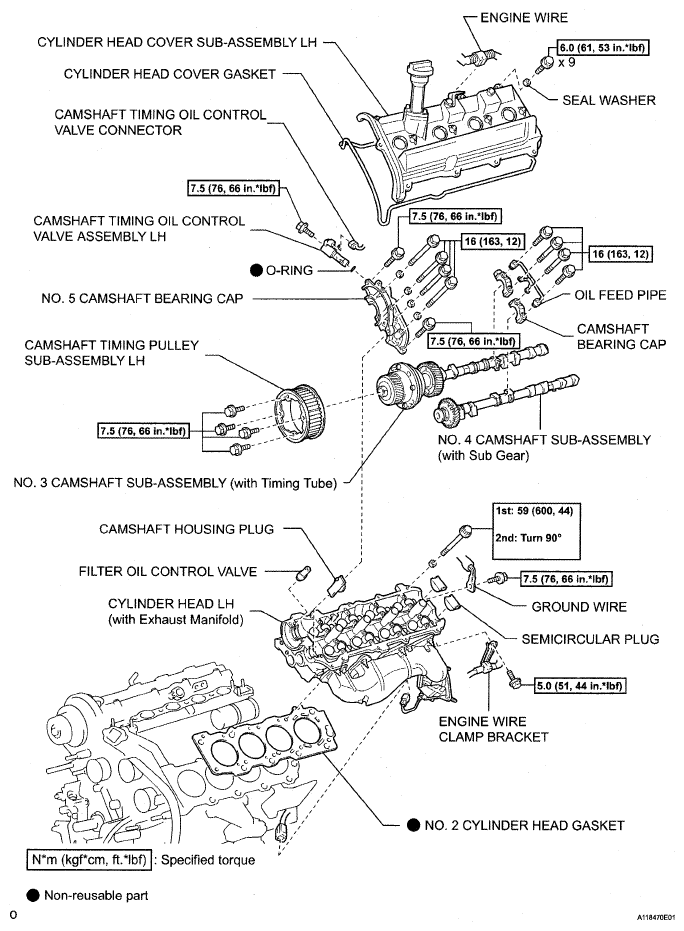

Fig 8: Cylinder Head Replacement Components With Torque Specifications (8 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Cylinder Head Replacement Components With Torque Specifications (9 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Cylinder Head Replacement Components With Torque Specifications (10 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Cylinder Head Replacement Components With Torque Specifications (11 Of 16)

Fig 12: Cylinder Head Replacement Components With Torque Specifications (12 Of 16)

Fig 13: Cylinder Head Replacement Components With Torque Specifications (13 Of 16)

Fig 14: Cylinder Head Replacement Components With Torque Specifications (14 Of 16)

Fig 15: Cylinder Head Replacement Components With Torque Specifications (15 Of 16)

Fig 16: Identifying Cylinder Head Components (16 Of 16)
