Diagnosis System

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. LIST OF OPERATION METHODS

    By operating the A/C control switches as shown in the diagram below, it is possible to enter the diagnostic check mode.

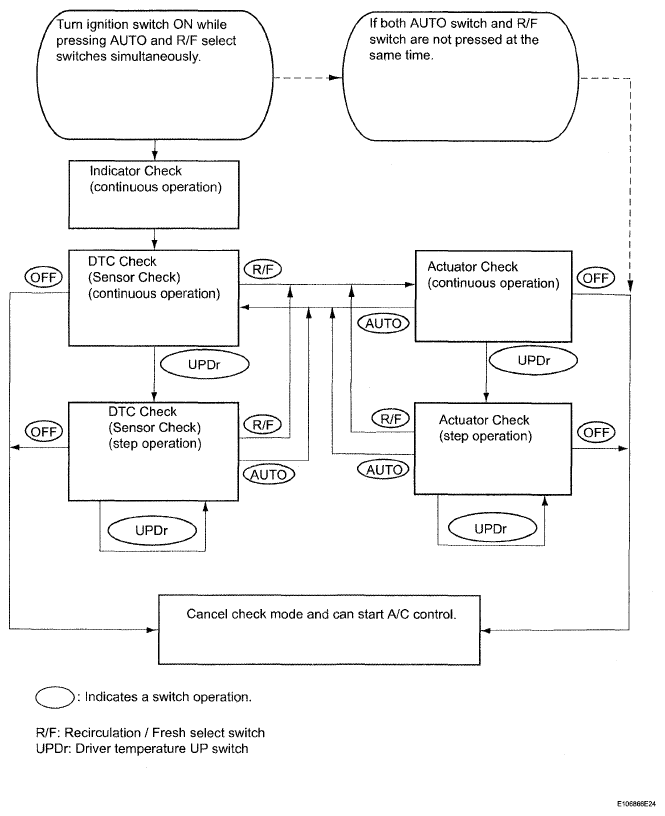

    Fig 1: DTC Check Mode Flow Chart
    G05291838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CHECK DLC3

    The ECM uses ISO 15765-4 for communication. The terminal arrangement of the DLC3 complies with ISO 15031-3 and matches the ISO 15765-4 format.

    Fig 2: Identifying DLC3 Connector Terminals (CANL And BAT)
    G05291839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CONNECTOR TERMINALS REFERENCE CHART

    Symbols (Terminal No.) Terminal Description Condition Specified Condition
    SIL (7) - SG (5) Bus "+" line During transmission Pulse generation
    BAT (16) - Body ground Battery positive Always 11 to 14 V
    CG (4) - Body ground Chassis ground Always Below 1 Ω
    SG (5) - Body ground Signal ground Always Below 1 Ω
    CANH (6) - CANL (14) CAN bus line Ignition switch OFF(1) 54 to 69 Ω
    CANH (6) - Battery positive (+) HIGH-level CAN bus line Ignition switch OFF(1) 200 Ω or higher
    CANH (6) - CG (4) HIGH-level CAN bus line Ignition switch OFF(1) 200 Ω or higher
    CANL (14) - Battery positive (+) LOW-level CAN bus line Ignition switch OFF(1) 6 kΩ or higher
    CANL (14) - CG (4) LOW-level CAN bus line Ignition switch OFF(1) 6 kΩ or higher
    NOTE:
    (1) Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors.

    If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.

    HINT:

    Connect the cable of the intelligent tester (with CAN VIM) to the DLC3, turn the ignition switch ON and attempt to use the tester. If the screen displays the message UNABLE TO CONNECT TO VEHICLE, there is a problem either with the vehicle or with the tester.

    • If communication is normal when the tester is connected to another vehicle, inspect the DLC3 of the original vehicle.
    • If communication is still not possible when the tester is connected to another vehicle, the problem is probably in the tester itself. Consult the Service Department listed in the tester's instruction manual.
      Fig 3: Connecting Cable Of Intelligent Tester To DLC3
      G05291840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
