Front Shock Absorber With Coil Spring: Installation

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

TEMPORARILY INSTALL FRONT SHOCK ABSORBER WITH COIL SPRING
1. Install a new front suspension support No. 1 to the shock absorber with coil spring.
2. Temporarily install the spring support reinforcement and shock absorber with coil spring with the 3 nuts.

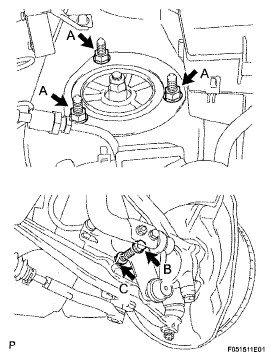

  Fig 1: Locating Spring Support Reinforcement Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Temporarily install the shock absorber to the shock absorber bracket with the bolt and nut.
  HINT:

  After stabilizing the suspension, tighten the bolt.

  Fig 2: Locating Shock Absorber Bracket Bolt And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEMPORARILY INSTALL STEERING KNUCKLE LH
1. Connect the front suspension upper arm LH to the steering knuckle LH.
2. Temporarily install the nut.
  HINT:

  After stabilizing the suspension, tighten the nut.
CONNECT FRONT SPEED SENSOR LH
1. Connect the speed sensor wire with the bolt.
  Torque: 5.0 N*m (55 kgf*cm, 48 in.*lbf)

  Fig 3: Locating Steering Knuckle LH Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STABILIZE SUSPENSION
1. Lower the vehicle.
2. Press down on the vehicle several times to stabilize the suspension.
TIGHTEN FRONT SHOCK ABSORBER WITH COIL SPRING
1. Tighten the 3 nuts labeled A.
  Torque: 56 N*m (570 kgf*cm, 41 ft.*lbf)
2. Fix the nut labeled C and tighten the bolt labeled B.
  Torque: 157 N*m (1,600 kgf*cm, 116 ft.*lbf)

  NOTE: Do not tighten nut labeled C.
TIGHTEN STEERING KNUCKLE LH
1. Tighten the nut.
  Torque: 87 N*m (890 kgf*cm, 64 ft.*lbf)
2. Install a new clip.
INSTALL FRONT WHEEL
1. Install the wheel with the 5 nuts.
INSTALL WHEEL HUB ORNAMENT SUB-ASSEMBLY
1. Install the ornament with the 10 bolts.

  Fig 4: Locating Nuts And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
1. Inspect and adjust the front wheel alignment (see ADJUSTMENT ).
