Power Seat for Driver's Seat with Memory: Notes

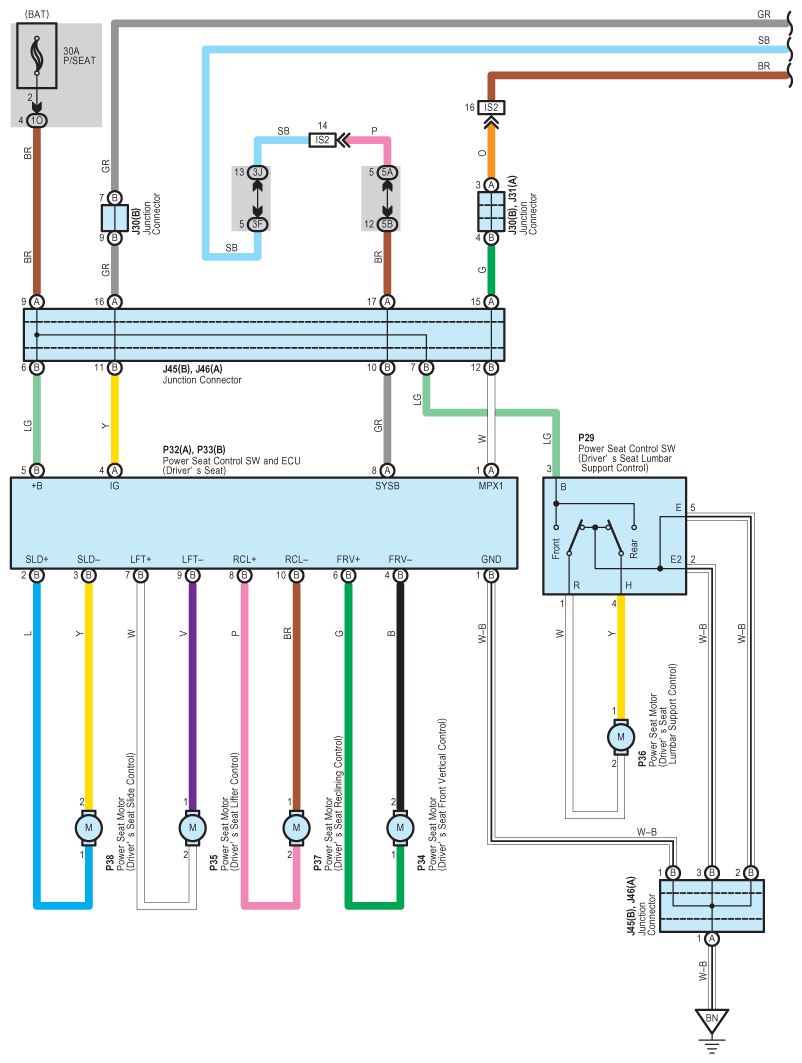

Fig 1: Power Seat For Driver's Seat With Memory - Circuit Diagram (1 Of 4)
G07609993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

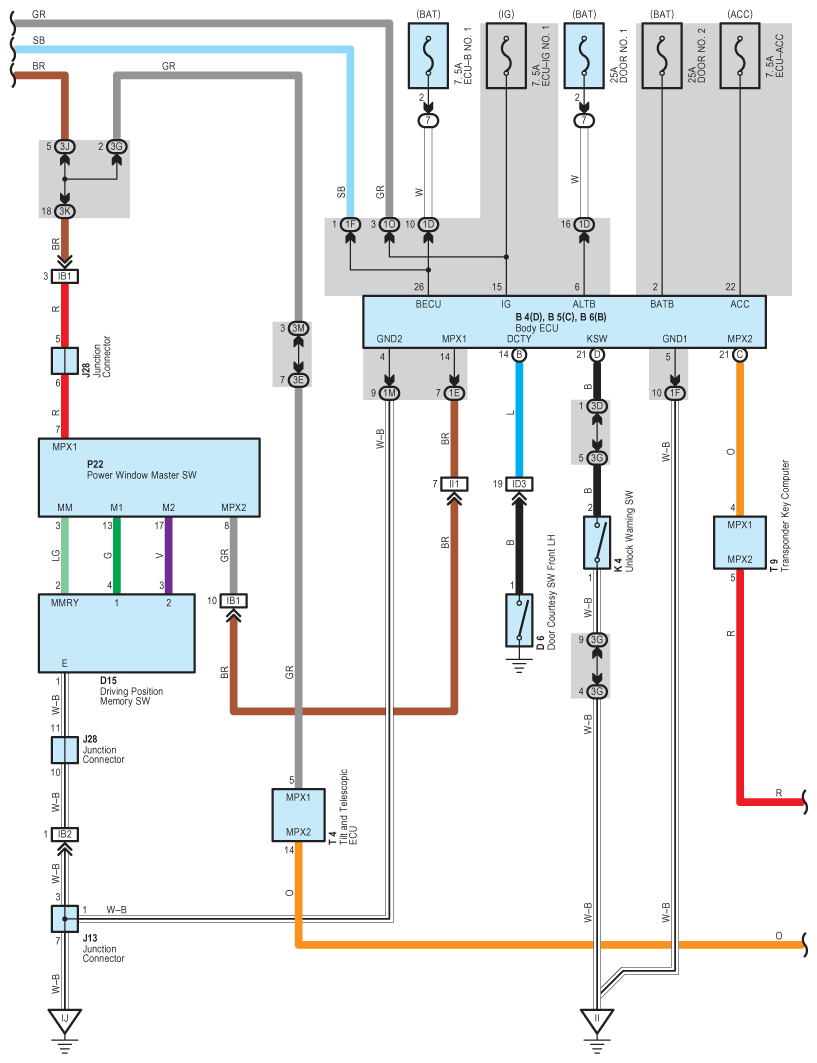

Fig 2: Power Seat For Driver's Seat With Memory - Circuit Diagram (2 Of 4)
G07609994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

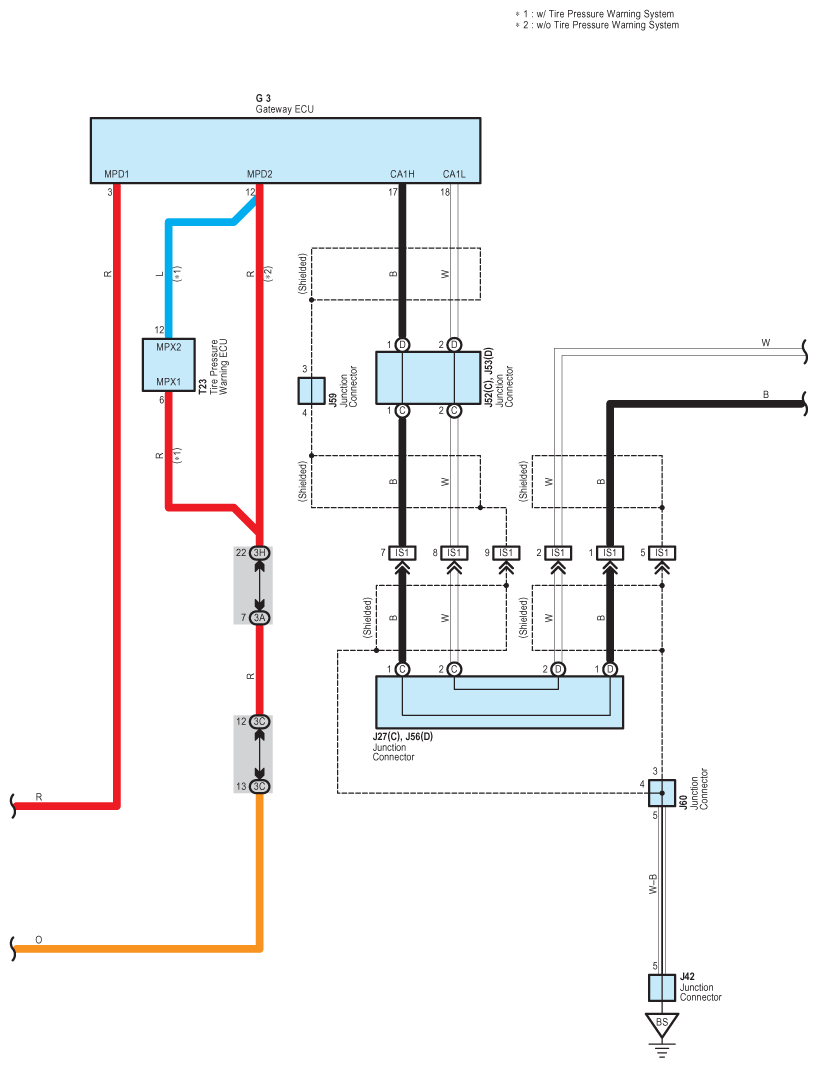

Fig 3: Power Seat For Driver's Seat With Memory - Circuit Diagram (3 Of 4)
G07609995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

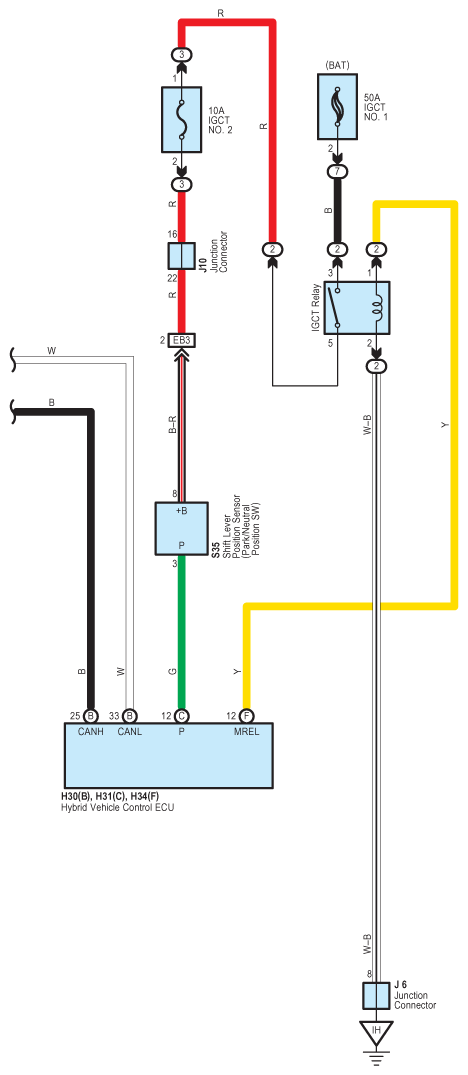

Fig 4: Power Seat For Driver's Seat With Memory - Circuit Diagram (4 Of 4)
G07609996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
