RX 400h AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector List
>>
In-Line Connector End View (IS2)
In-Line Connector End View (IS2)

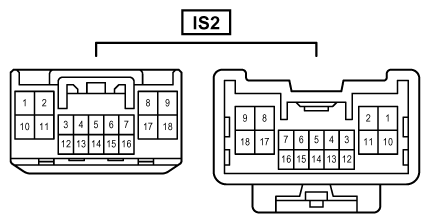

Fig 1: In-Line Connector End View (IS2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
