DTC Check / Clear

CHECK DTC
1. Turn the power switch OFF
2. Connect the Intelligent tester or Techstream to the DLC3.
3. Turn the power switch ON (IG) and the tester ON.
4. Enter the following menus.

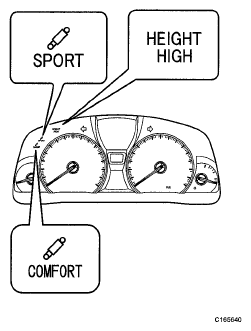

  Fig 1: Identifying Height Control Indicator Light And Absorber Control Indicator Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Intelligent tester - Select" DIAGNOSIS / OBD/ MOBD / CHASSIS / AIR SUSPENSION / DTC INFO
  2. Techstream - Select Chassis / Air suspension / Trouble Codes
5. Read the DTCs by following the prompts on the tester screen.
  HINT:

  Refer to the Intelligent tester or Techstream operator's manual for further details
6. Refer to the "DIAGNOSTIC TROUBLE CODE CHART " for DTC information (see )
CLEAR DTC
HINT:

After repairing the malfunctions, clear the DTCs
1. Turn the power switch OFF
2. Connect the Intelligent tester or Techstream to the DLC3.
3. Turn the power switch ON (IG) and the tester ON
4. Enter the following menus
  1. Intelligent tester - Select: DIAGNOSIS / OBD/ MOBD / CHASSIS / AIR SUSPENSION / DTC INFO
  2. Techstream - Select. Chassis / Air suspension / Trouble Codes
5. Erase the DTCs by following the prompts on the tester screen
  HINT:

  Refer to the Intelligent tester or Techstream operator's manual for further details
