Front Seat Outer Belt Assembly With PRETENSIONER: Components

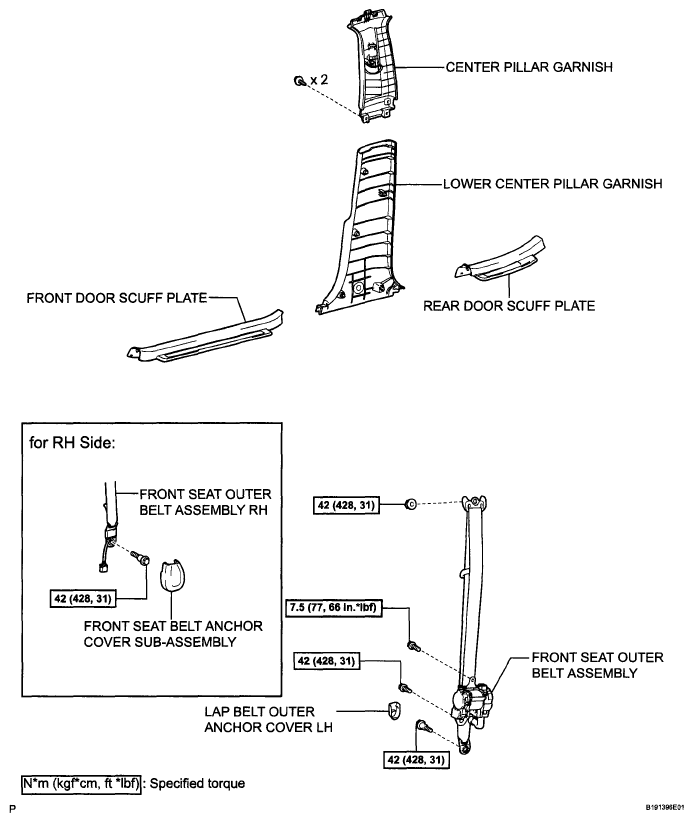

Fig 1: Front Seat Outer Belt Assembly Replacement Components With Torque Specifications

G05755132

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
