Front Axle Hub: Components

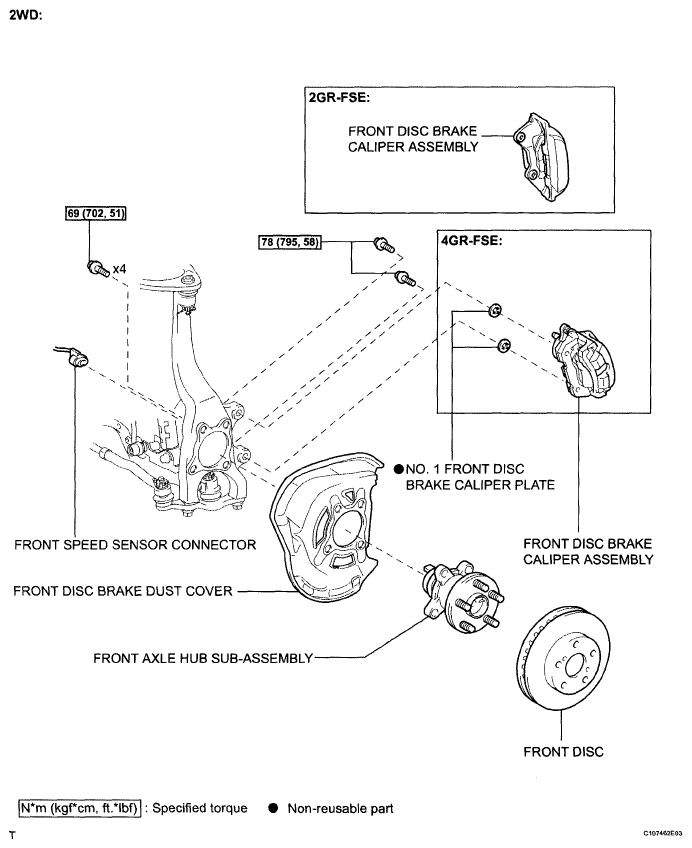

Fig 1: Identifying Front Axle Hub Replacement Components With Torque Specification (1 Of 2)
G05830338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

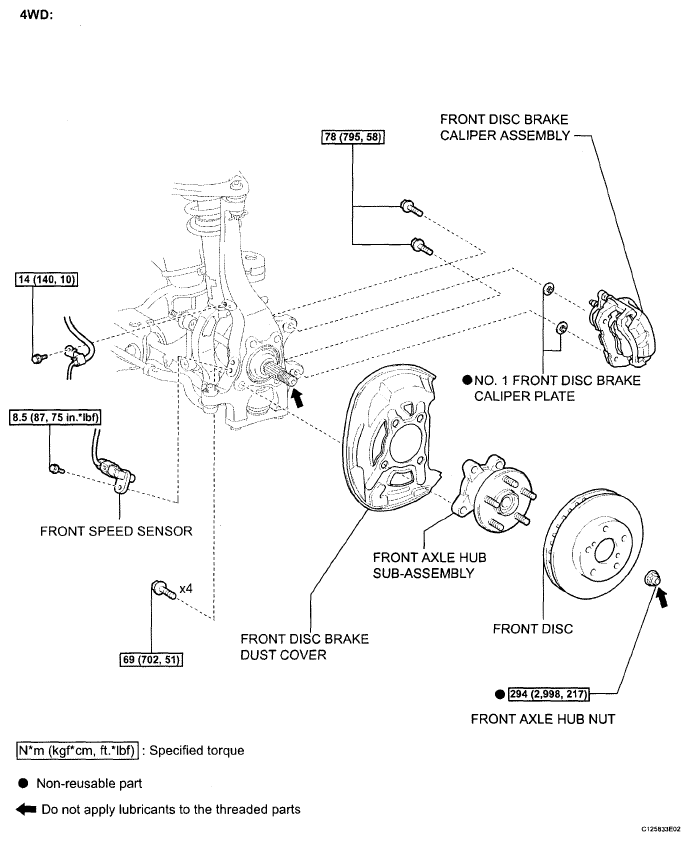

Fig 2: Identifying Front Axle Hub Replacement Components With Torque Specification (2 Of 2)
G05830339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
